EUPHORIA FX90.4

EUPHORIA

(FX90.4) AMPLIFIER (4 X 90 W MAX-CLASS A/B 4-CHANNEL)

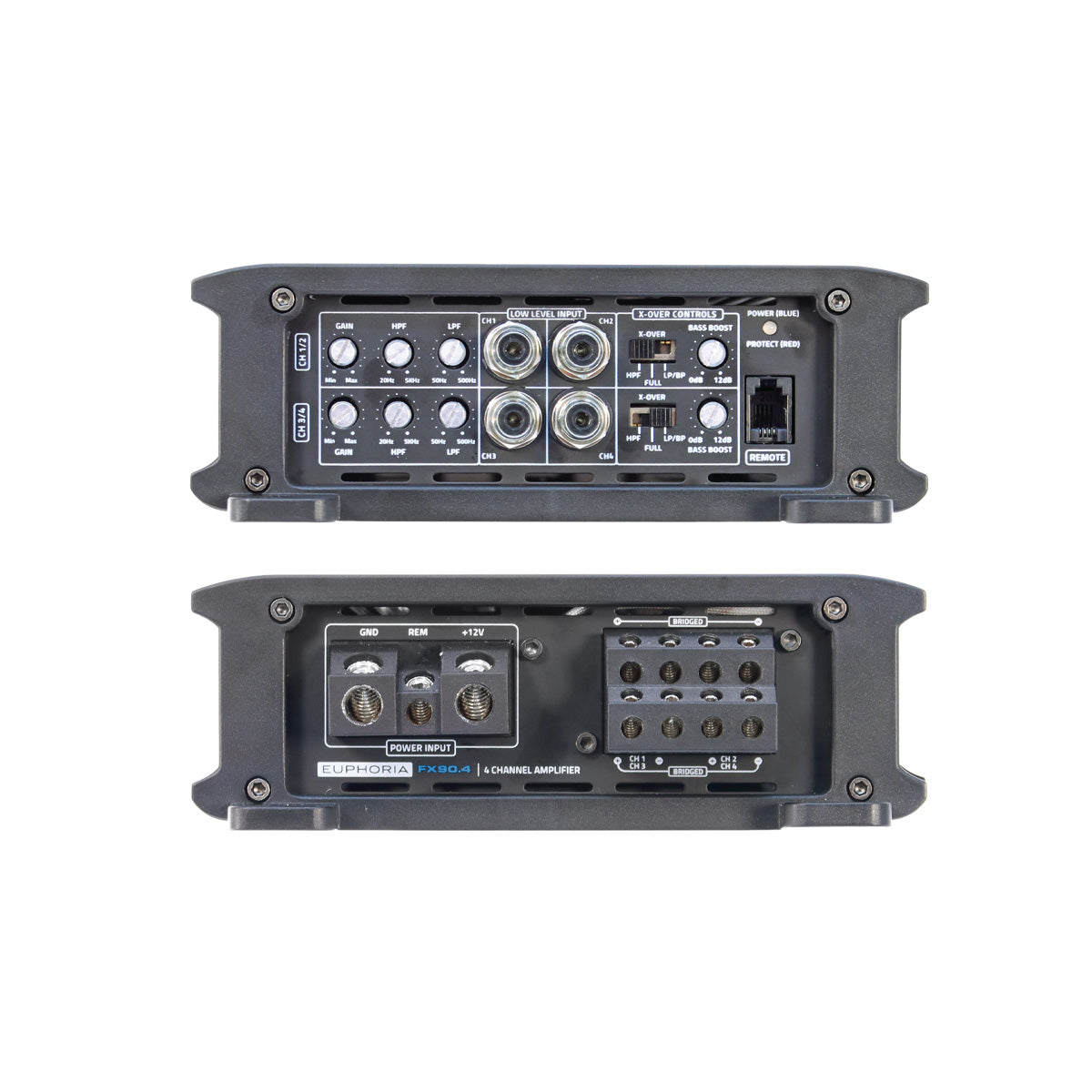

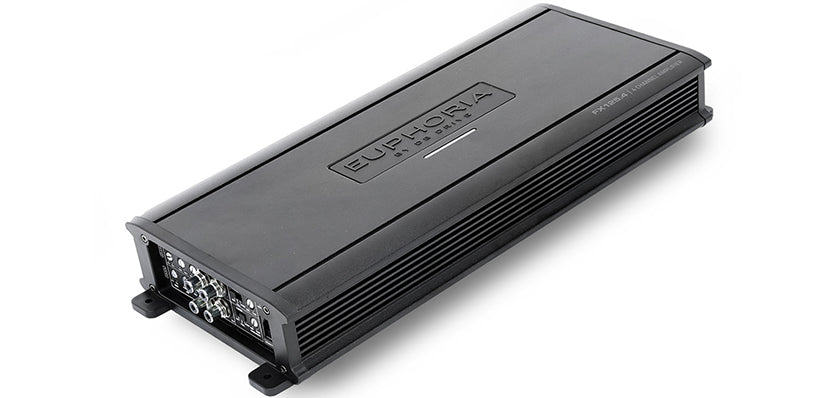

The DB Drive Euphoria 4 channel amplifiers (FX90.4 and FX125.4) feature a 12db Slope crossover network. Channels 1 and 2 can be used in the High pass setting or full range and channels 3 and 4 feature a selectable 3-way crossover system that can be used in High pass, Bandpass, or Low Pass settings.

FEATURES:

• Class A/B 4-Channel Amplifier
• Rated Power @ 14.4 Volts : 4 x 90 Watts @ 4 ohm
• Rated Power @ 14.4 Volts : 4 x 180 Watts @ 2 ohm
• Rated Power @ 14.4 Volts : 2 x 360 Watts @ 4 ohm
• Frequency Response : 10Hz ~ 25KHz
• S/N Ratio : 105
• Low Level Input : 6V - 0.2V
• Variable Low Pass Filter : 20Hz ~ 5KHz
• Variable Subsonic Filter : 50Hz ~ 500Hz
• 12dB Variable Bass Boost @ 45Hz
• 4 Layer Double Sided PCB
• 4 Gauge Power Wire Input
• Working Voltage : 12 ~ 16 volts
• LED On Status Indicator Light
• Optional Bass Remote Available

SPECIFICATIONS:

• Rated Power @ 14.4 Volts :  4 x90 Watts @ 4Ω
• Dynamic Power Handling :  4 x 180 Watts @ 2Ω
• Nominal Power Handling :  2 x 360 Watts @ 4Ω

DIMENSIONS:

• Length: 13.25" / 336.55mm
• Width: 6.25" / 158.75
• Height: 2.25" / 57.15mm
