EUPHORIA FM100.4
- Description
EUPHORIA

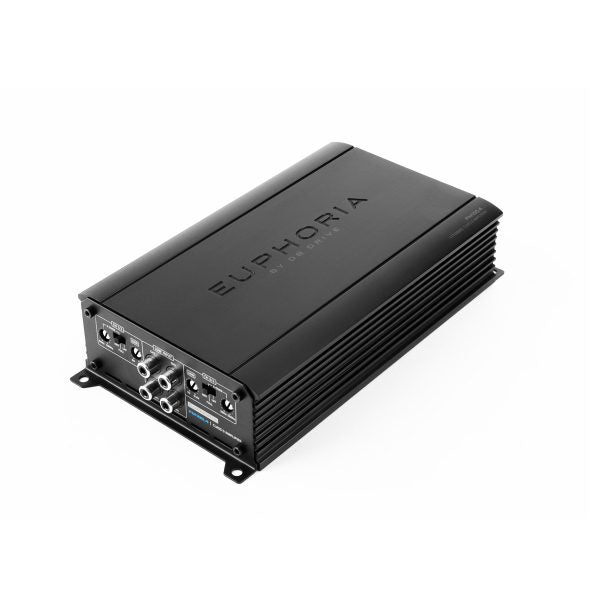

(FM100.4) MINI AMPLIFIER (4 X 100W MAX-FULL RANGE CLASS D 4-CHANNEL)
The FM100.4 and FM75.4 are equipped with a Selectable HPF/FULL/LPF crossover network.
SPECIFICATIONS:
- 4 Layer Double Sided PCB
- 4 Gauge Power Wire Input
- Remote Bass Control Included
- Class D Full Range 4-Channel Amplifier
- Rated Power @ 14.4 Volts:
- Frequency Response: 10Hz - 25KHz
- S/N Ratio: 105
- Low Level Input: 6V - 0.2V

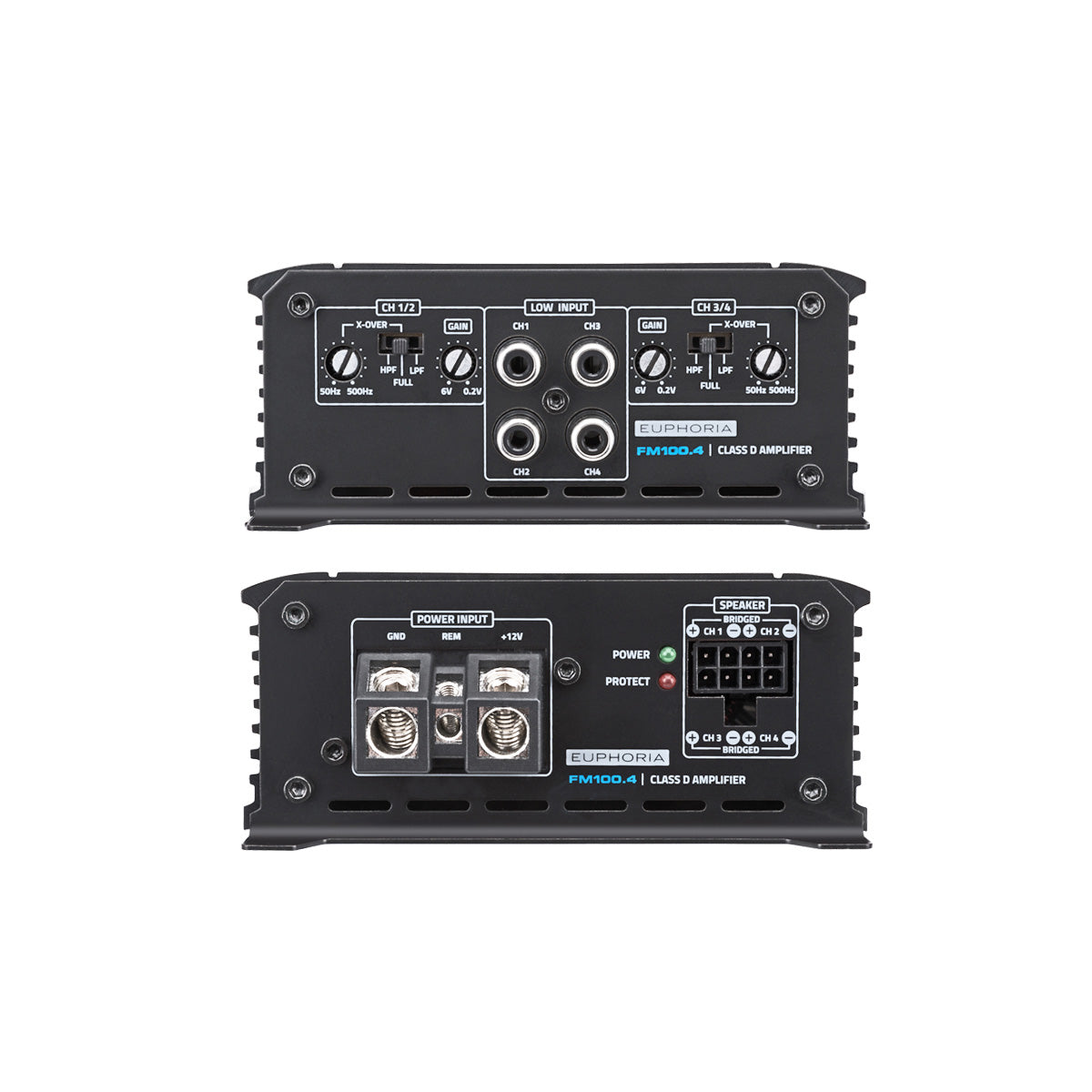

- Selectable Crossover: HPF / FULL / LPF
- Variable High Pass Filter: 50Hz - 500Hz
- Variable Low Pass Filter: 50Hz - 500Hz
- Working Voltage: 12 - 16 Volts
- 4 Layer Double Sided PCB
- 4 Gauge Power Wire Input
DIMENSIONS:
- Length: 7.87” / 199.89mm
- Width: 4.72” / 119.88
- Height: 1.96” / 49.78mm
