EUPHORIA EDSP31v2

EUPHORIA

(EDSP31v2) DIGITAL SOUND PROCESSOR V2

 FEATURES:

• DSP settings and adjustments made via laptop or PC through USB port
• 6 assignable inputs
• Inputs: 6 RCA preamp, 3.5mm Aux, 1 optical SPDIF
• 8 assignable preamp outputs (8 volts)
• Channel settings can be separate or linked together
• Selectable crossover slopes (6, 12, 18, 24, 30, 36, 42, 48 dB/octave)
• 31 band graphic EQ with fine tuning
• Adjustable high, band-pass or low-pass filters (20KHz-20Hz)
• Adjustable Time alignment
• Adjustable Q-Factor
• Phase adjustment: switchable 0/180 degrees on front, rear and sub channels
• WiFi interface compatible, interface not included
• Includes USB cable and program disk

SPECIFICATIONS:

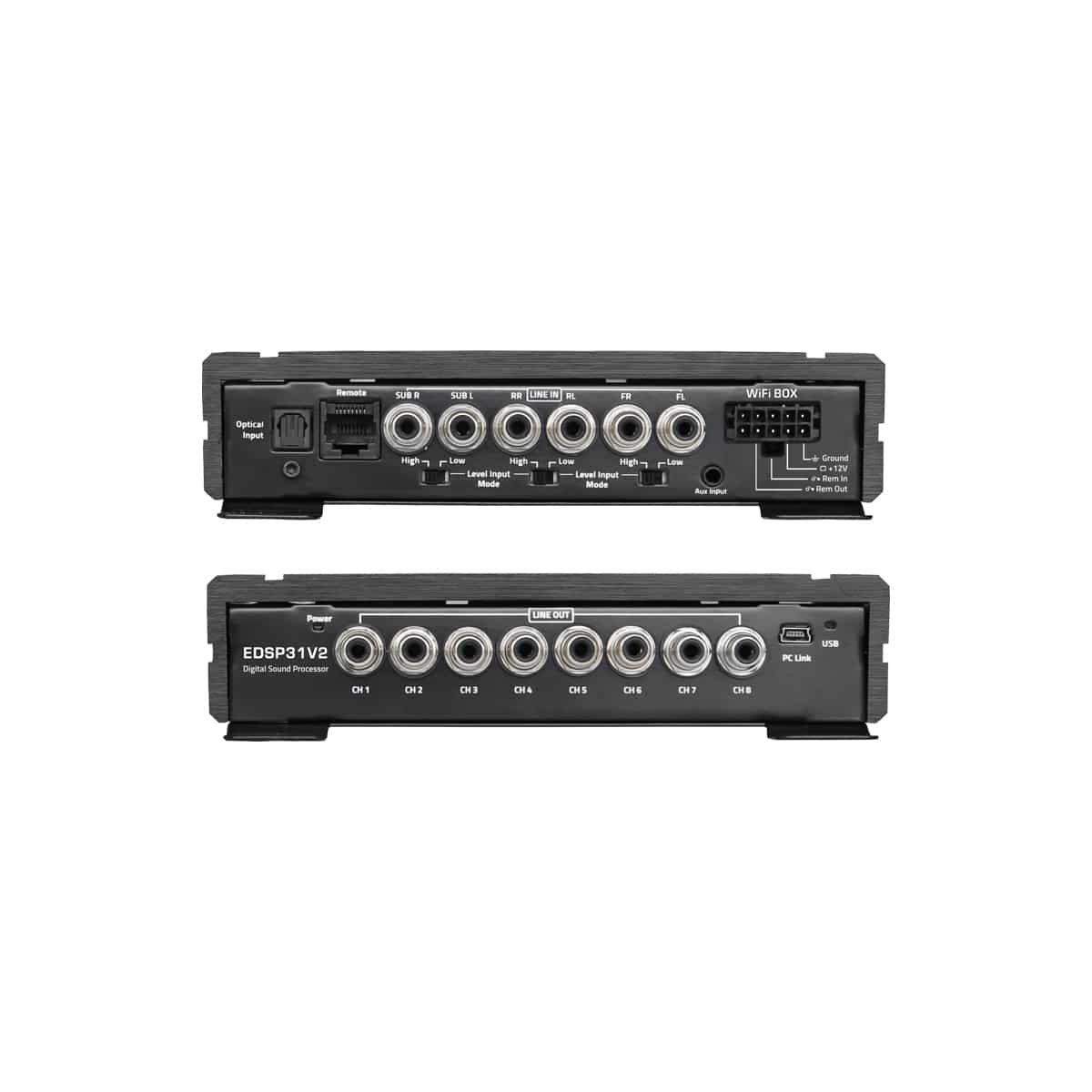

• Analog Inputs 6 Ch. RCA level in (FR-FL , RR-LR, Sub R, Sub L)
• Aux Input 3.5mm unbalanced input (Selectable)
• Toslink Input Digital
• Input Sensitivity (Low Level) 28mV - 8V RMS (adjustable per channel independently)
• WiFi interface compatible, interface not included
• THD+N ratio @ 1KHz, 1V RMS Output 0.009%
• Outputs 8 Channels RCA ( Function adjustable per channel independently)
• Output Voltage 6 Volts
• Input Impedance (RCA) 22K Ohms
• Frequency Response 10Hz - 20 kHz
• S/N Ratio @ A weighted Front: 98dB , Rear: 95dB , Sub: 100dB
• Equalization 31 bands
• User-Set Equalization Infinite amount stored on PC hard drive
• Crossovers H/P , BP , LP selectable
• X-Over Slopes 6dB, 12dB, 18dB, 24dB, 30dB, 42dB, 48dB
• X-Over Mode Butterworth, Linkwitz-Riley, Bessel
• Front 1 20Hz - 20KHz
• Front 2 20Hz - 20KHz
• Rear 20Hz - 20KHz
• Sub 20Hz - 20KHz
• Sub-sonic 20Hz - 20KHz
• Phase Shift 0* - 180* (adjustable per channel independently)
• Time Delay (Front, Rear) 0 - 5ms per channel (L/R separate)
• Step 0.1ms: 3.43 cm / 1.4 inch
• Distance 0 - 171.5 cm / 0 - 67.5 inch
