EUPHORIA E6

EUPHORIA

(E6) COMPONENT SYSTEM (6.5" - 75W RMS)

 FEATURES:

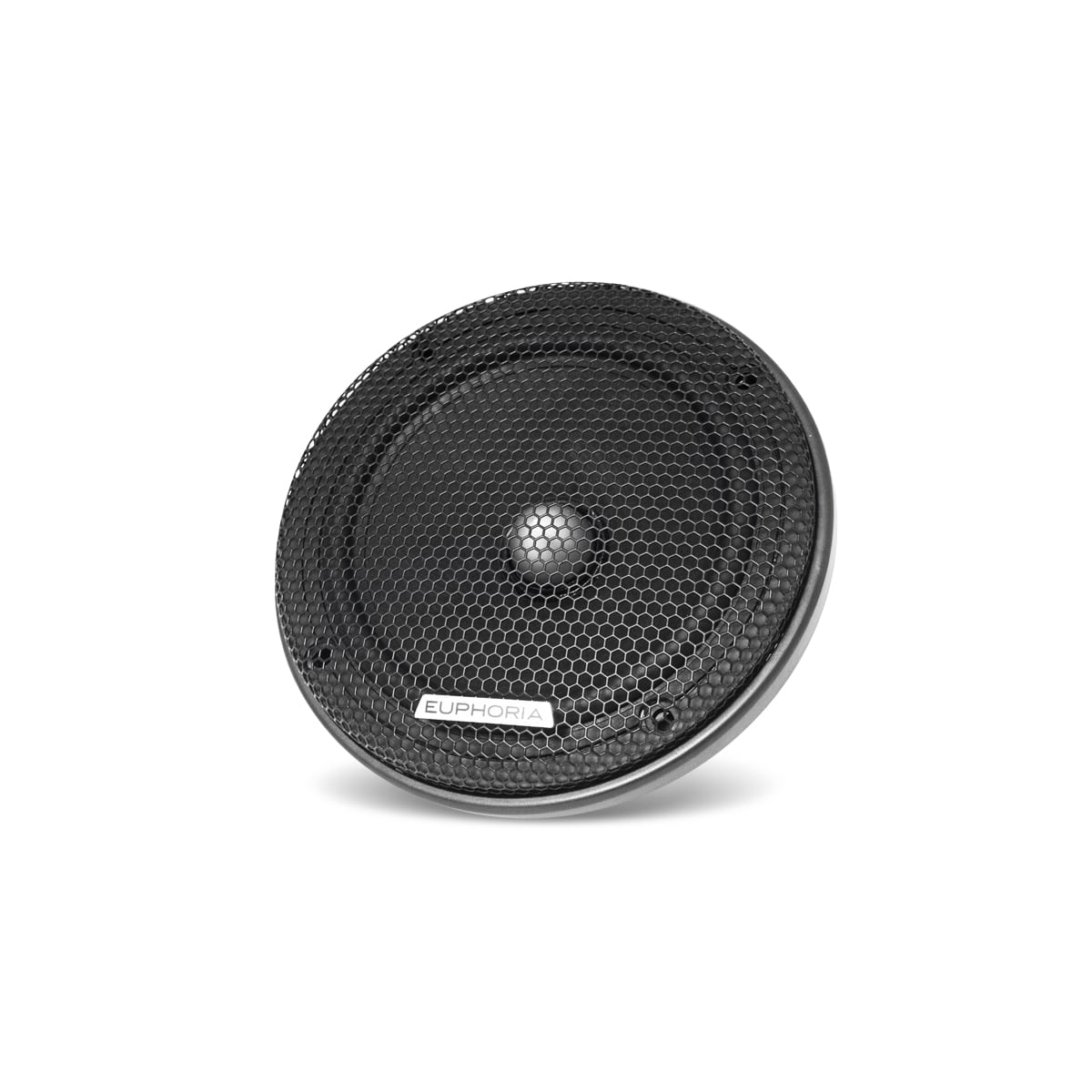

• 6.5″ 2-Way Component System

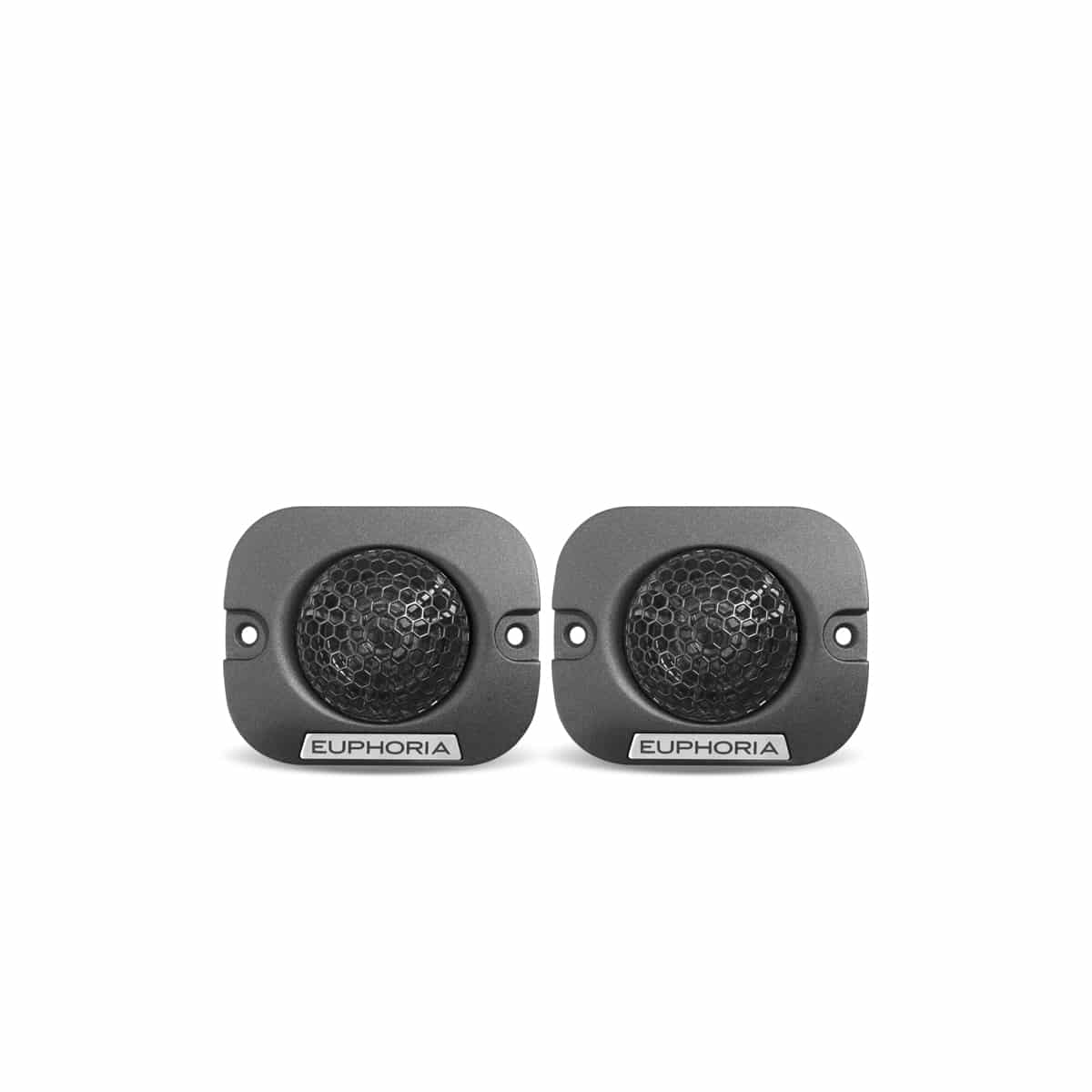

• ETW-1 Silk Dome Tweeter
• Dampened Aluminum Alloy Chassis
• High Energy N40 Neodymium Magnet
• Under Diaphragm Dampening
• Low Frequency Rear Resonance Chamber
• Canted Bottom Back Wave Deflector

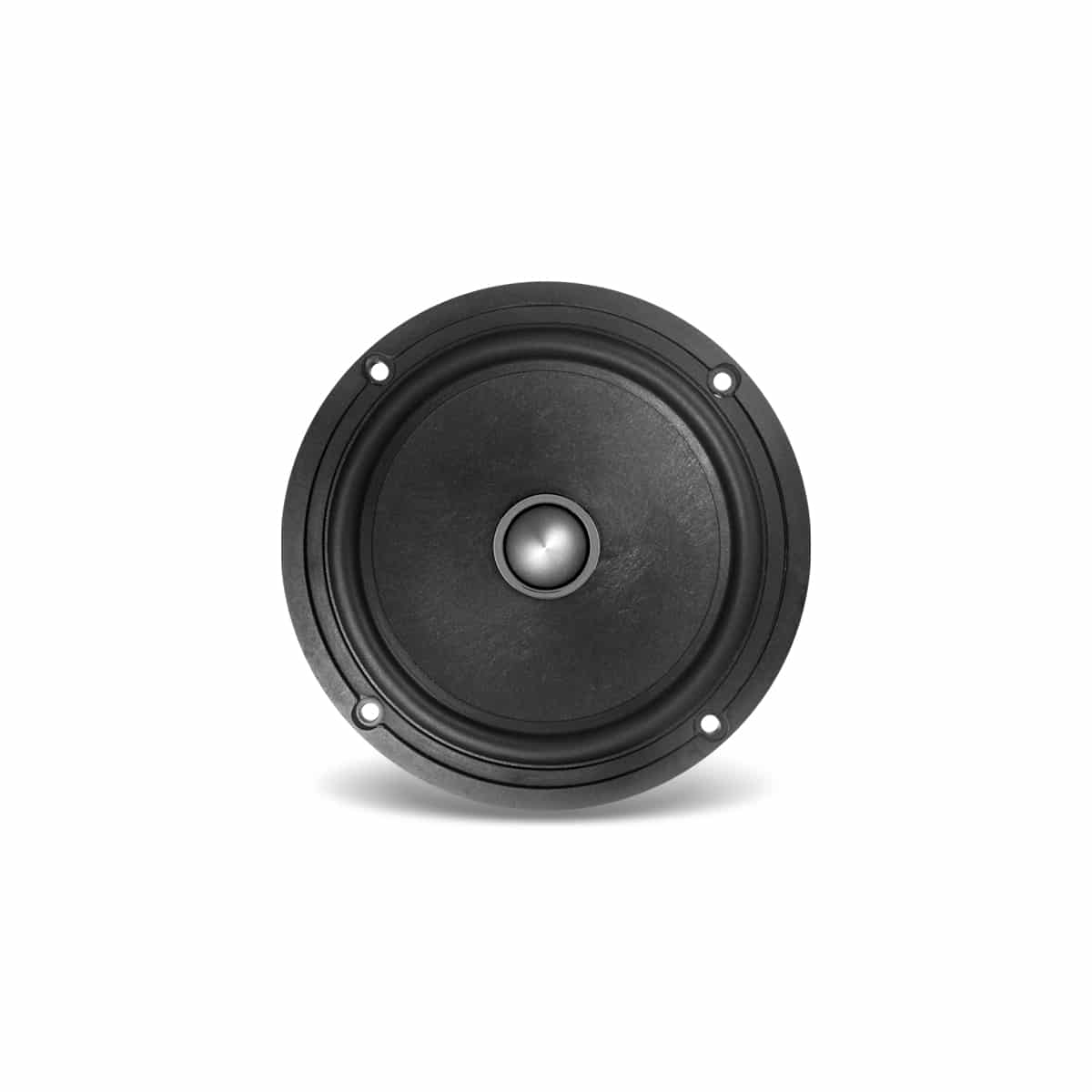

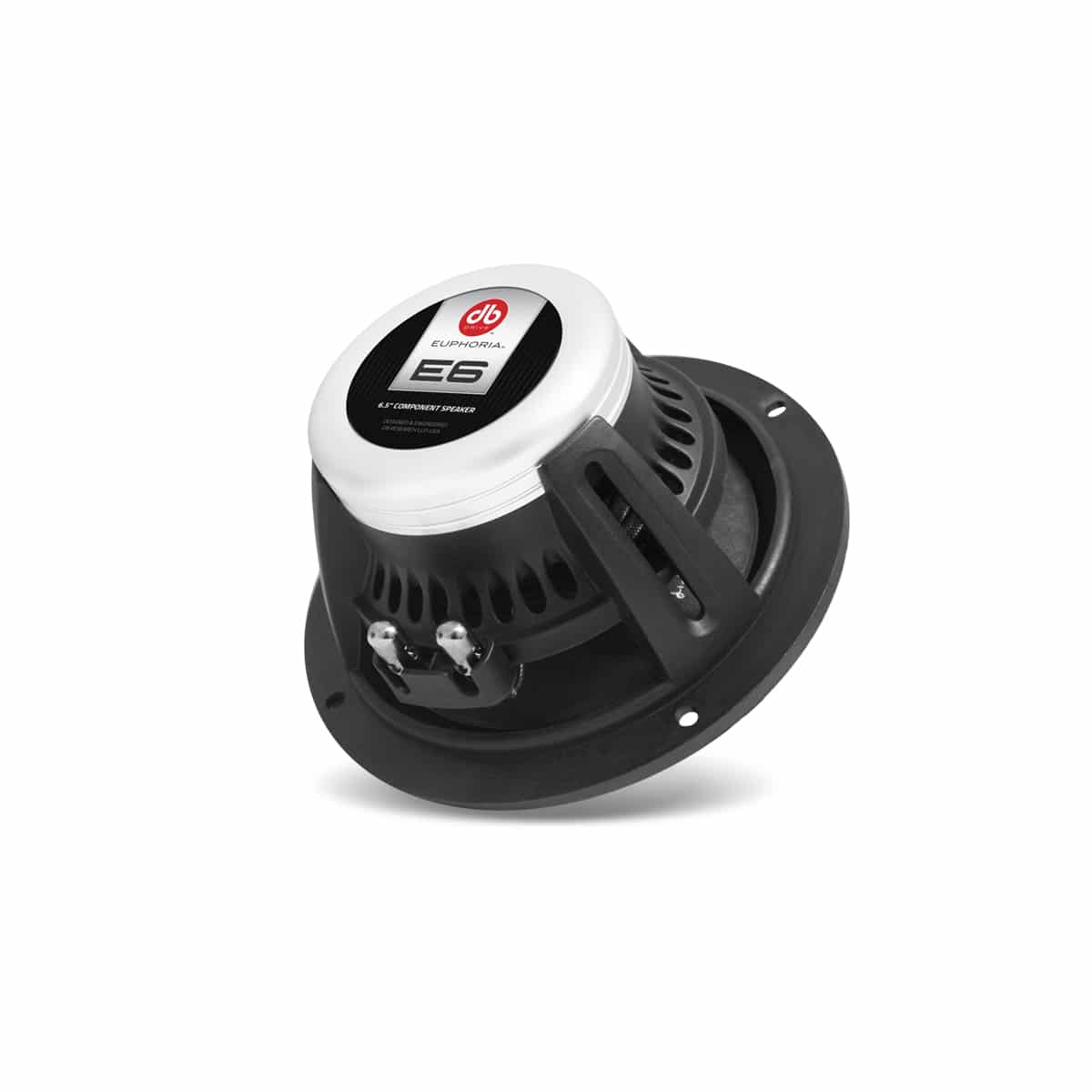

• E6 6.5" Midrange Driver
• Polycarbonate Non-Magnetic Frame Structure
• Radial Frame Venting
• Kraft Pulp Wool Mixed Paper Cone
• Soft Fillet Roll NB UV Resistant Surround
• 30.5mm CCAW Kapton Former
• 10mm Extended Gap Depth
• Barium Ferrite Push Magnet
• Active Induction Copper Modulation Pole Cap
• Reverse EMF Bucking Neo Magnet

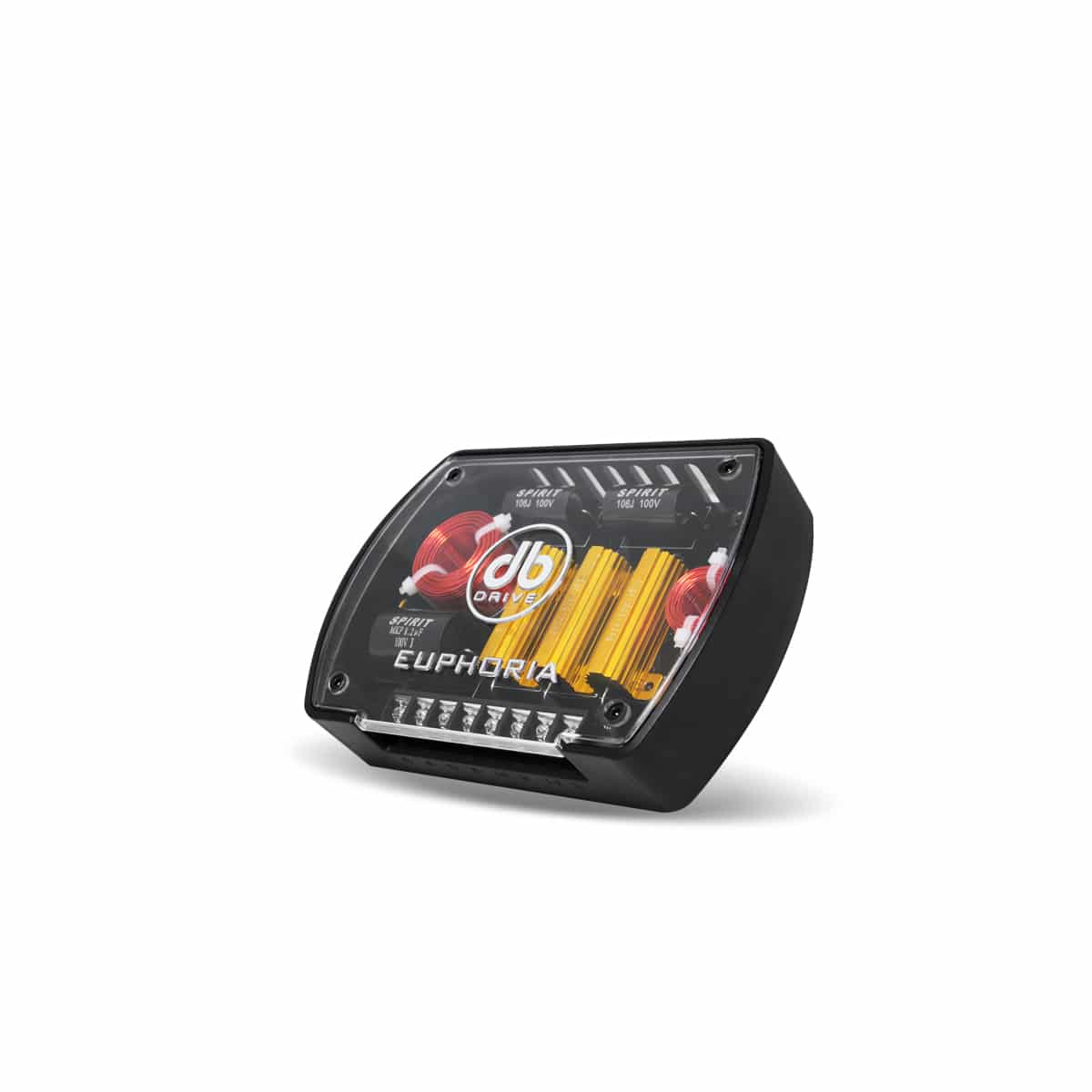

• Audiophile Grade 2-Way Passive Crossover System
• High Current Pure Copper Air Core Coil Inductors
• Metalized Polypropylene Capacitors
• Aluminum Chassis Wire-Wounds Non-Inductive Resistors
• 3 Position Adjustable Tweeter Attenuation
• Chassis Dimensions H x W: 68.05mm x 82.04mm / 2.67" x 3.23"
• Mounting Depth: 29.57mm/1.16"
• Cutout Diameter: 56.40mm/2.22"
• Frame Diameter: 160mm / 6.29"
• Mounting Depth: 75mm / 2.95"
• Cutout Diameter: 143mm / 5.62"
• Width: 75mm / 2.95"
• Height: 125mm / 4.92"
• Depth: 42.5mm / 1.67"
