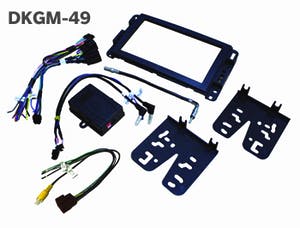

CRUX DKGM-49

CRUX (DKGM-49) RADIO REPLACEMENT W/ SWC RETENTION AND DASH KIT FOR GM LAN 29 BIT VEHICLES 2006-2015

The CRUX DKGM-49 is a premium interface for select General Motors LAN 29-Bit Vehicles. It facilitates the integration of an after-market radio to fully retain factory features in GM LAN 29-Bit vehicles with Bose Amplified and Non-Amplified Systems. It also allows for a dash replacement kit. This enhanced interface is also pre-programmed for retention of steering wheel controls.

ABOUT THIS ITEM

• Single/Double DIN Install Dash Kit
• Accommodates ISO Double DIN Mount
• Painted to Match Factory Dash Color
• High-Grade ABS Plastic Construction
• Factory Style Texture
• Includes Steering Wheel Control Interface
• For 2006-2015 Saturn, Chevrolet, GMC, Cadillac, Buick, Suzuki, Pontiac, Hummer Vehicles

FEATURES:

• Retains factory features in select GM LAN 29 Bit vehicles while functioning with an aftermarket radio.
• Pre-programmed to retain factory Steering Wheel Controls.
• iPhone Voice Recognition (VR) feature from SWC on Kenwood, Pioneer, Alpine and JVC radios.
• Supports Pick Up/End Call, Pick Up and Toggle between 1st and 2nd Incoming call, AVRCP Track, Seek.
• Supports Bose, non-Bose and Y-91 audio systems.
• Provides Factory Rear Seat Entertainment Activation. Requires Cable #CRUX2333A (sold separately).
• Retains factory front and back park assist system.
• Retains chime functions.
• EIA color coded wiring for easy installation.

NOTES:

• DKGM-49: Combo Category Includes Single-DIN Installation Kit with SWRGM-49
• NOT compatible with 2012-Up SUVs/Trucks that are equipped with factory-installed Navigation radios.
• NOT compatible with Express and Savana vans that are powered by a diesel engine.
• Supports Rear Entertainment System with special order harness #CJA2333A (sold separately).
• DOES NOT support ONSTAR..
