HERTZ CX 690

HERTZ

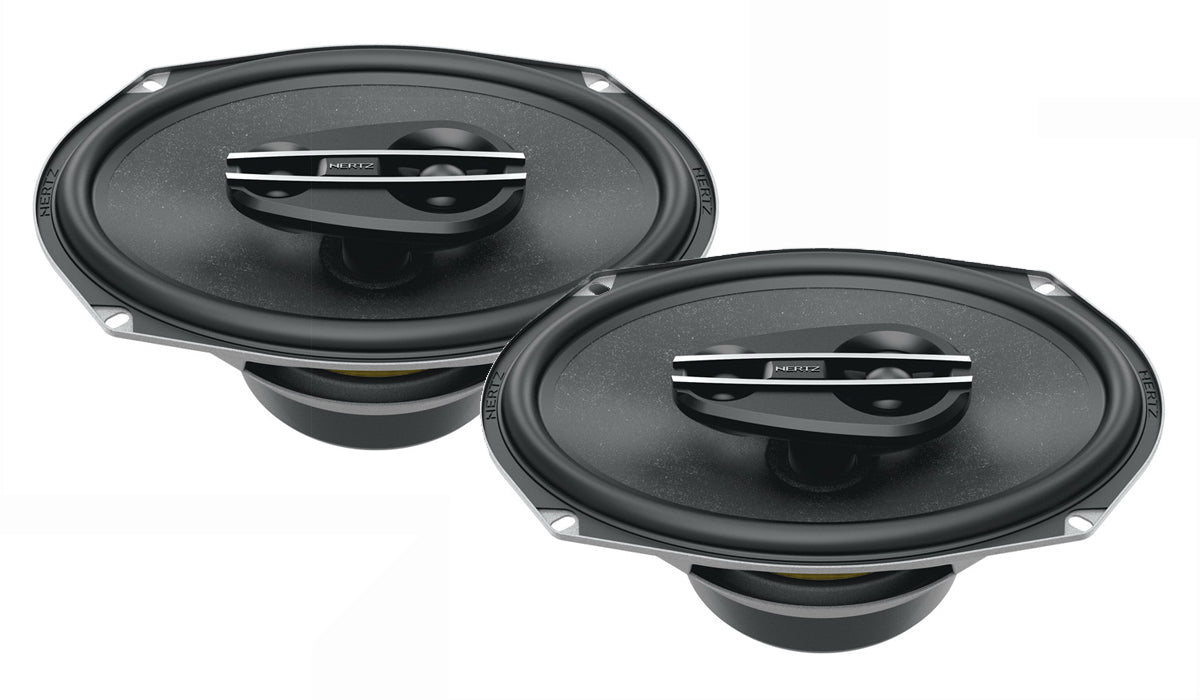

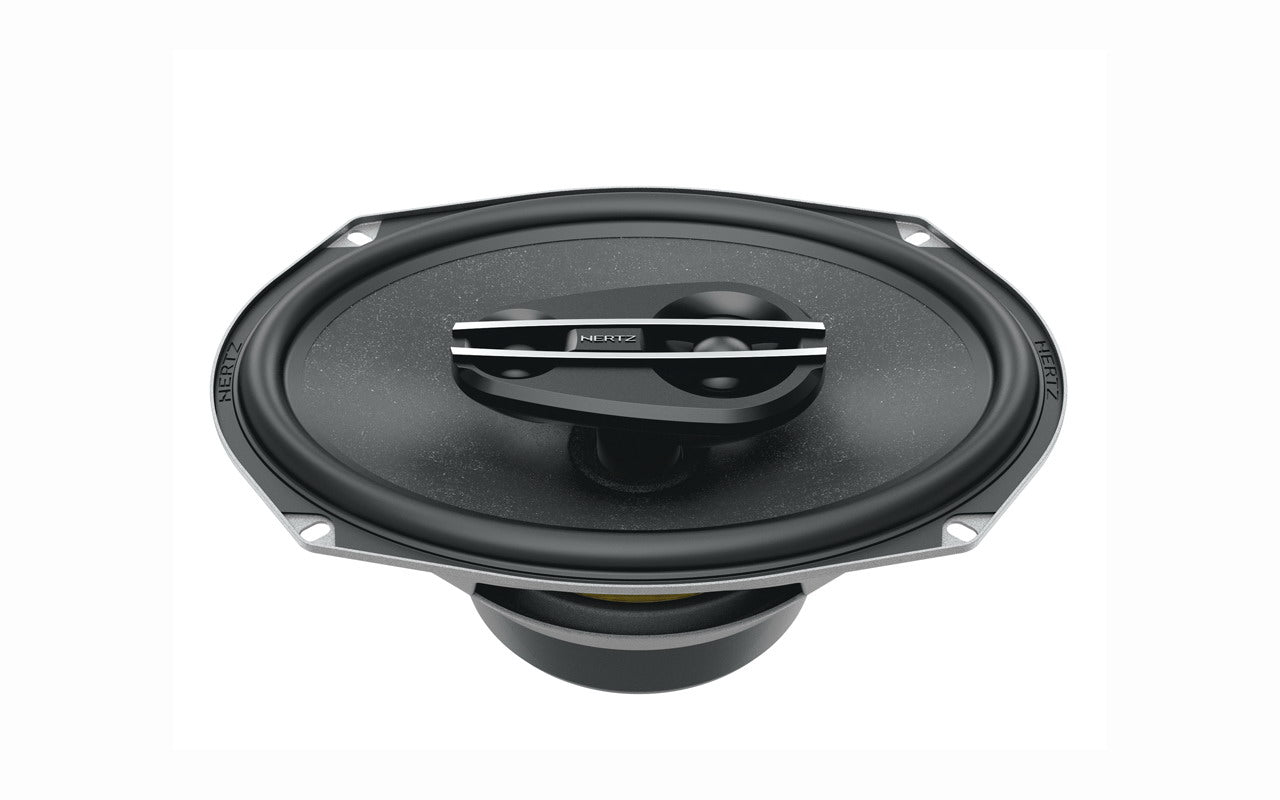

(CX690) CENTO SERIES 6X9" 100W RMS (300W PEAK POWER HANDLING) 3-WAY COAXIAL SPEAKERS

The three-way elliptical coax CX 690 featuring a 6×9 in. cone was designed to achieve maximum performance in horizontal installations and offering, even in this difficult condition, an exceptional tone balance and power handling.

FEATURES:

• 6×9 in. semi-pressed paper elliptical cone SPP-M (Semi Pressed Paper-Mica) enhanced with Mica powder for an excellent balance between lightness and damping.
• Wide rubber suspension engineered for a long excursion and excellent sound damping.
• High-density flux ferrite magnet combined with low-carbon polar plates for reduced distortion at high power levels.
• Basket with metallic finish acoustically combined with a rubber magnet cover for total damping of spurious vibrations.
• 40 mm (1.58 in.) dome tweeter for efficient distortion-free mid-high frequency reproduction.
• 20 mm (0.8 in.) dome supertweeter to maximize the level of very high frequencies in horizontal installations.
• Tweeter faceplate geometry optimized with FEM simulations (Finite Element Modeling), to provide an extremely linear frequency response in off-axis installations.
• Provided elegant grille made with high-resistance ABS plastic structure with a metallic finish combined with a protective metal mesh.

Specifications:

• Power Handling - Peak W: 300

• Power Handling - Continuous W: 100

• Impedance: 4 ohms

• Frequency response Hz: 40 ÷ 23k

• Sensitivity dB SPL: 93.5

• Woofer size mm (in.): (6 x 9)

• Tweeter size mm (in.): 40 (1.58)

• Supertweeter size mm (in.): 20 (0.8)

• Woofer Voice Coil Ø mm (in.): 30 (1.2)

• Tweeter voice coil Ø mm (in.): 28 (1.1)

• Woofer magnet: High density flux ferrite

• Tweeter magnet: Neodymium

• Woofer cone: Semi Pressed Paper-Mica

• Tweeter dome: PEI

• Supertweeter dome: PEI

• Diameter : 6x9 Inch

• Sensitivity : 93.5 dB

• Impedance : 4 Ohm

• Frequency Response : 40-23000 Hz

• Peak Power Handling : 300 Watts

• Design : 3 Way

• Top Mount Depth : 3-1/8 Inches

• RMS Power Handling : 100 Watts
