JL AUDIO CL-RLC

JL AUDIO

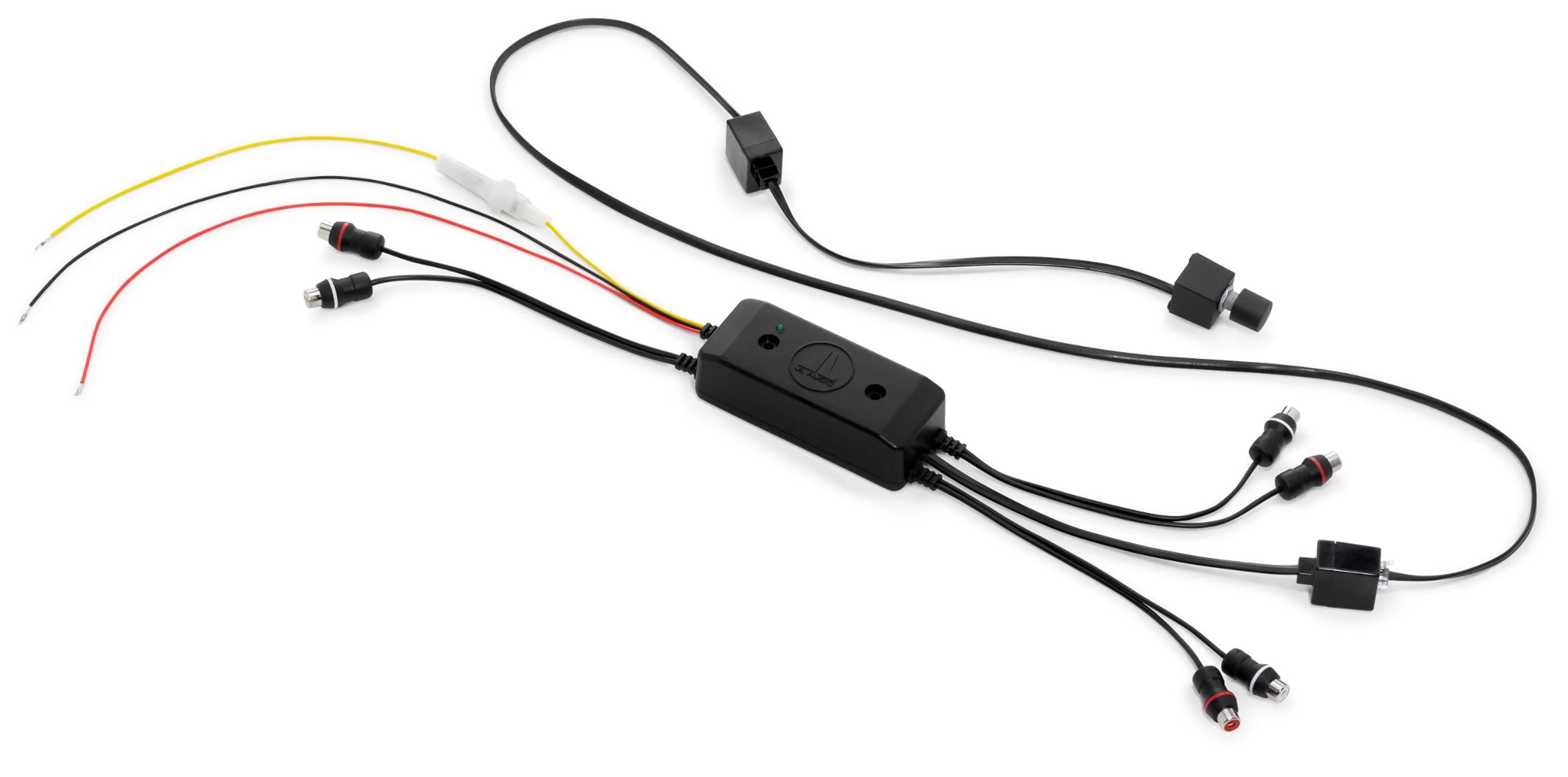

(CL-RLC) FULLY ACTIVE, 2-CHANNEL REMOTE LEVEL CONTROL / LINE DRIVER WITH PASS-THROUGH OUTPUTS

The Possibilities are Endless...

The CL-RLC is a true, active level control preamplifier which can be used for subwoofer level control or as an audiophile-grade, full-range volume control. The CL-RLC's differential-balanced inputs minimize the likelihood of noise, while its very healthy preamp design delivers up to 7.5 VRMS of unclipped output to your amplifier. Unlike cheap, passive line-level controls, no signal passes through the CL-RLC's control cable and knob. Instead, the control knob only sends volume level signals to the preamp circuit in order to maximize fidelity and minimize the possibility of noise.

Subwoofer Level: By inserting the CL-RLC in-line with any signal feeding a subwoofer amplifier, you can control the subwoofer level from the front of the vehicle using the supplied control knob. Another important feature is a buffered pass-through connection so that you can also pass signal along (without volume control) to a satellite amplifier from the same input channels.

Full-Range Volume Control: Since the CL-RLC uses top-quality active circuitry, its application is not just limited to subwoofer duty. It can be used whenever and wherever you want to have volume control over any line-level signal. For example, you can use it to control a center-channel level, rear channel levels, or even the level of an iPod® input directly to an amplifier. The possibilities are endless and will enable very interesting things to be accomplished in a wide variety of systems.

GENERAL SPECIFICATIONS:

• Channel Separation : >80 dB
• Output Impedance : 475 Ω
• Gain Range : 7.5 V RMS
• Max. Unclipped Output : 7.5 V RMS
• Frequency Response : 10 Hz - 30 kHz (+0/-1 dB)
• THD+N @ Rated Output : Less than 0.05% @ 7.5 V RMS
• S/N Ratio : >117 dB @ 7.5 V RMS
• Max. Input Level : 4 V RMS
• Operating Current Draw : 90 mA

PHYSICAL SPECIFICATIONS:

• Height (H) : 3.94 in / 100 mm
• Width (W) : 1.21 in / 31 mm
• Depth (D) : 1.63 in / 41 mm
• Net Weight : 0.55 lb / 0.25 kg

In-store Purchase only

SKU # 98117
