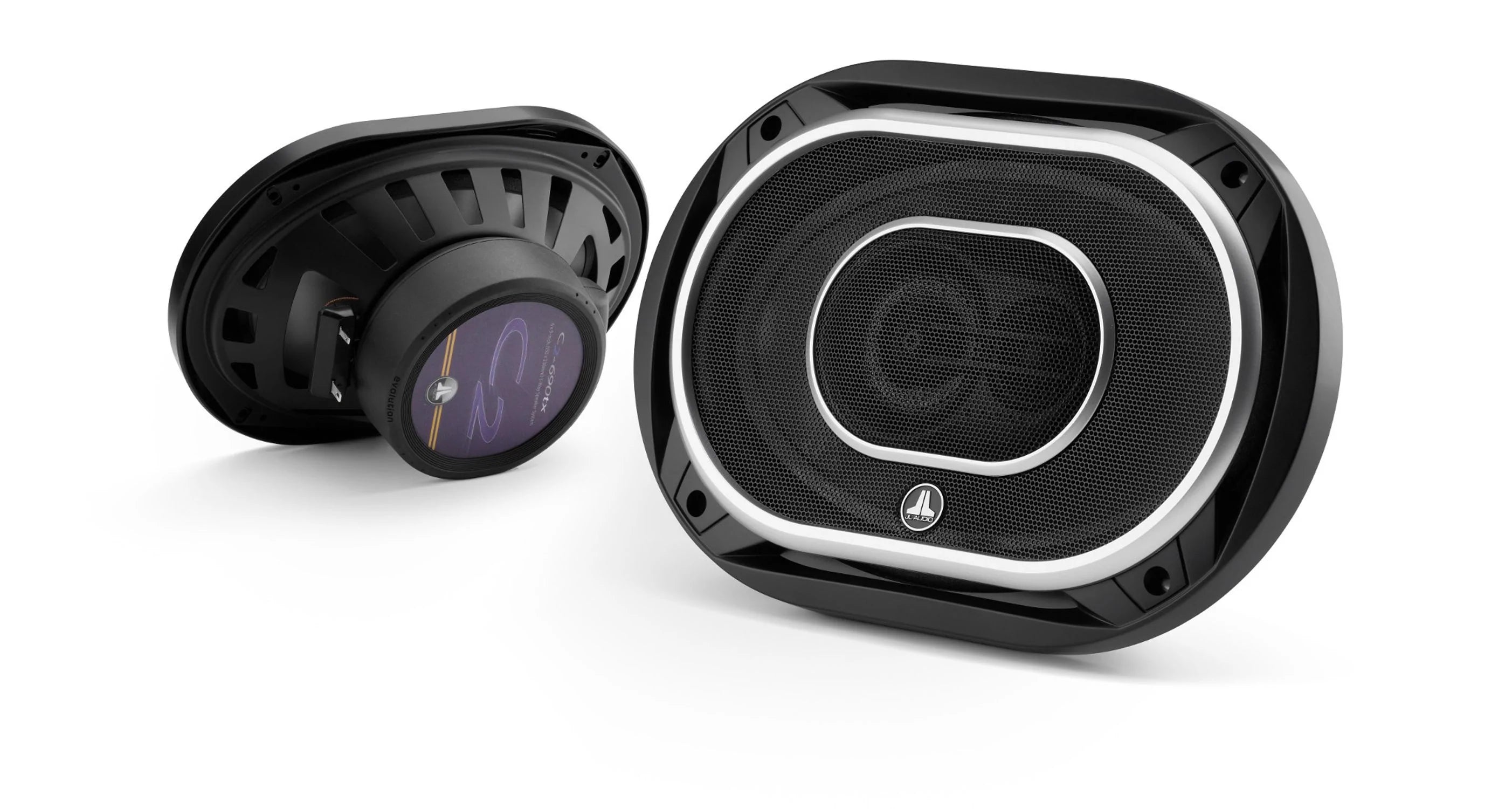

JL AUDIO C2-690tx

JL AUDIO

(C2-690TX) 6 X 9-INCH (150 X 230MM) 3-WAY WITH 2-INCH (51MM) MIDRANGE AND 0.75-INCH (19MM) SILK DOME TWEETER WITH NEODYMIUM MAGNET - (SOLD AS A PAIR)

FEATURES:

• Coaxial 3-Way Speaker System: 6 x 9-inch (150 x 230 mm) Woofer, 2-inch (51 mm) Cone Mid-Range, 0.75-inch (19 mm) Silk Dome Tweeter | 6x9
• The Evolution C2 systems deliver sparkling high-frequency detail, smooth mid-range and powerful mid-bass, thanks to real silk dome tweeters and precision-engineered woofer designs.
• The C2-690tx system features 6 x 9-inch (150 x 230 mm) woofers with mineral-filled polypropylene cones, long excursion capabilities and stamped steel frames. The woofer design benefits from JL Audio's vast woofer design experience and advanced modeling systems.
• The 6 x 9-inch (150 x 230 mm) format is a direct fit in many vehicles.
• The Mid-Range driver is ferrofluid-cooled, with a 2-inch Mylar® cone diaphragm to smoothly bridge the gap between the woofer and the dome tweeter.
• Tweeters are mounted next to the mid-range driver and built with 0.75-inch silk dome diaphragms that deliver smooth, extended response, on and off axis. The small size of the C2 tweeter minimizes tweeter protrusion, allowing C2 coaxials to fit behind most factory speaker grilles.
• Woofer grilles are included, each consisting of a black grille tray with satin silver accents and a black steel mesh grille with an electroformed JL Audio logo.
• Sonic character: Clean and Dynamic

GENERAL SPECIFICATIONS:

• Continuous Power Handling (RMS) : 70 W
• Recommended Amplifier Power (RMS) : 15 - 125 W / Ch.
• System Efficiency : 93 dB @ 1 W / 1 m
• System Nominal Impedance : 4 Ω
• System Frequency Response : 53 Hz - 22 KHz ± 3 dB

COAXIAL PHYSICAL SPECIFICATIONS:

• Frame Outer Diameter* (A) : 6.40 x 9.33 in / 163 x 237 mm
• Grille Tray Outer Diameter (B) : 6.75 x 9.63 in / 172 x 245 mm
• Motor Outer Diameter (C) : 3.94 in / 100 mm
• Frontal Coaxial Tweeter Protrusion** (D) : 0.75 in / 19 mm
• Frontal Grille Protrusion (E) : 0.98 in / 25 mm
• Mounting Hole Diameter (F) : N/A
• Mounting Depth (G) :  3.06 in / 78 mm
• *Does not take into account mounting tabs
• **Frontal coaxial tweeter protrusion measured from mounting surface
• ***Frontal grille protrusion measured from mounting surface

In-Store Purchase only

SKU # 99619
