JL AUDIO C2-600cw

JL AUDIO

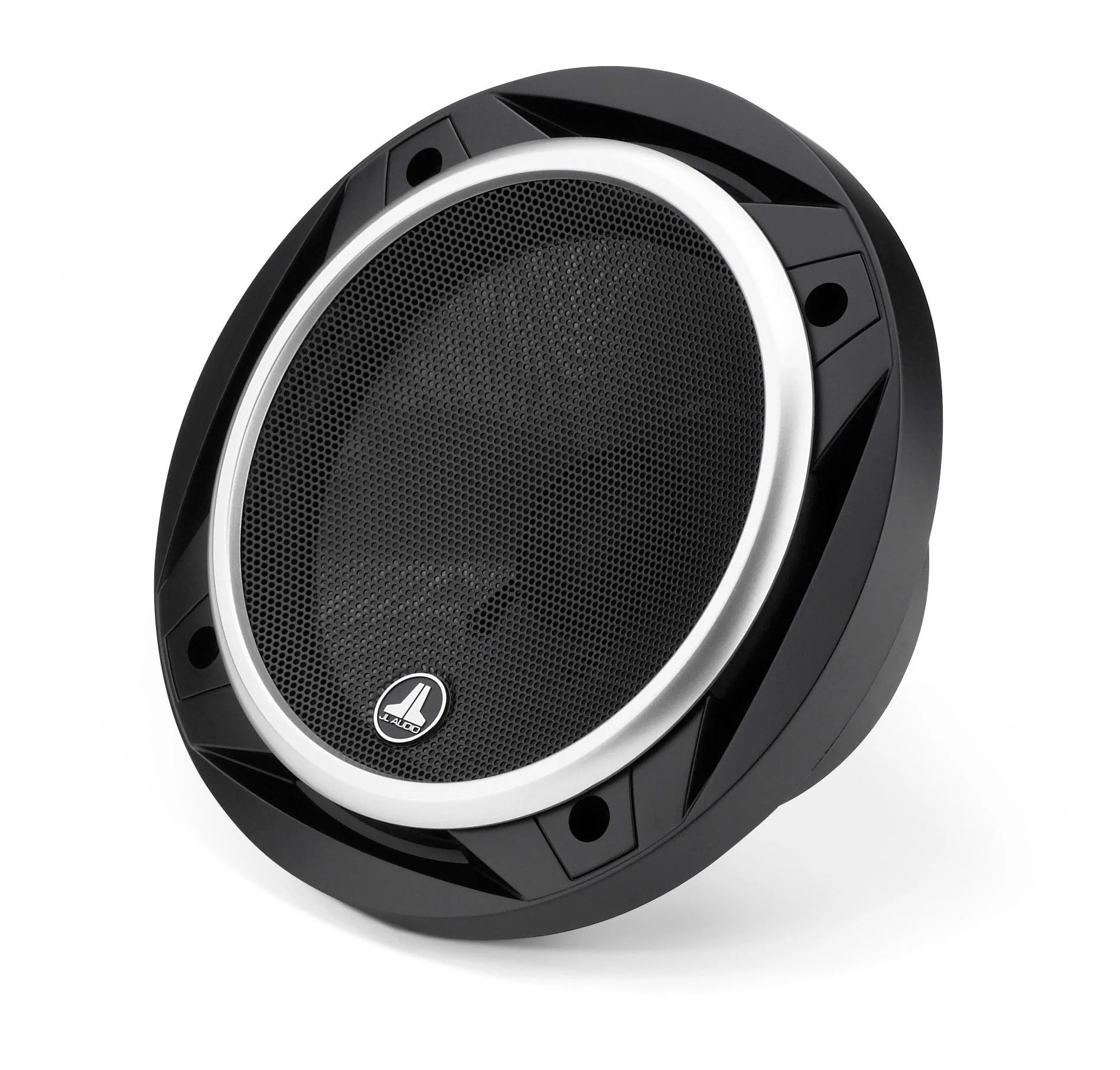

(C2-600CW) 6.0-INCH (150MM) COMPONENT WOOFER (EACH)

FEATURES:

• 6-inch (150 mm) 2-Way Component Woofer (Single)
• The Evolution C2 speakers deliver smooth mid-range and powerful mid-bass thanks to long linear excursion woofer designs.
• The C2-600cw is a 6-inch (150 mm) component woofer with mineral-filled polypropylene cone, long excursion capabilities and a stamped steel frame. The woofer design benefits from JL Audio's vast woofer design experience and advanced modeling systems.
• The 6-inch (150 mm) format is a direct fit in many Japanese vehicles where a full-size 6.5-inch speaker (165 mm) will not fit without modification. Multiple mounting patterns are provided on the woofer frame for easy installation into most vehicles that accept a 6-inch (150 mm) speaker.
• A woofer grille is included, consisting of a black grille tray with satin silver accent and a black steel mesh grille with an electroformed JL Audio logo.
• Sonic character: Clean and Dynamic
• Sold individually.

GENERAL SPECIFICATIONS:

• Continuous Power Handling (RMS) : 60 W
• Recommended Amplifier Power (RMS) : 15 - 100 W / Ch.
• System Efficiency : 90.5 dB @ 1 W / 1 m
• System Nominal Impedance : 4 Ω
• System Frequency Response :  59 Hz - 22 KHz ± 3 dB

WOOFER PHYSICAL SPECIFICATIONS:

• Frame Outer Diameter* (A) : 6.21 in / 158 mm
• Grille Tray Outer Diameter (B) : 6.51 in / 163 mm
• Motor Outer Diameter (C) : 3.15 in / 80 mm
• Frontal Coaxial Tweeter Protrusion (D) : N/A
• Frontal Grille Protrusion** (E) : 0.91 in / 23 mm
• Mounting Hole Diameter (F) : 5.00 in / 127 mm
• Mounting Depth (G) : 2.38 in / 60 mm
• *Does not take into account mounting tabs
• **Frontal grille protrusion measured from mounting surface

In-Store Purchase only

SKU # 99626
