JL AUDIO C2-600

JL AUDIO

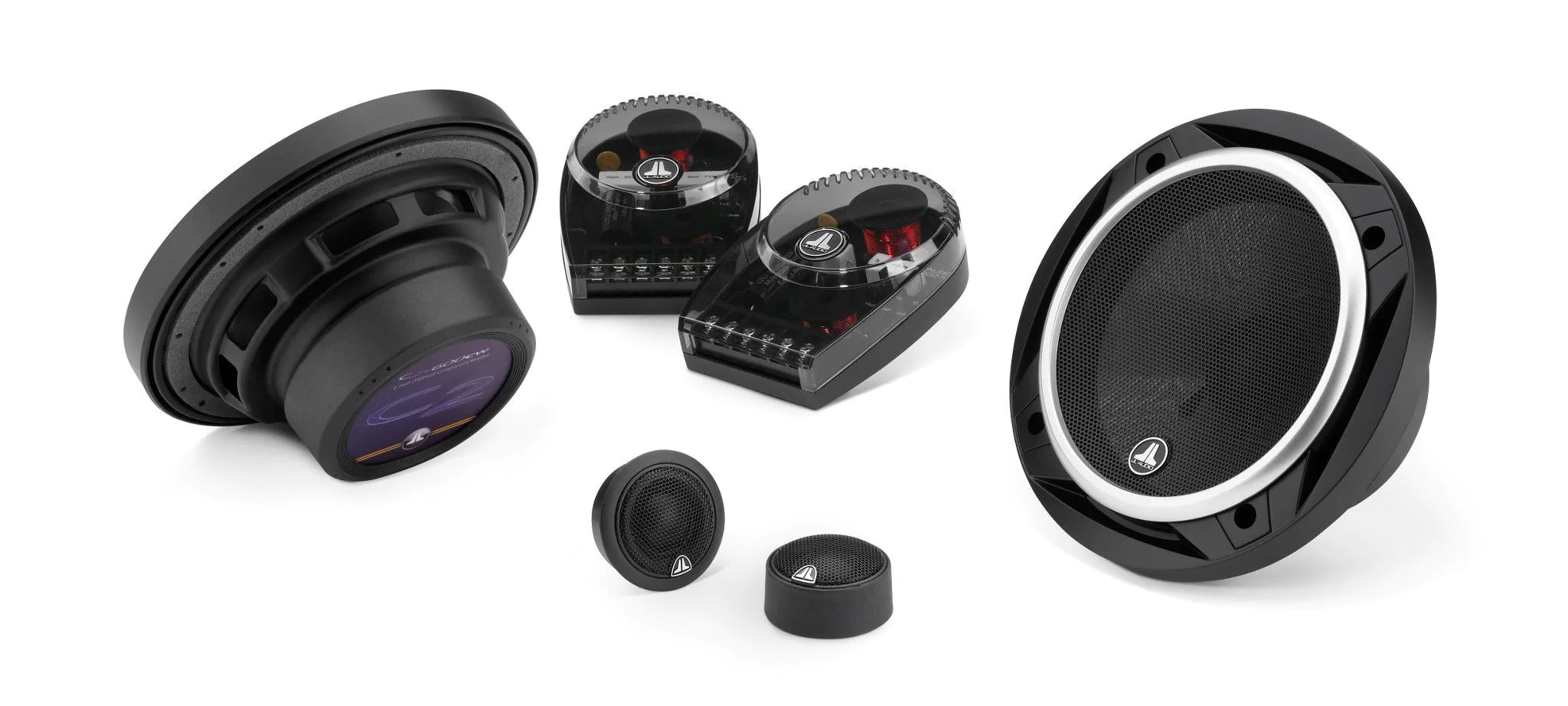

(C2-600) COMPONENT SYSTEM WITH 6.0-INCH (150MM) WOOFER AND 0.75-INCH (19MM) SILK DOME TWEETER WITH NEODYMIUM MAGNET, PROGRAMMABLE OUTBOARD CROSSOVER NETWORK - (SOLD AS A PAIR)

FEATURES:

• 2-Way Component System: 6-inch (150 mm) Woofer, 0.75-inch (19 mm) Silk Dome Tweeter
• The Evolution C2 systems deliver sparkling high-frequency detail, smooth mid-range and powerful mid-bass, thanks to real silk dome tweeters and long linear excursion woofer designs.
• The C2-600 system features 6-inch (150 mm) component woofers with mineral-filled polypropylene cones, long excursion capabilities and stamped steel frames. The woofer design benefits from JL Audio's vast woofer design experience and advanced modeling systems.
• The 6-inch (150 mm) format is a direct fit in many Japanese vehicles where a full-size 6.5-inch speaker (165 mm) will not fit without modification. Multiple mounting patterns are provided on the woofer frame for easy installation into most vehicles that accept a 6-inch (150 mm) speaker.
• The C2 component tweeters are built with 0.75-inch silk dome diaphragms that deliver smooth, extended response, on and off axis. Flush-mounting and surface-mounting fixtures are included to fit a wide variety of installation needs.
• C2 crossover networks are compact and built with premium component parts, including Mylar® capacitors and segmented air-core inductors. Three levels of tweeter attenuation are provided, as well as a tweeter protector.
• Woofer grilles are included, each consisting of a black grille tray with satin silver accents and a black steel mesh grille with an electroformed JL Audio logo.
• Sonic character: Clean and Dynamic
• Sold as a pair.

GENERAL SPECIFICATIONS:

• Continuous Power Handling (RMS) : 60 W
• Recommended Amplifier Power (RMS) : 15 - 100 W / Ch.
• System Efficiency : 90.5 dB @ 1 W / 1 m
• System Nominal Impedance : 4 Ω
• System Frequency Response : 59 Hz - 22 KHz ± 3 dB

COAXIAL PHYSICAL SPECIFICATIONS:

• Frame Outer Diameter* (A) : 6.21 in / 158 mm
• Grille Tray Outer Diameter (B) : 6.51 in / 163 mm
• Motor Outer Diameter (C) : 3.15 in / 80 mm
• Frontal Coaxial Tweeter Protrusion** (D) : N/A
• Frontal Grille Protrusion (E) : 0.91 in / 23 mm
• Mounting Hole Diameter (F) : 5.00 in / 127 mm
• Mounting Depth (G) :  2.38 in / 60 mm
• *Does not take into account mounting tabs
• **Frontal coaxial tweeter protrusion measured from mounting surface

TWEETER PHYSICAL SPECIFICATIONS:

• Flush Mount Fixture Diameter (A1) : 1.87 in / 48 mm
• Surface Mount Fixture Diameter (A2) : 1.69 in / 43 mm
• Flush Mount Mounting Hole Diameter (B) : 1.625 in / 41 mm
• Flush Mount Mounting Depth (C) : 0.76 in / 19 mm
• Flush Mount Tweeter Frontal Protrusion (D1) : 0.29 in / 7 mm
• Surface Mount Tweeter Frontal Protrusion (D2) : 0.92 in / 23 mm

CROSSOVER PHYSICAL SPECIFICATIONS:

• Width (W) : 3.36 in / 85 mm
• Height (H) : 1.44 in / 37 mm
• Depth (D) : 4.72 in / 120 mm

In-Store Purchase only

SKU # 99615
