JL AUDIO C2-570x

JL AUDIO

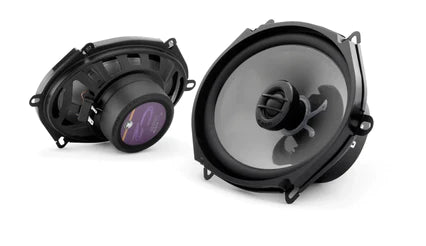

(C2-570X) 5 X 7 / 6 X 8-INCH (125 X 180MM) COAXIAL WITH 0.75-INCH (19MM) SILK DOME TWEETER WITH NEODYMIUM MAGNET - (SOLD AS A PAIR)

FEATURES:

• Coaxial Speaker System: 5 x 7 / 6 x 8-inch (125 x 180 mm) Woofer, 0.75-inch (19 mm) Silk Dome Tweeter
• The Evolution C2 systems deliver sparkling high-frequency detail, smooth mid-range and powerful mid-bass, thanks to real silk dome tweeters and precision-engineered woofer designs.
• Many people mistakenly believe that an oval speaker cannot perform as well as a round one, leading to many instances of 5.25-inch speakers being installed into 5 x 7-inch openings. JL Audio has put in the engineering time and effort to create fantastic-sounding speakers that drop into oval openings and deliver equivalent performance to our 6.5-inch (165 mm) round speaker systems... guaranteed. So, don't make the mistake of losing cone area and efficiency by stepping down to a smaller round speaker... these ovals are as impressive as our round format systems.
• The C2-570x system features 5 x 7 / 6 x 8-inch (125 x 180 mm) woofers with mineral-filled polypropylene cones, long excursion capabilities and stamped steel frames. The woofer design benefits from JL Audio's vast woofer design experience and advanced modeling systems.
• Tweeters are coaxially mounted and built with 0.75-inch silk dome diaphragms that deliver smooth, extended response, on and off axis. The small size of the C2 tweeter minimizes tweeter protrusion, allowing C2 coaxials to fit behind most factory speaker grilles.
• Grilles are not available for this speaker system.
• Sonic character: Clean and Dynamic
• Sold as a pair.

GENERAL SPECIFICATIONS:

• Continuous Power Handling (RMS) : 60 W
• Recommended Amplifier Power (RMS) : 15 - 100 W / Ch.
• System Efficiency : 90.5 dB @ 1 W / 1 m
• System Nominal Impedance : 4 Ω
• System Frequency Response : 53 Hz - 22 KHz ± 3 dB

COAXIAL PHYSICAL SPECIFICATIONS:

• Frame Outer Diameter* (A) : 5.47 x 7.68 in / 139 x 195 mm
• Grille Tray Outer Diameter (B) : N/A
• Motor Outer Diameter (C) : 2.76 in / 70 mm
• Frontal Coaxial Tweeter Protrusion** (D) : 0.47 in / 12 mm
• Frontal Grille Protrusion (E) : N/A
• Mounting Hole Diameter (F) : N/A
• Mounting Depth (G) :  2.43 in / 62 mm
• *Does not take into account mounting tabs
• **Frontal coaxial tweeter protrusion measured from mounting surface

In-Store Purchase only

SKU # 99614
