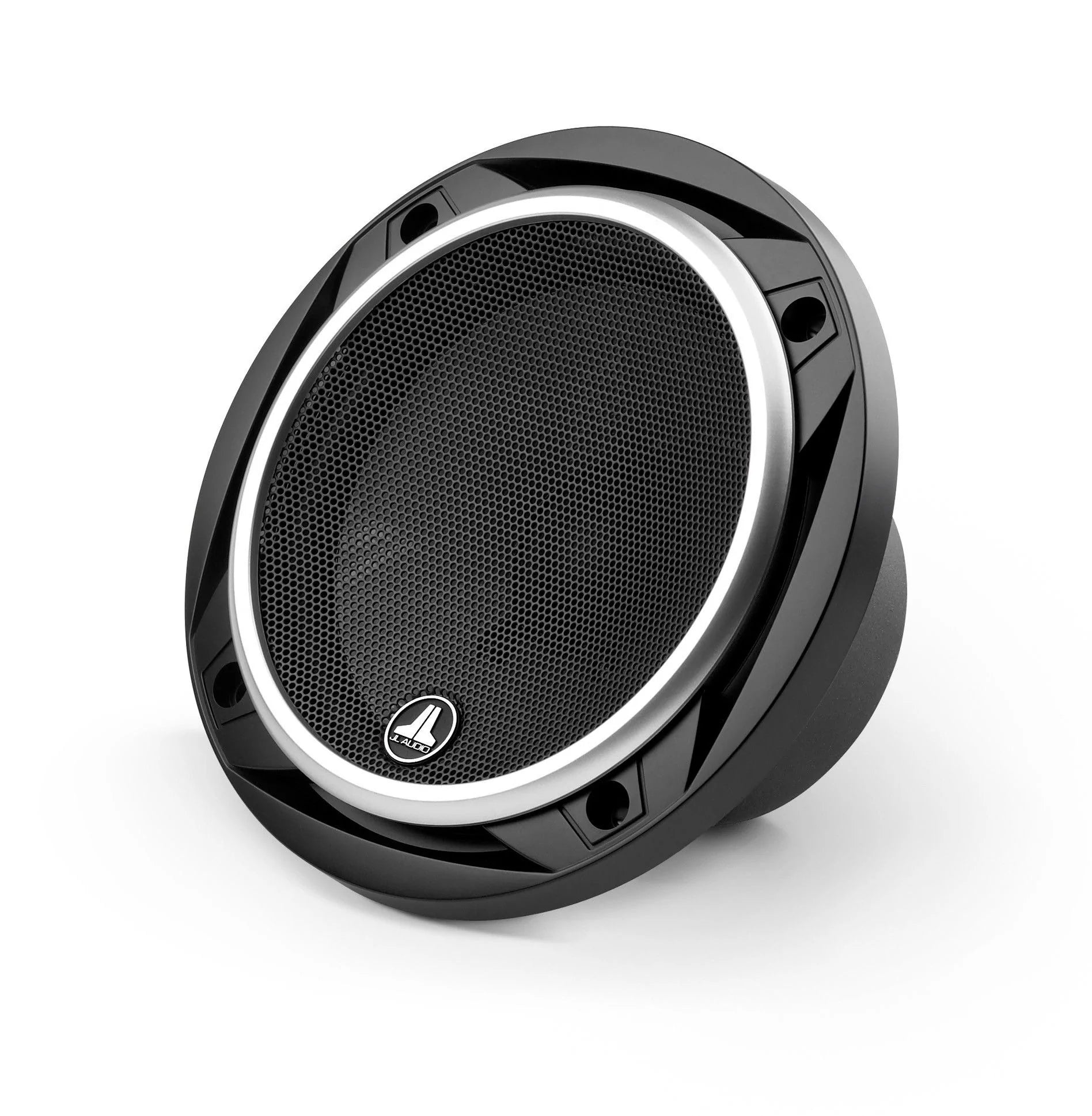

JL AUDIO C2-525cw

JL AUDIO

(C2-525CW) 5.25-INCH (130MM) COMPONENT WOOFER (EACH)

FEATURES:

• 5.25-inch (130 mm) 2-Way Component Woofer (Single)
• The C2-525cw is a 5.25-inch (130 mm) component woofer with mineral-filled polypropylene cone, long excursion capabilities and stamped steel frame. The woofer design benefits from JL Audio's vast woofer design experience and advanced modeling systems.
• A woofer grille is included, consisting of a black grille tray with satin silver accents and a black steel mesh grille with an electroformed JL Audio logo.
• Sonic character: Clean and Dynamic
• Sold individually.

GENERAL SPECIFICATIONS:

• Continuous Power Handling (RMS) : 60 W
• Recommended Amplifier Power (RMS) : 15 - 100 W / Ch.
• System Efficiency : 89 dB @ 1 W / 1 m
• System Nominal Impedance : 4 Ω
• System Frequency Response :  63 Hz - 22 KHz ± 3 dB

WOOFER PHYSICAL SPECIFICATIONS:

• Frame Outer Diameter* (A) : 5.20 in / 132 mm
• Grille Tray Outer Diameter (B) : 6.01 in / 153 mm
• Motor Outer Diameter (C) : 2.76 in / 70 mm
• Frontal Coaxial Tweeter Protrusion (D) : N/A
• Frontal Grille Protrusion** (E) : 0.72 in / 18 mm
• Mounting Hole Diameter (F) : 4.56 in / 116 mm
• Mounting Depth (G) : 2.50 in / 64 mm
• *Does not take into account mounting tabs
• **Frontal grille protrusion measured from mounting surface

In-Store Purchase only

SKU # 99625
