JL AUDIO C1-100ct

$79.99

JL AUDIO

(C1-100CT) 1-INCH (25MM) ALUMINUM DOME TWEETER WITH NEODYMIUM MAGNET. INLINE HIGH-PASS FILTER INCLUDED
FEATURES:

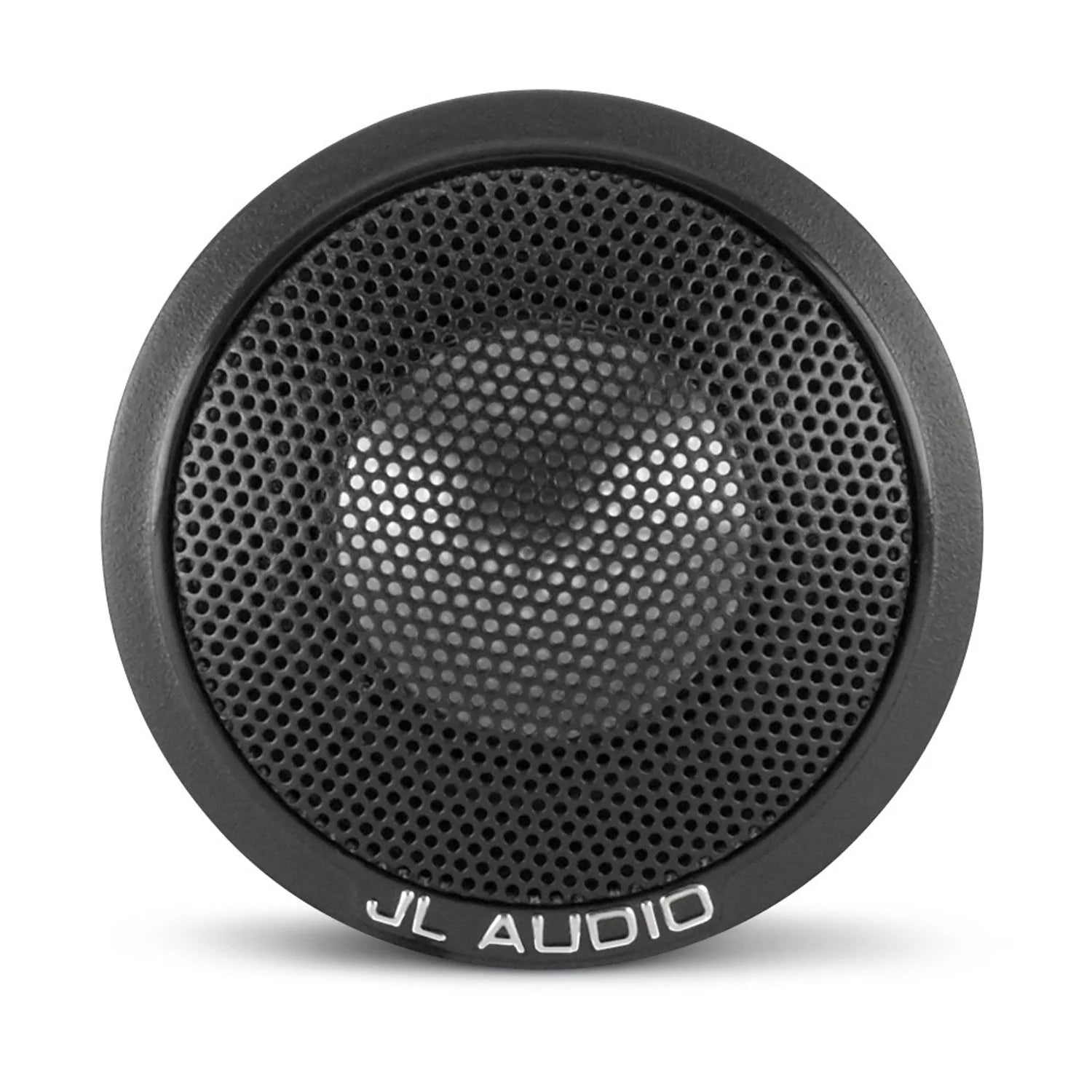

  • 1.0-inch (25 mm) Aluminum Dome Tweeters
  • C1 component tweeters are engineered to deliver refined performance, with excellent off-axis response and high-frequency extension. Utilizing true, edge driven 1.0-inch aluminum domes with silk suspensions, the C1-100ct component tweeters provide smooth, detailed reproduction of treble frequencies from 3.6 – 22 kHz.

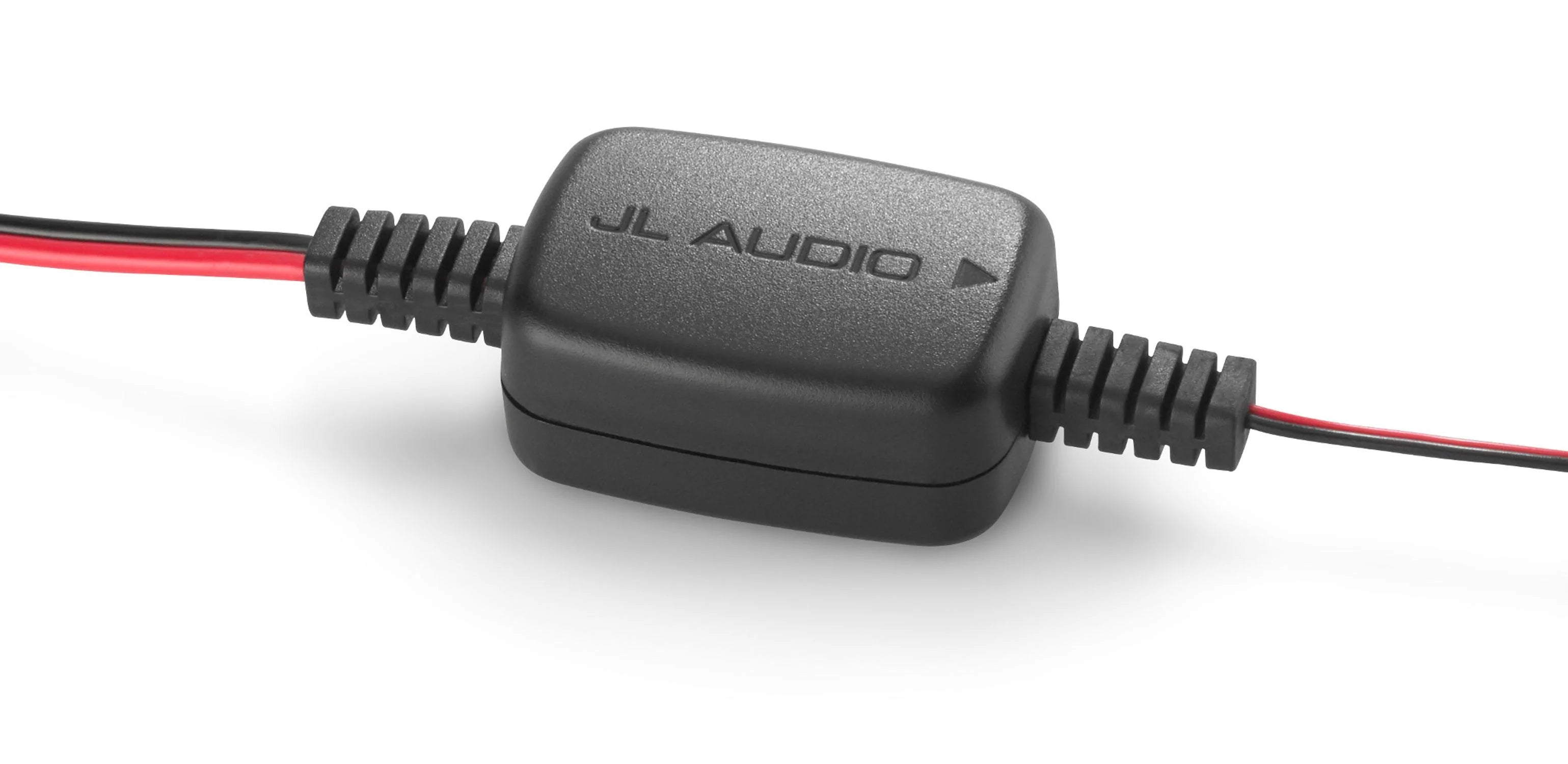

  • The tweeters can be flush-mounted or surface-mounted with the supplied fixtures to fit a wide variety of installation needs. Inline, outboard, 12 dB / octave, high-pass filters are included to ensure smooth response and reliability. These filters also are equipped with Advanced Tweeter Protection Circuitry to improve power handling and reliability.
  • When it comes to value, C1 is the real deal!

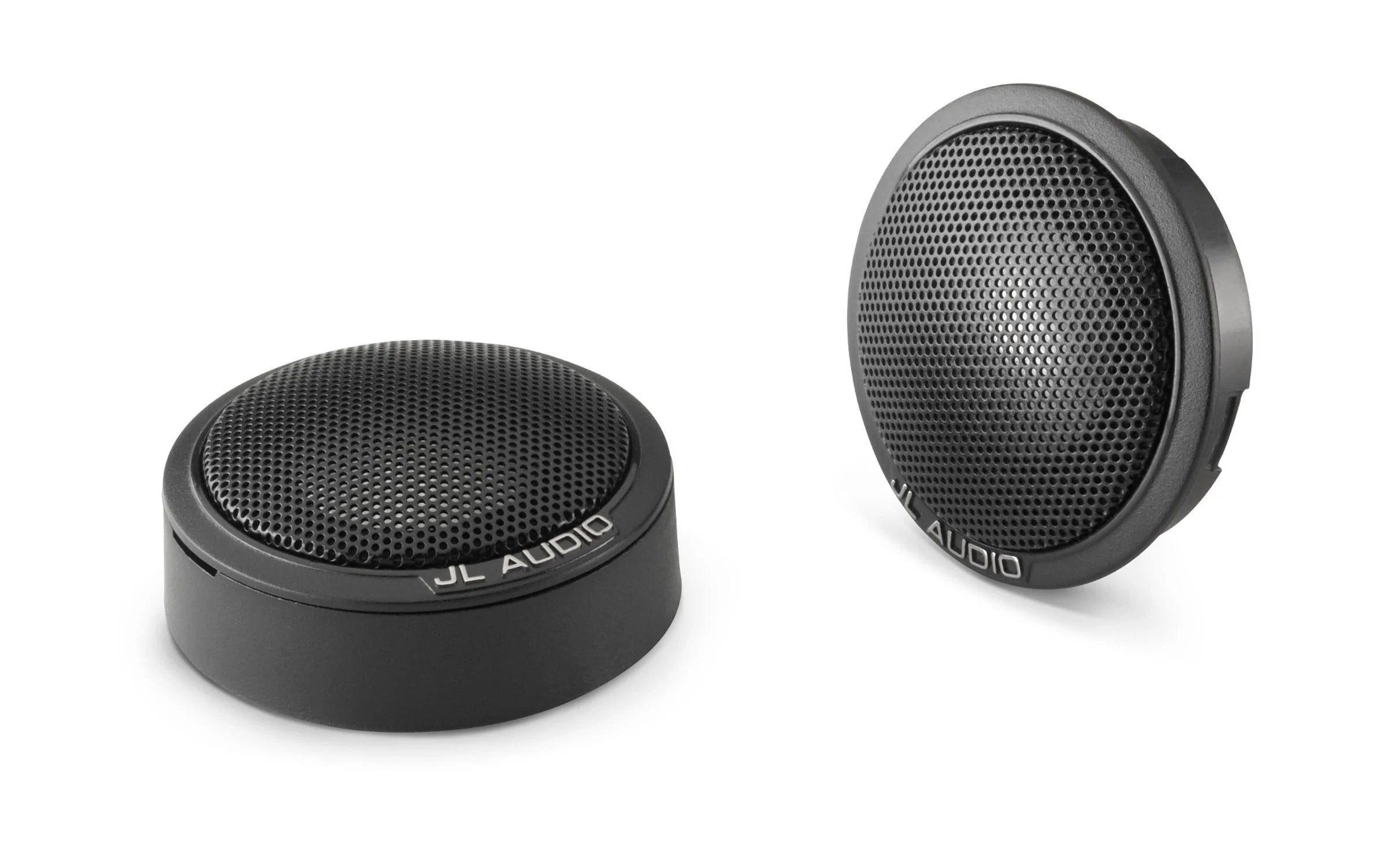

  • Sold as a pair. Surface-mount and flush-mount fixtures and grilles are included.
GENERAL SPECIFICATIONS:
  • Continuous Power Handling (RMS) : 60 W
  • Recommended Amplifier Power (RMS) : 20 - 60 W / Ch.
  • System Efficiency : 91.5 dB @ 1 W / 1 m
  • System Nominal Impedance : 4 Ω
  • System Frequency Response : 3.6 kHz - 24 KHz ± 3 dB
TWEETER PHYSICAL SPECIFICATIONS:
  • Flush Mount Fixture Diameter (A1) : 1.97 in / 50 mm
  • Surface Mount Fixture Diameter (A2) : 2.01 in / 51 mm
  • Flush Mount Mounting Hole Diameter (B) : 1.75 in / 45 mm
  • Flush Mount Mounting Depth (C) : 0.40 in / 10 mm
  • Flush Mount Tweeter Frontal Protrusion (D1) : 0.32 in / 8 mm
  • Surface Mount Tweeter Frontal Protrusion (D2) : 0.87 in / 22 mm
CROSSOVER PHYSICAL SPECIFICATIONS:
  • Width (W) : 1.96 in / 50 mm
  • Height (H) : 1.34 in / 34 mm
  • Depth (D) : 0.90 in / 23 mm

SKU # 99049
