JL AUDIO C1-075ct

JL AUDIO

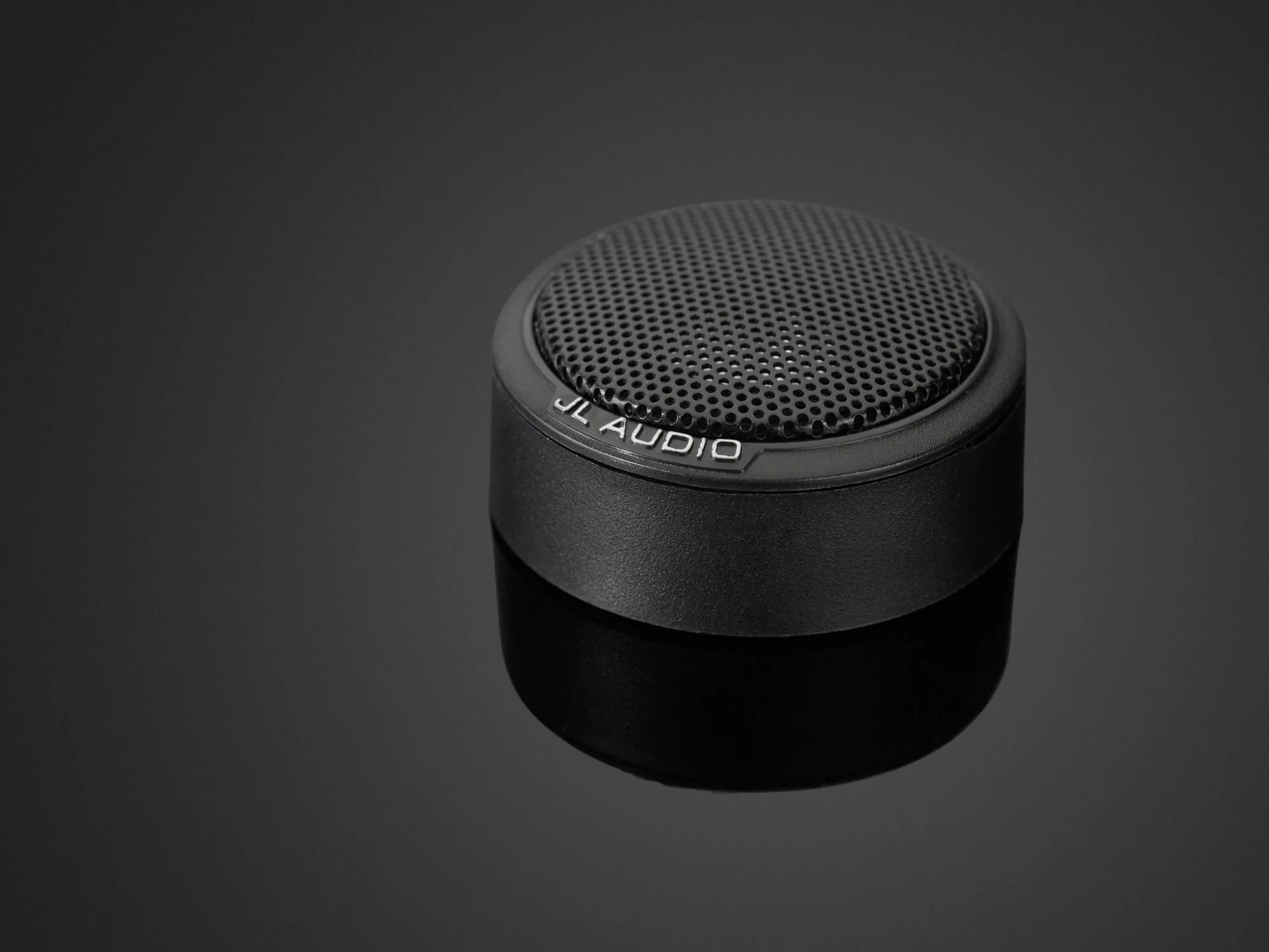

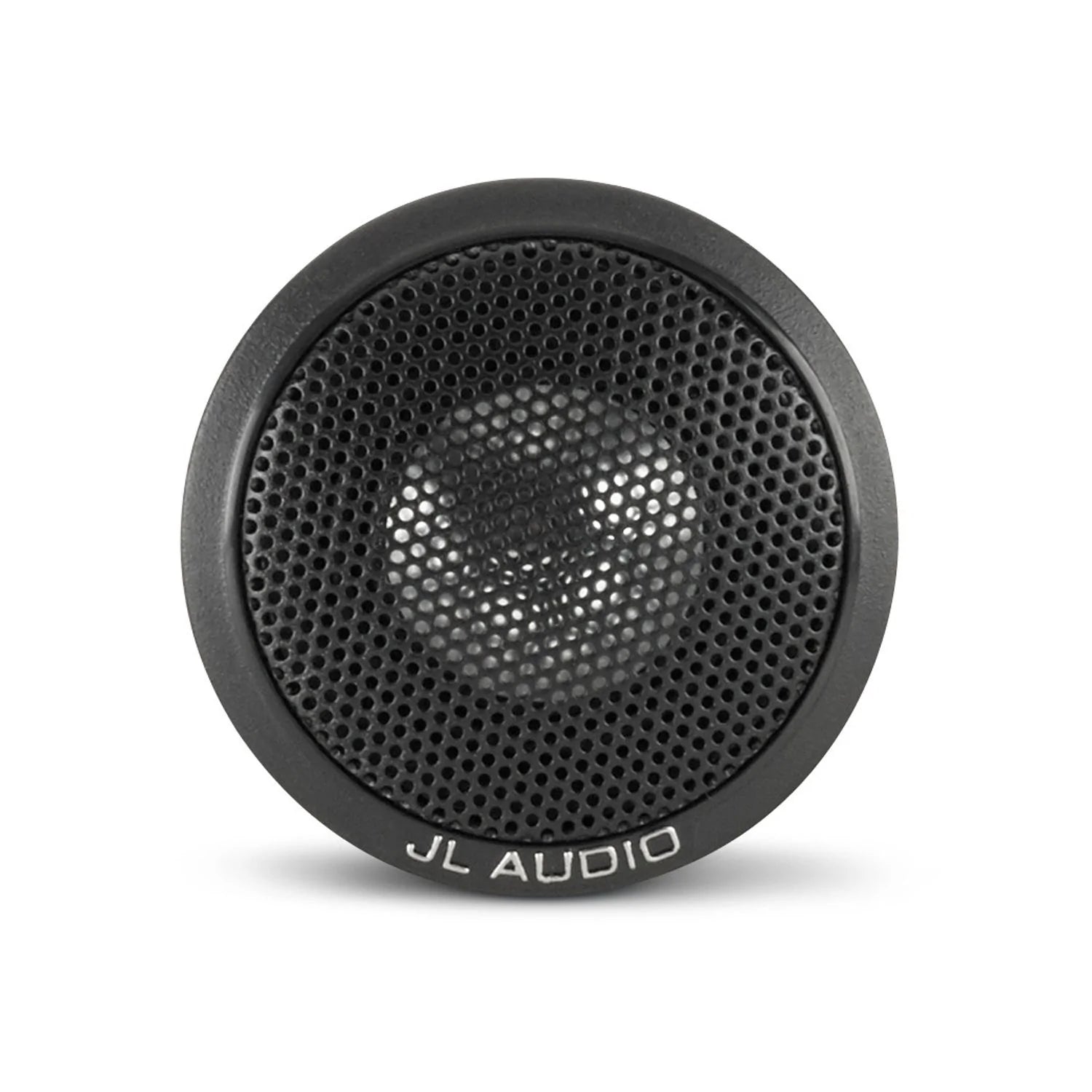

(C1-075CT) 0.75-INCH (19MM) ALUMINUM DOME TWEETER WITH NEODYMIUM MAGNET. INLINE HIGH-PASS FILTER INCLUDED

FEATURES:

• 0.75-inch (19 mm) Aluminum Dome Tweeters
• C1 component tweeters are engineered to deliver refined performance, with excellent off-axis response and high-frequency extension. Utilizing true, edge driven 0.75-inch aluminum domes with silk suspensions, the C1-075ct component tweeters provide smooth, detailed reproduction of treble frequencies from 4 – 24 kHz.

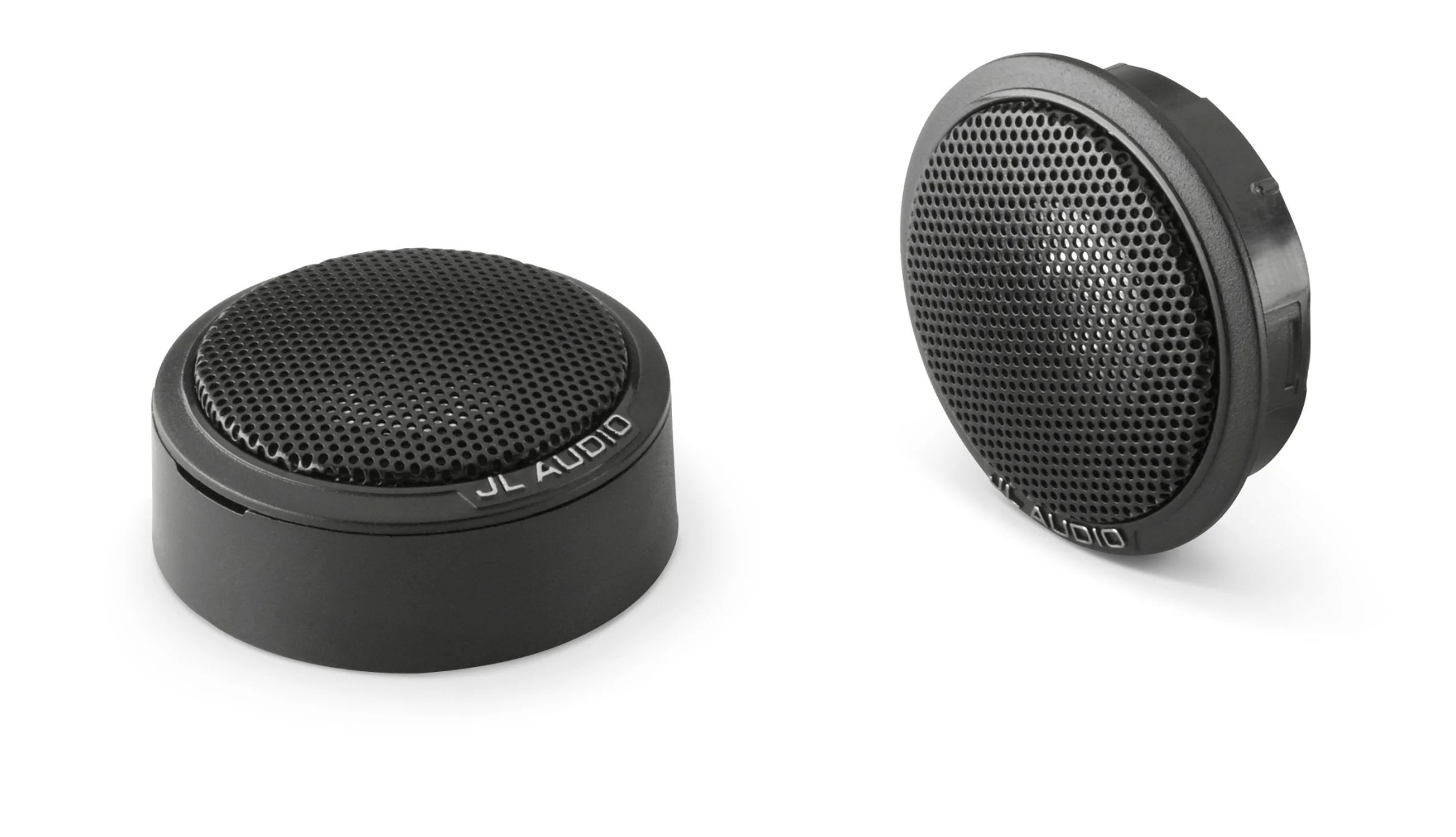

• The tweeters can be flush-mounted or surface-mounted with the supplied fixtures to fit a wide variety of installation needs. Inline, outboard, 12 dB / octave, high-pass filters are included to ensure smooth response and reliability. These filters also are equipped with Advanced Tweeter Protection Circuitry to improve power handling and reliability.
• When it comes to value, C1 is the real deal!
• Sold as a pair. Surface-mount and flush-mount fixtures and grilles are included.

GENERAL SPECIFICATIONS:

• Continuous Power Handling (RMS) : 50 W
• Recommended Amplifier Power (RMS) : 20 - 50 W / Ch.
• System Efficiency : 91.0 dB @ 1 W / 1 m
• System Nominal Impedance : 4 Ω
• System Frequency Response : 4K Hz - 24 KHz ± 3 dB

TWEETER PHYSICAL SPECIFICATIONS:

• Flush Mount Fixture Diameter (A1) : 1.67 in / 42 mm
• Surface Mount Fixture Diameter (A2) : 1.71 in / 43 mm
• Flush Mount Mounting Hole Diameter (B) : 1.46 in / 37 mm
• Flush Mount Mounting Depth (C) : 0.40 in / 10 mm
• Flush Mount Tweeter Frontal Protrusion (D1) : 0.23 in / 6 mm
• Surface Mount Tweeter Frontal Protrusion (D2) : 0.76 in / 19 mm

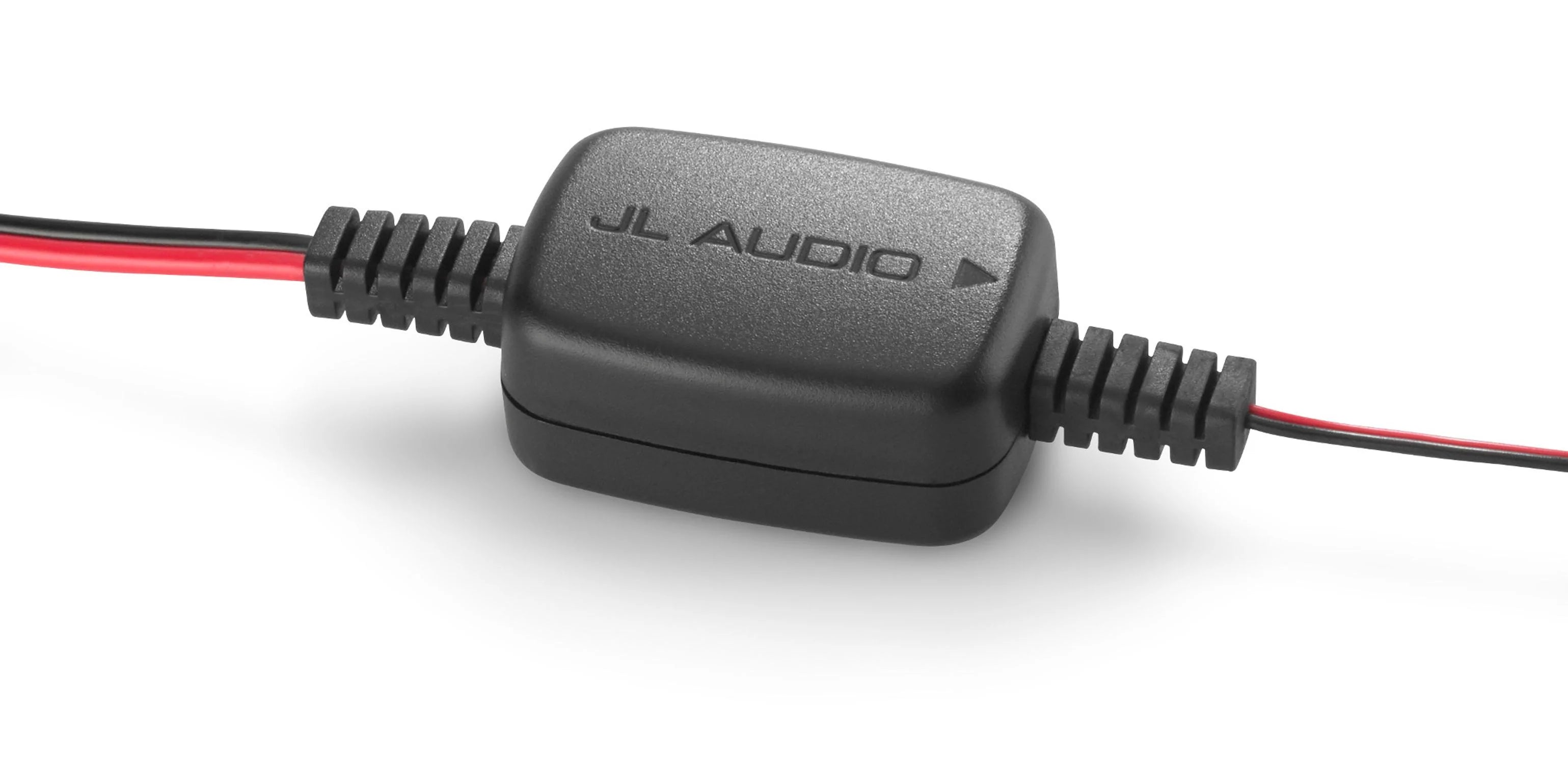

CROSSOVER PHYSICAL SPECIFICATIONS:

• Width (W) : 1.96 in / 50 mm
• Height (H) : 1.34 in / 34 mm
• Depth (D) : 0.90 in / 23 mm

In-Store Purchase only

SKU # 99048
