JL AUDIO ACS112LG-TW1

JL AUDIO

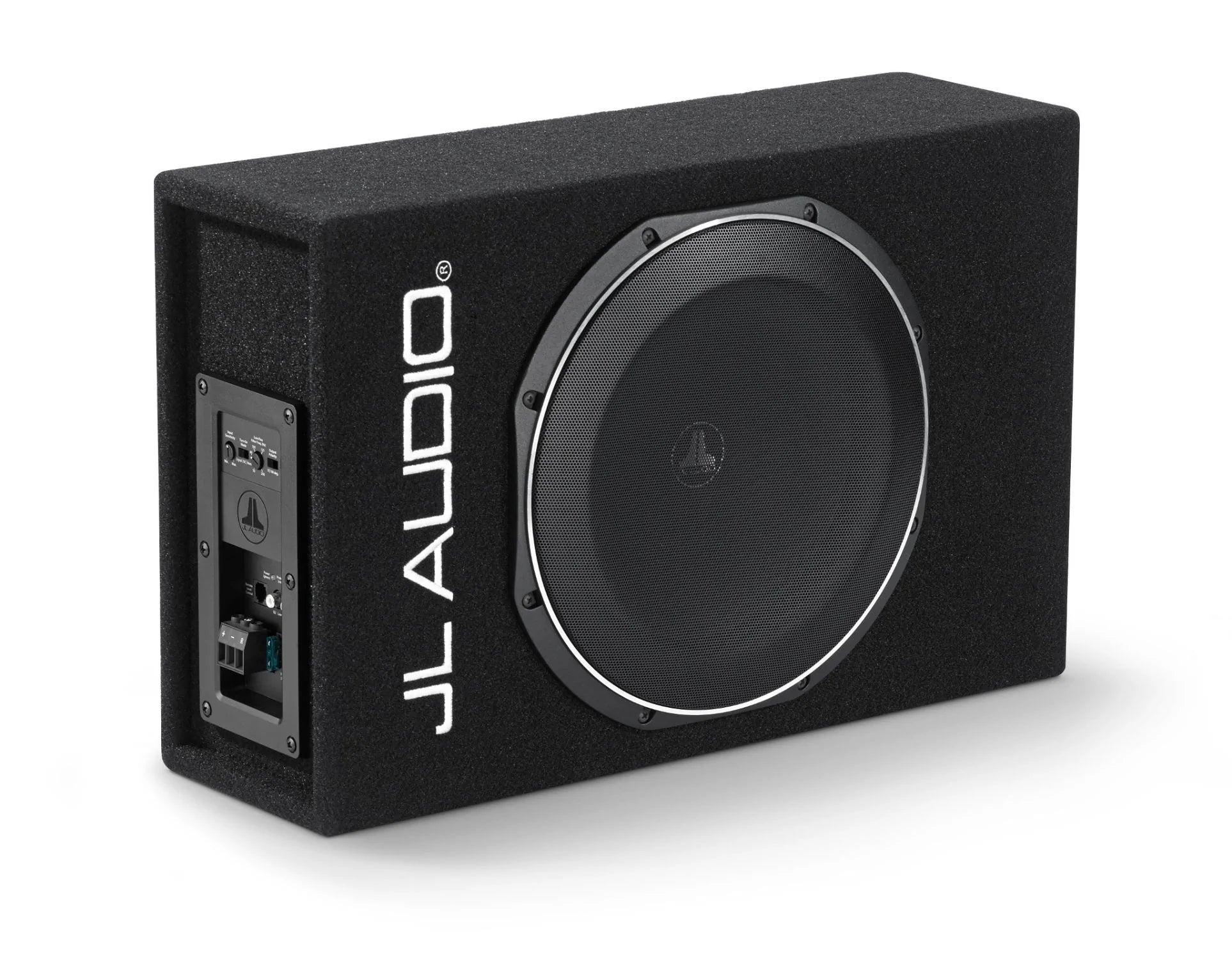

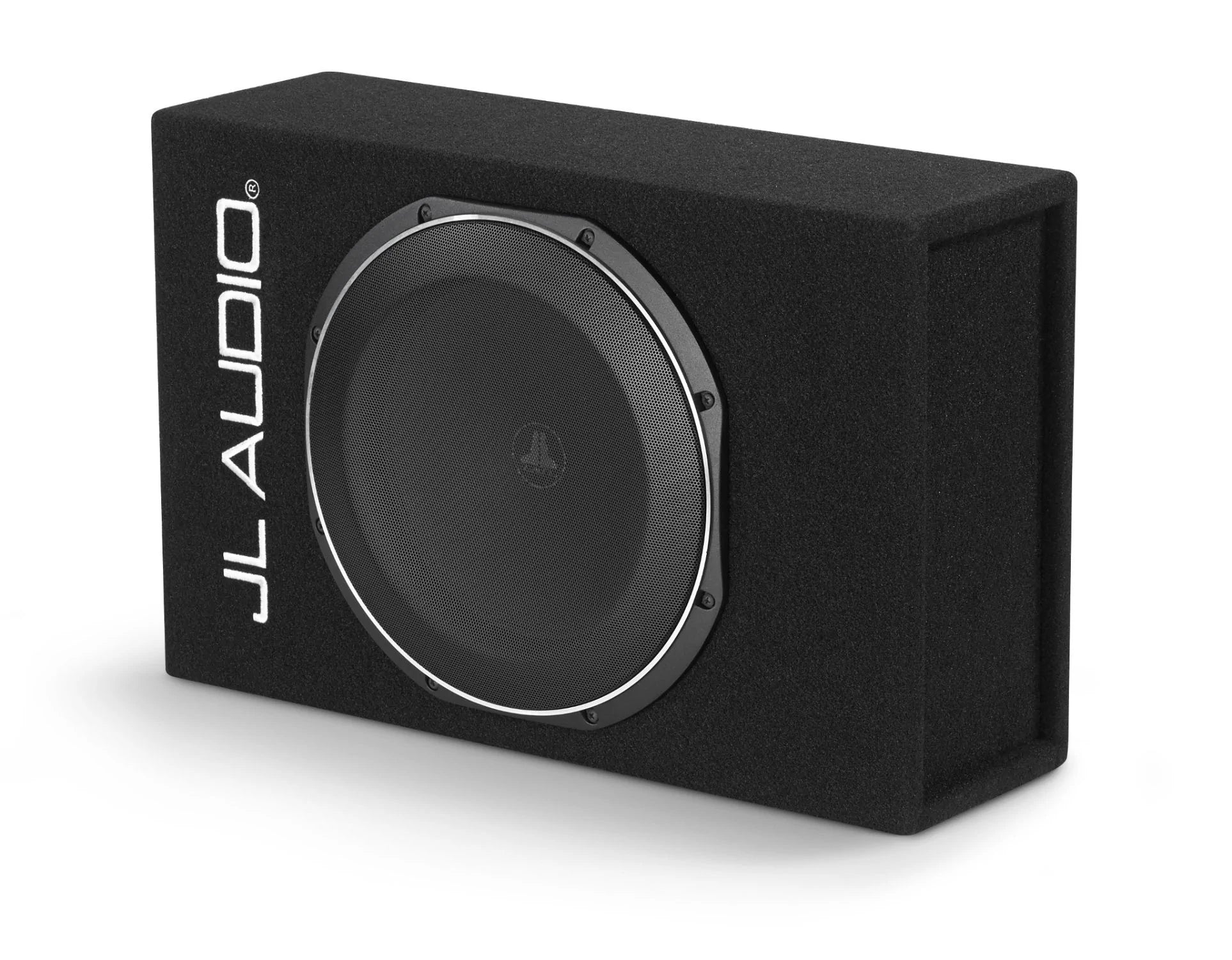

(ACS112LG-TW1) AMPLIFIED SUBWOOFER SYSTEM WITH SINGLE 12TW1-0.25 SUBWOOFER, BUILT-IN 400W CLASS D AMPLIFIER, BLACK CARPET - SEALED ENCLOSURE

OVERVIEW:

• In PowerWedge+™ systems, the power is built right into the subwoofer system. Housing a proprietary Class D amplifier, this subwoofer system employs our exclusive DCD™ amplifier technology to extract maximum output from its specially engineered, ultra low-impedance TW1 driver. By combining direct power conversion with an ultra-high current output section, DCD™ amplifiers are free of conventional switching power supplies, enabling them to generate remarkable power with unprecedented efficiency.
• Harnessing the performance and insanely small box requirements of the TW1 Subwoofer, this subwoofer system is designed to deliver amazing sub-bass from an enclosure that is only 6.625 in. (168 mm) deep. Its low-profile enclosure design has been carefully engineered to the optimum sealed enclosure alignment for the 12TW1 driver and has been fine-tuned through extensive real-world listening.
• Integration to OEM and aftermarket head units is a snap thanks to a variety of input options and automatic turn-on capability (via signal sensing or DC offset sensing). Also included is a variable frequency low-pass filter (50-200 Hz), along with output polarity control switch. Adding an optional RBC-1 remote level control (sold separately) lets you control subwoofer levels directly from the driver’s seat. A quick-disconnect power connector makes it easy to remove the subwoofer when you need the extra space.
• Note: DCD™ amplified systems use very specific components. Never use a DCD™ amplifier or its companion subwoofer(s) with incompatible, non-DCD™ products. Doing so will void the warranty and may cause severe damage.
• Finish : Black, high-grade automotive carpet with silver "JL AUDIO" embroidery on front baffle. A steel mesh grille is included to protect the Subwoofer.
• Construction : CNC-Cut High-Grade MDF
• Amplifier power : Built-in DCD™ Class D amplifier (400 W @ 0.25 Ω)
• Nominal Impedance : 0.25 Ω
• Enclosure and Subwoofer built in USA with global components



GENERAL SPECIFICATIONS:

• Continuous Power Handling (RMS) : Built-in amplifier 400 W @ 0.25 Ω
• System Nominal Impedance : 0.25 Ω
• Input Voltage Range @ RCA Inputs : 70 mV - 1.40 V RMS
• Input Voltage Range @ High-Level Inputs : 280 mV - 5.4 V RMS
• Recommended Copper Power / Ground Wire Gauge : 8 AWG wire
• Fuse Rating : 30 A (ATO or ATC)
• Enclosure Type : Sealed
• Finish : Black carpet
• Grille Included : Black Steel Mesh

SIGNAL PROCESSING:

• Filter Mode(s) : Low-Pass only
• Filter Slope(s) : 12 dB/octave
• Filter Frequency Range : 50 Hz - 200 Hz
• Output Polarity Switch : Yes
• Remote Subwoofer Level Control : Optional (RBC-1)

PHYSICAL SPECIFICATIONS:

• External Width (W) : 21 in / 533 mm
• External Height (H) : 13.5 in / 343 mm
• External Depth (D1) : 6.625 in / 168 mm
• Net Weight : 29.2 lb / 13.24 kg
