HIFONICS A1200.4D

HIFONICS

ALPHA( A1200.1D) SERIES CLASS-D COMPACT 1200 WATTS 4-OHM STABLE MONOBLOCK CAR AUDIO AMPLIFIER

ABOUT THIS ITEM:

• 4 ohms: 100 Watts x 4 chan. / 2 ohms: 200 Watts x 4 chan. / 4 Ohms Bridged : 400 Watts x 2 chan.
• Total power output: 800 Watts
• Pulse Width Modulated MOSFET power supply
• Accu-Cross crossovers allow for complete control of the signal directing to all speakers
• The Ultra-Fi™ MOSFET is designed for music production vs just electronics output power. It produces very musical high power with high efficiency for cooling and minimal distortion
• Frequency Response: 10 - 250 Hz

SPECIFICATIONS:

• Hifonics A1200.4D
• Alpha Series Class-D Compact 1200 Watt 4-Channel Car Audio Amplifier
• Max Power Rating:
• Total power output: 1200 Watts
• Pulse Width Modulated MOSFET power supply
• Wired remote bass level control included
• LED power (green) and protect (red) indicators
• Accu-Cross crossovers allow for complete control of the signal directing to all speakers
• Flexible installation allows this amplifier to run in four channel or bridged 2-Channel mode
• Preamp RCA outputs to daisy chain multiple amps
• 3-way protection circuitry (thermal, overload, and speaker short protection)
• Heavy duty aluminum alloy heat-sink
• The Ultra-Fi™ MOSFET is designed for music production vs just electronics output power. It produces very musical high power with high efficiency for cooling and minimal distortion
• Frequency Response: 10 - 250 Hz
• Total Harmonic Distortion (THD): <1%
• Signal to Noise Ratio: >85 dB

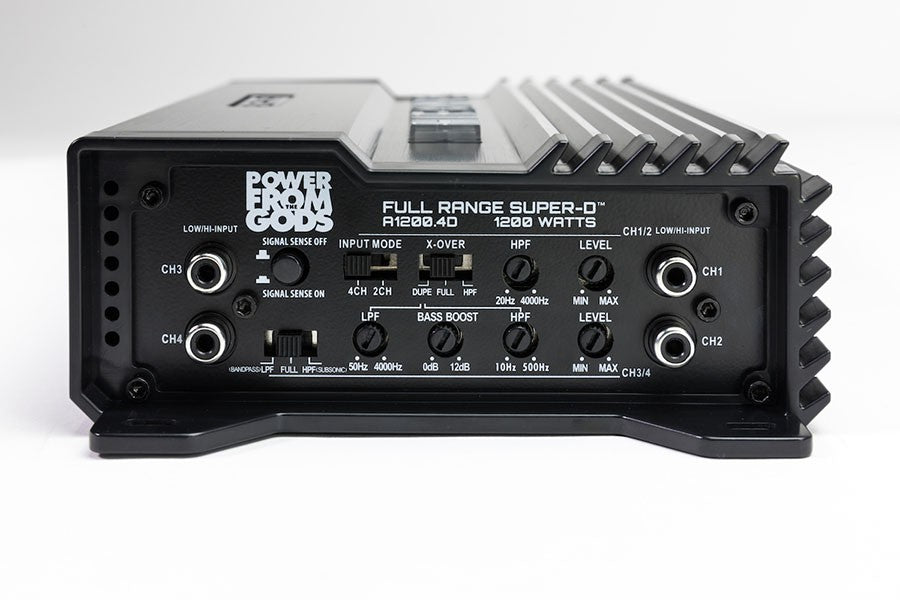

• Crossovers (Switched Input Mode):
• Variable high-pass crossover: 20Hz - 4kHz (DUPE MODE: 10Hz - 500Hz)
• Variable low-pass crossover (DUPE MODE): 50 - 4 kHz, 12 dB/octave
• Bass Boost: 0-12dB @ 45Hz
• Fusing: Use External Fuse

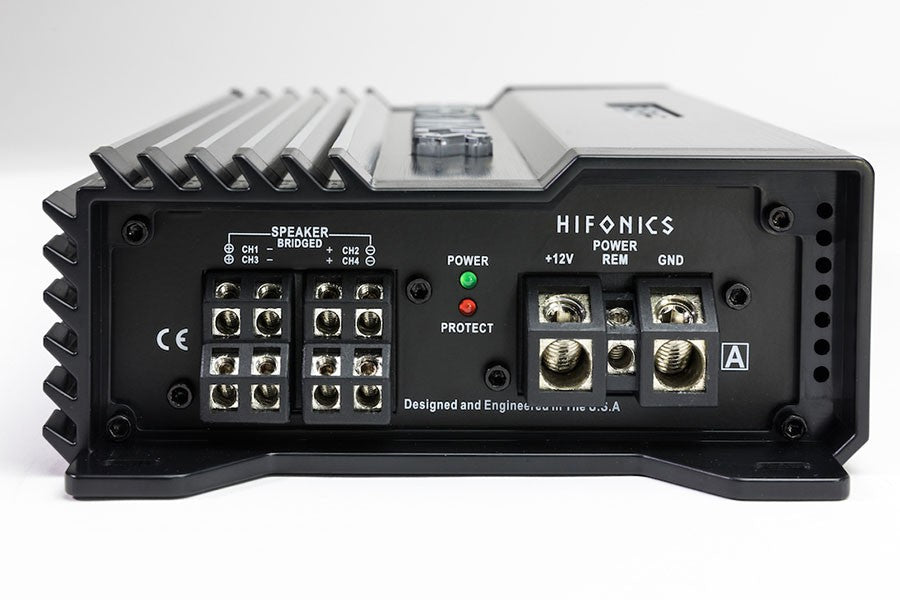

• Power Terminal 12V/GND: 12 AWG
• Dimensions: 9.25"W x 5.75"D x 2.37"H
