HIFONICS A1000.2D

HIFONICS

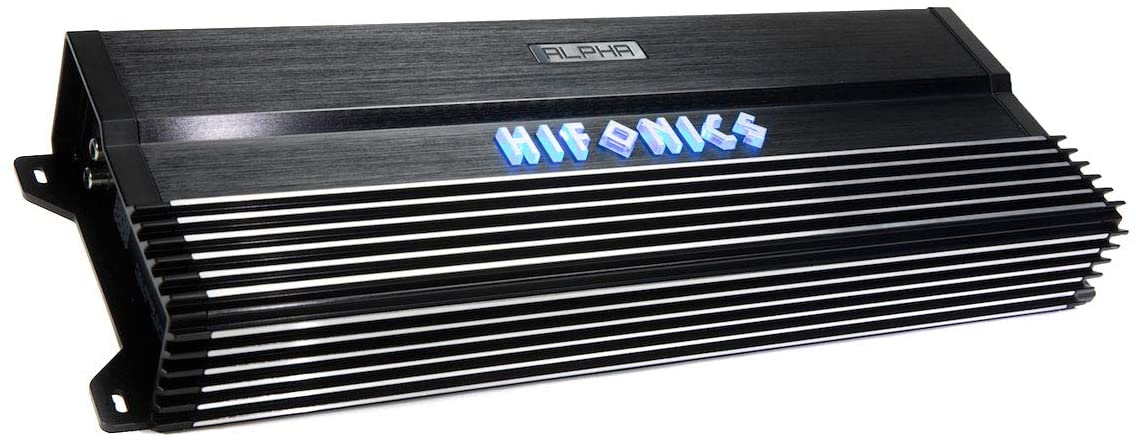

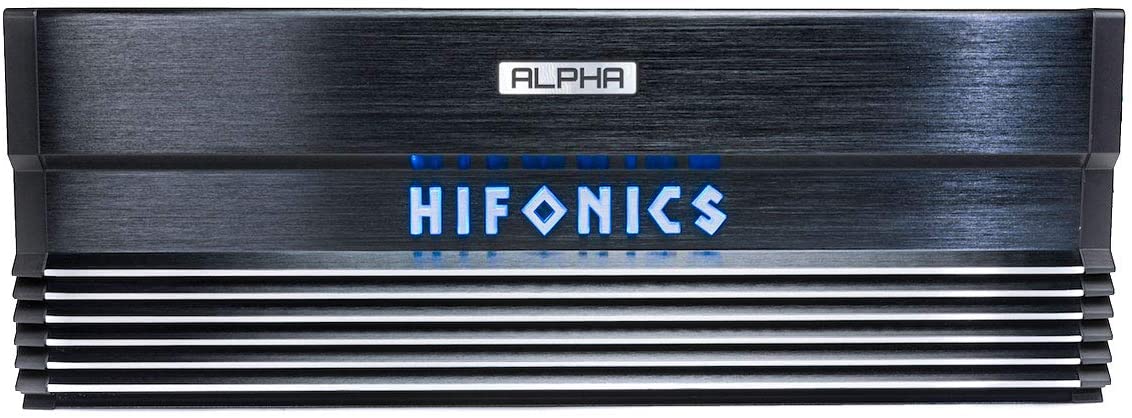

ALPHA( A1000.2D) AMPLIFIER-1000 WATTS SUPER CLASS D, MONO, AUTO ON, NICKEL PLATED, REMOTE CONTROL, ALUMINUM HEAT SINK, SILVER/BLUE

COMPACT DESIGN

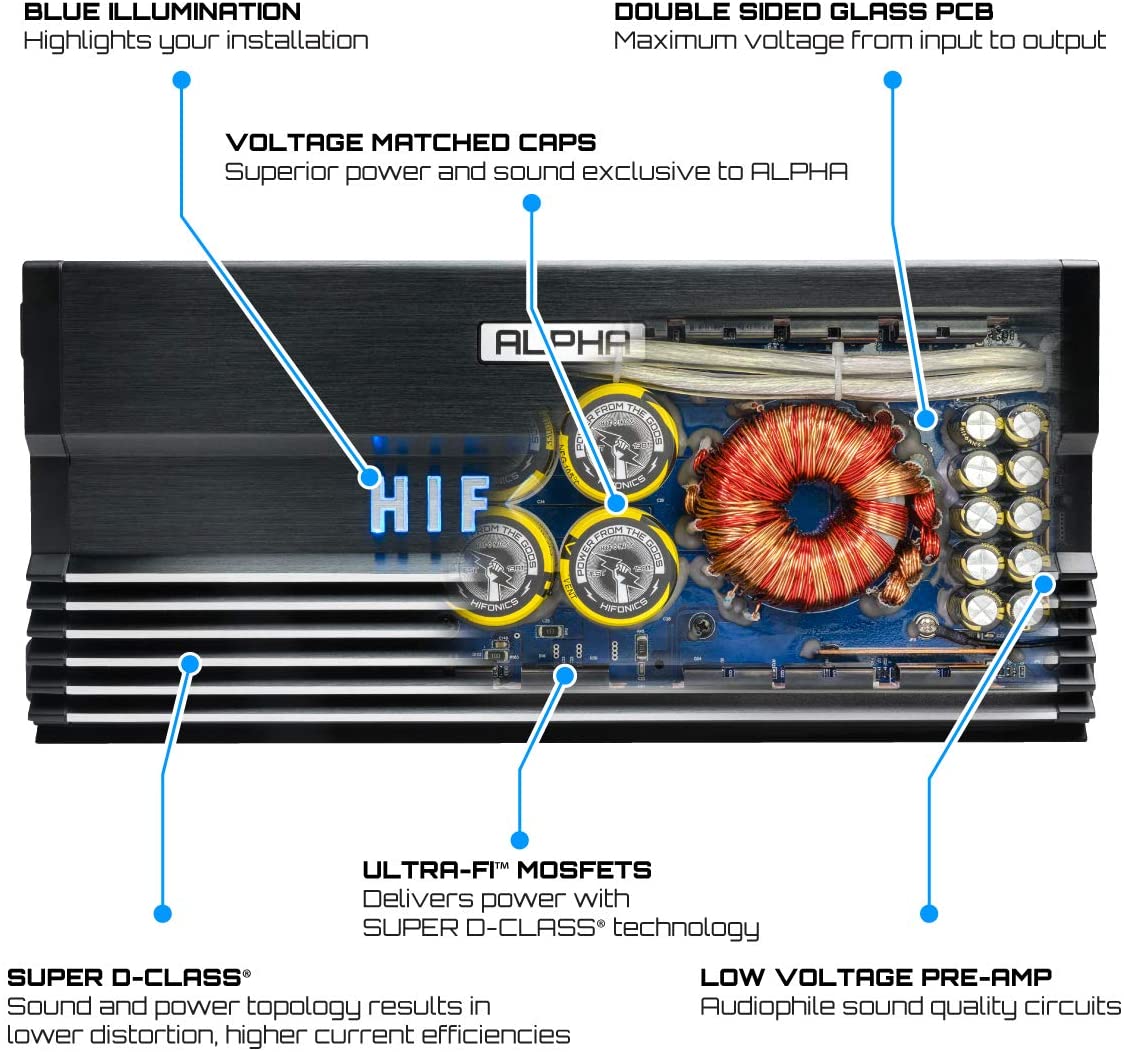

When comparing the innovative ALPHA designs to traditional Hifonics amplifier layouts, the difference is amazing. The ALPHA footprint is reduced by 25% over standard Hifonics amplifiers, which the engineers accomplish without any reduction in aluminum mass-to-power ratio.

POWERFUL SOUND

This intense design engineering and circuit design has led to very low noise sound quality pre-amplifier sections with electronic components with minimal crosstalk. This is all accomplished with surface mount component and thick PC boards. The crossovers have been redesigned to maximize sound shaping controls across all amplifiers.

REMOTE BASS CONTROL

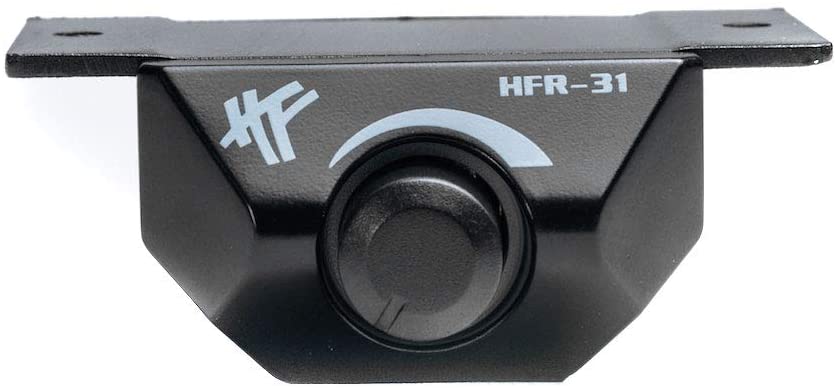

All Mono and five channel amplifiers include an HFR-31 bass remote to put the bass control at arm’s length. The amplifiers protection condition is also shown by blue illumination for normal operation and red for a short being present that requires the attention of an installer.

ABOUT THIS ITEM:

• Super Class D Amp - This 1000 watt, 1 Channel, 1 Ohm amplifier has been developed over four decades of engineering to deliver the highest level of sound quality and power efficiency.
• Temperature Controlling Heat Sink - The ultra-fine MOSFET designed specifically for music production helps limit distortions and effectively cools the amplifier by transferring to the aluminum alloy heat sink.

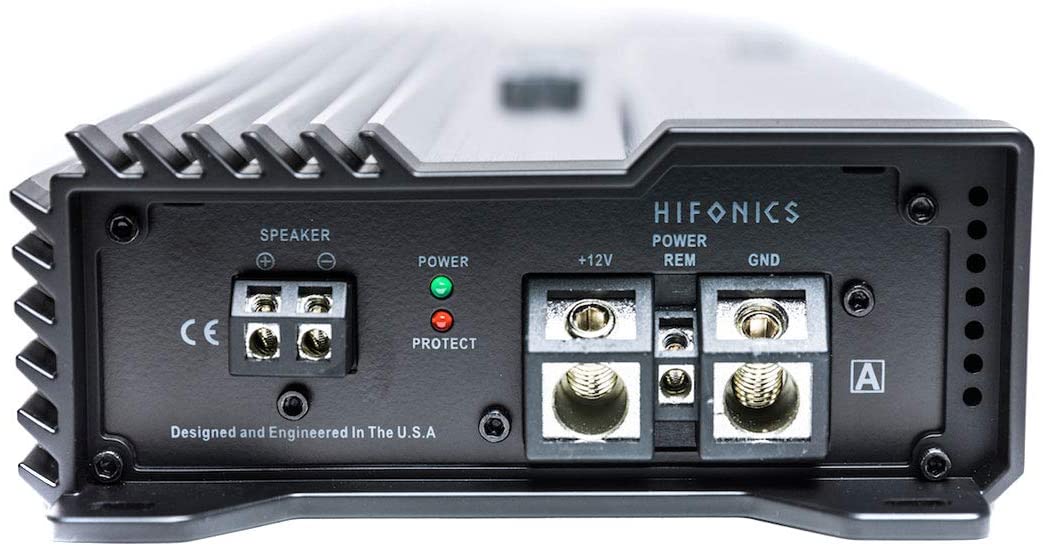

• High Quality Output Connections - The connections can affect audio quality which is why we designed the Best, with nickel plated high temperature impact resistant connections and hex screw terminals. Erosion resistant and withstands rigorous use.
• Bass Remote Included - Adjust the Bass frequencies from the control which can be mounted anywhere in your vehicle. Create a custom look with the smooth potentiometer and ringed illumination in a satin black finish.
• Automatic Turn On - Directly wired into your source unit, this allows the amplifier to power up with your vehicle. This is beneficial to more efficiently save battery life with auto shut off and power on.

SPECIFICATIONS:

• CLASS : FULL RANGE SUPER D-CLASS®
• TOTAL CHANNELS : 2
• POWER @ 2 OHMS : 2 X 500 WATTS
• POWER @ 4 OHMS : 2 X 250 WATTS
• MONO BRIDGED @ 4 OHMS :  1 X 1000 WATTS
• CROSSOVER : SWITCHED LPF/FULL/HPF
• VARIABLE HIGH PASS CROSSOVER 12DB PER OCTAVE :  50Hz - 250Hz
• VARIABLE LOW PASS CROSSOVER 12DB PER OCTAVE :  50Hz - 250Hz
• TONE CONTROL/PARAMETRIC EQ :  Bass EQ
• BASS BOOST :  0~12dB@45Hz
• VARIABLE VOLTAGE : 200mV - 10V
• SIGNAL TO NOISE :  >85dB
• FREQUENCY RESPONSE :  10Hz - 45kHz
• TOTAL HARMONIC DISTORTION (THD) :  <0.05%
• SPEAKER LEVEL AUDIO INPUTS :  Yes
• POWER TERMINAL 12V/GND :  10 AWG
• SPEAKER TERMINAL WIRE GAUGE :  18 AWG
• FUSING :  USE EXTERMAL FUSE
• TURN ON CIRCUIT :  SWITCHED  REMOTE TURN-ON / SIGNAL SENSE ON
