JL AUDIO 6W3v3-4

JL AUDIO

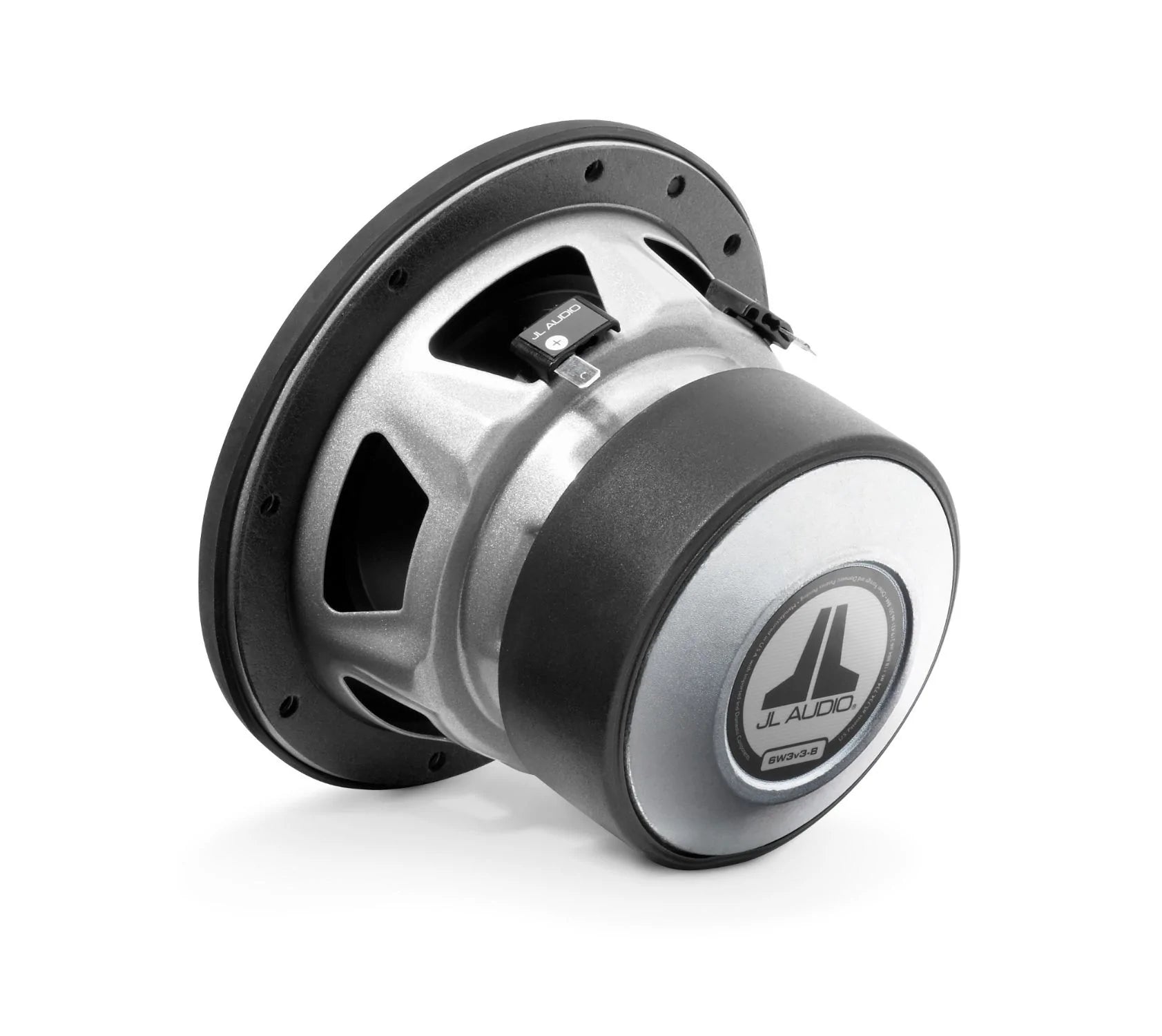

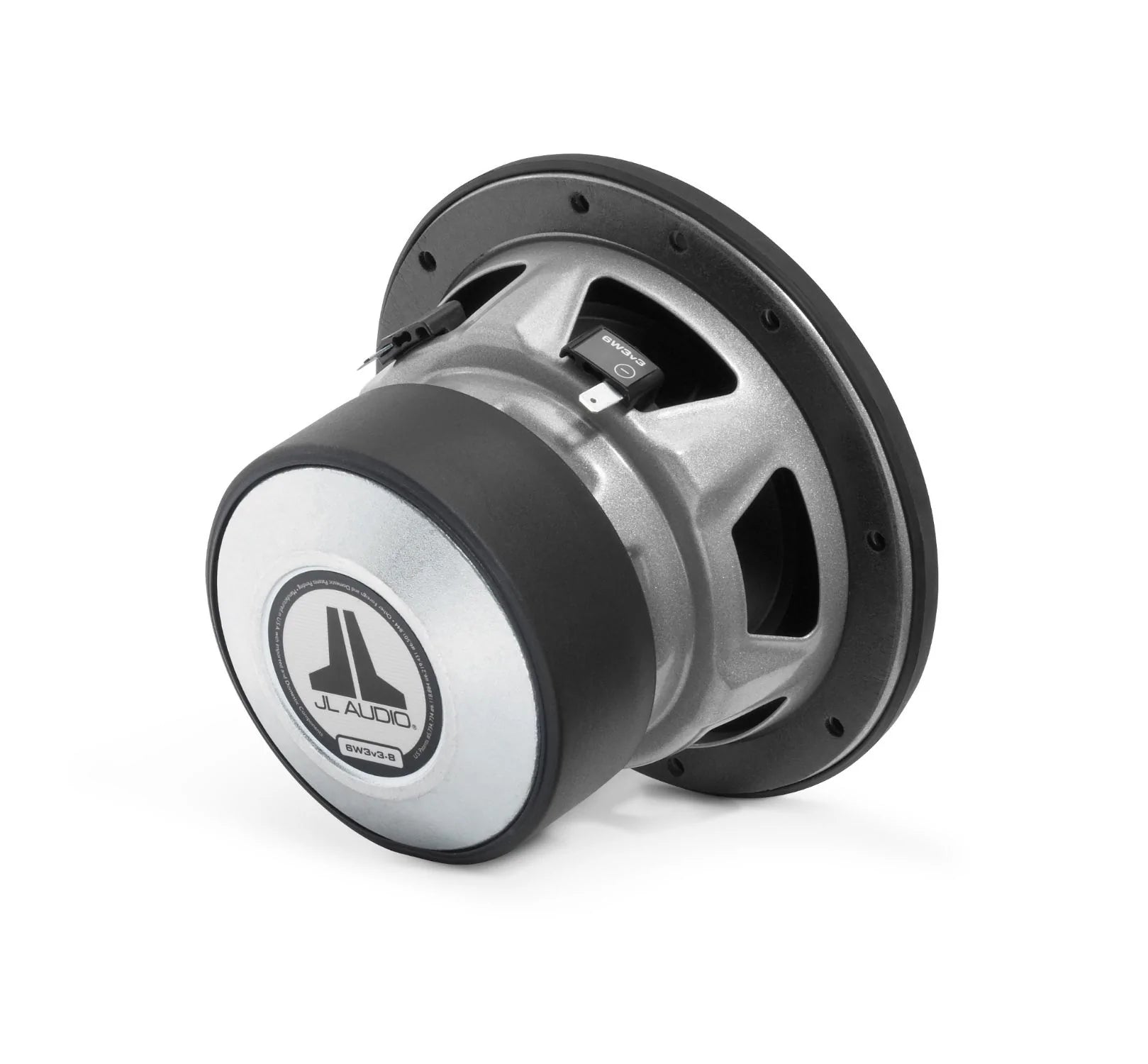

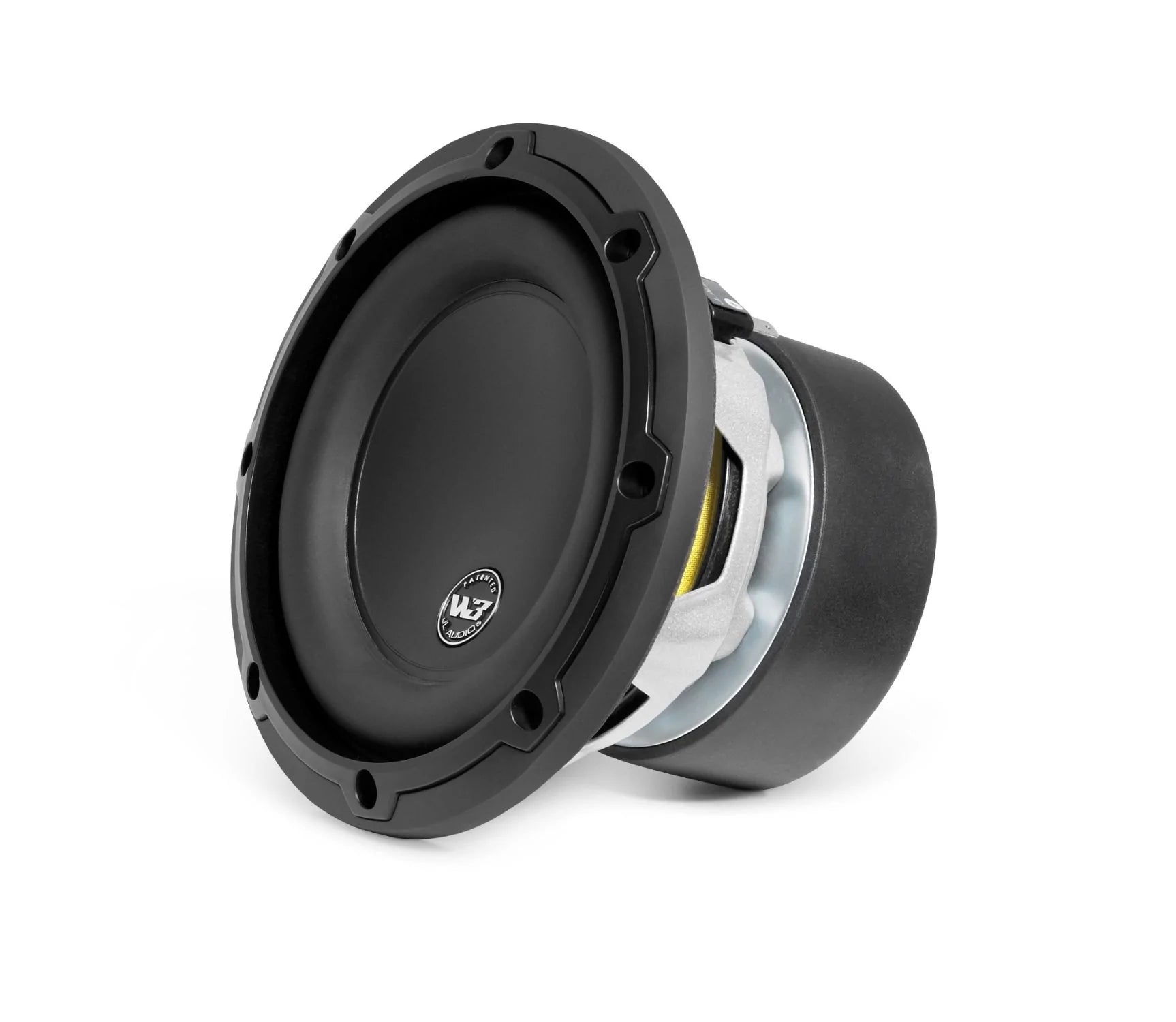

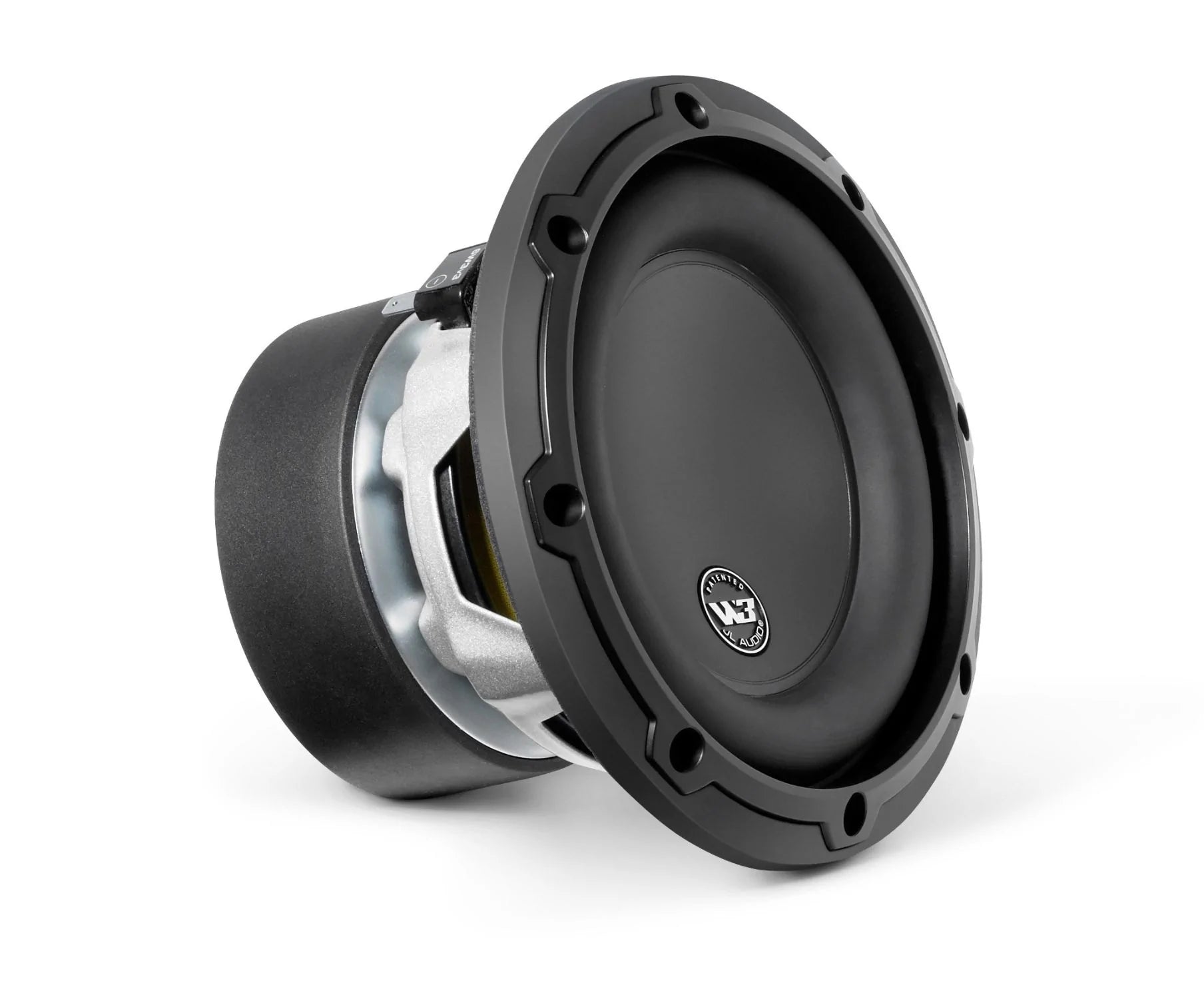

(6W3V3-4) 6.5-INCH SUBWOOFER DRIVER (150W, 4 OHM)

OVERVIEW:

• If you need a small-format subwoofer that really delivers in extremely small enclosures, this is where your search ends. The 6W3v3 is a true subwoofer, through-and-through. It employs the same technologies as its larger diameter brethren to deliver a whopping 0.35 in. (8.9 mm) one-way linear excursion.
• The 6W3v3-4 is best used with amplifier power in the 50W - 150W range and is optimized to operate in a tiny 0.15 cu. ft. (4.2 l) sealed enclosure, or a 0.25 cu. ft. (7.1 l) ported enclosure. Detailed enclosure recommendations can be found in the "Specifications" tab.

GENERAL SPECIFICATIONS:

• Continuous Power Handling (RMS) : 150 W
• Recommended Amplifier Power (RMS) : 50 - 150 W
• Nominal Impedance (Znom) : 4 Ω

PHYSICAL SPECIFICATIONS:

• Nominal Diameter : 6.5 in / 165 mm
• Overall Diameter (A) : 6.85 in / 174 mm
• Mounting Hole Diameter (B) : 5.5 in / 140 mm
• Bolt Hole Circle Diameter (C) : 6.125 in / 156 mm
• Motor Outer Diameter (D) : 4.25 in / 108 mm
• Mounting Depth (E) : 4.25 in / 108 mm
• Driver Displacement : 0.02 cu ft / 0.57 L
• Net Weight : 6.1 lb / 2.8 kg

PARAMETERS:

• Free Air Resonance (Fs) : 41.80 Hz
• Electrical “Q” (Qes) : 0.533
• Mechanical “Q” (Qms) : 11.027
• Total Speaker “Q” (Qts) : 0.508
• Equivalent Compliance (Vas) : 0.181 cu ft / 5.13 L
• One-Way Linear Excursion (Xmax)* : 0.35 in / 8.89 mm
• Reference Efficiency (no) : 0.07%
• Efficiency (1 W / 1 m)** : 80.49 dB SPL
• Effective Piston Area (Sd) : 17.36 sq in / 0.0112 sq m
• DC Resistance (Re) : 3.476 Ω

* Xmax specifications are derived via one-way voice coil overhang method with no correction factors applied.
** Efficiency (1 W / 1 m) is not an accurate indicator of a subwoofer’s output capability and should not be used as a comparison to other subwoofers to determine which one is “louder”.

SEALED ENCLOSURE SPECIFICATIONS:

• Wall Thickness : 0.5 in / 13 mm
• Front Baffle Thickness : 0.5 in / 13 mm
• Volume (net int.) : 0.15 cu ft / 4.2 L
• External Width (W) : 8.5 in / 216 mm
• External Height (H) : 8.5 in / 216 mm
• External Depth (D) : 6.25 in / 159 mm
• F3 : 58.43 Hz
• FC : 62.11 Hz
• Qtc : 0.7548

PORTED ENCLOSURE SPECIFICATIONS:

• Wall Thickness : 0.5 in / 13 mm
• Front Baffle Thickness : 0.5 in / 13 mm
• Volume (net int.) : 0.25 cu ft / 7.1 L
• External Width (W) : 14.50 in / 368 mm
• External Height (H) : 10.125 in / 257 mm
• External Depth (D) : 5.25 in / 133 mm
• Internal Slot Port Width (SW) : 4.25 in / 108 mm
• Internal Slot Port Height (SH) : 0.5 in / 13 mm
• Internal Slot Port Length (SL) : 14.75 in / 374 mm
• Port Extension Length (EL) : 13 in / 330 mm
• Tuning Frequency (Fb) : 38 Hz
• F3 : 34.92 Hz
