JL AUDIO 12W7AE-3

JL AUDIO

(12W7AE-3) 10TH ANNIVERSARY EDITION - W7 12" SUBWOOFER (1000 W, 3 Ω)

OVERVIEW:

• The 12W7AE brings serious performance to the table by combining the breakthrough of the long-excursion W7 design with a large 12-inch bore. It has been called "addictive," "seductive" and "the new subwoofer reference", by some of the world's toughest reviewers, and has earned these accolades by delivering nearly limitless dynamics, exceptional balance and world-class sound quality.
• This potent driver is best used with amplifier power in the 400W - 1000W range and is optimized to operate in a 1.375 cu. ft. (38.9 l) sealed enclosure, or a 1.75 cu. ft. (49.6 l) ported enclosure. Detailed enclosure recommendations can be found in the "Specifications" tab.
• W7AE (Anniversary Edition) Subwoofers celebrate the 10th Anniversary of the launch of the W7 subwoofers. Functionally, they are identical to the original W7's, but are they distinguished by the following cosmetic differences:

• Satin-Black Powdercoated Baskets
• Bright Anodized Surround Clamp Ring
• Anniversary Edition Cone Badge

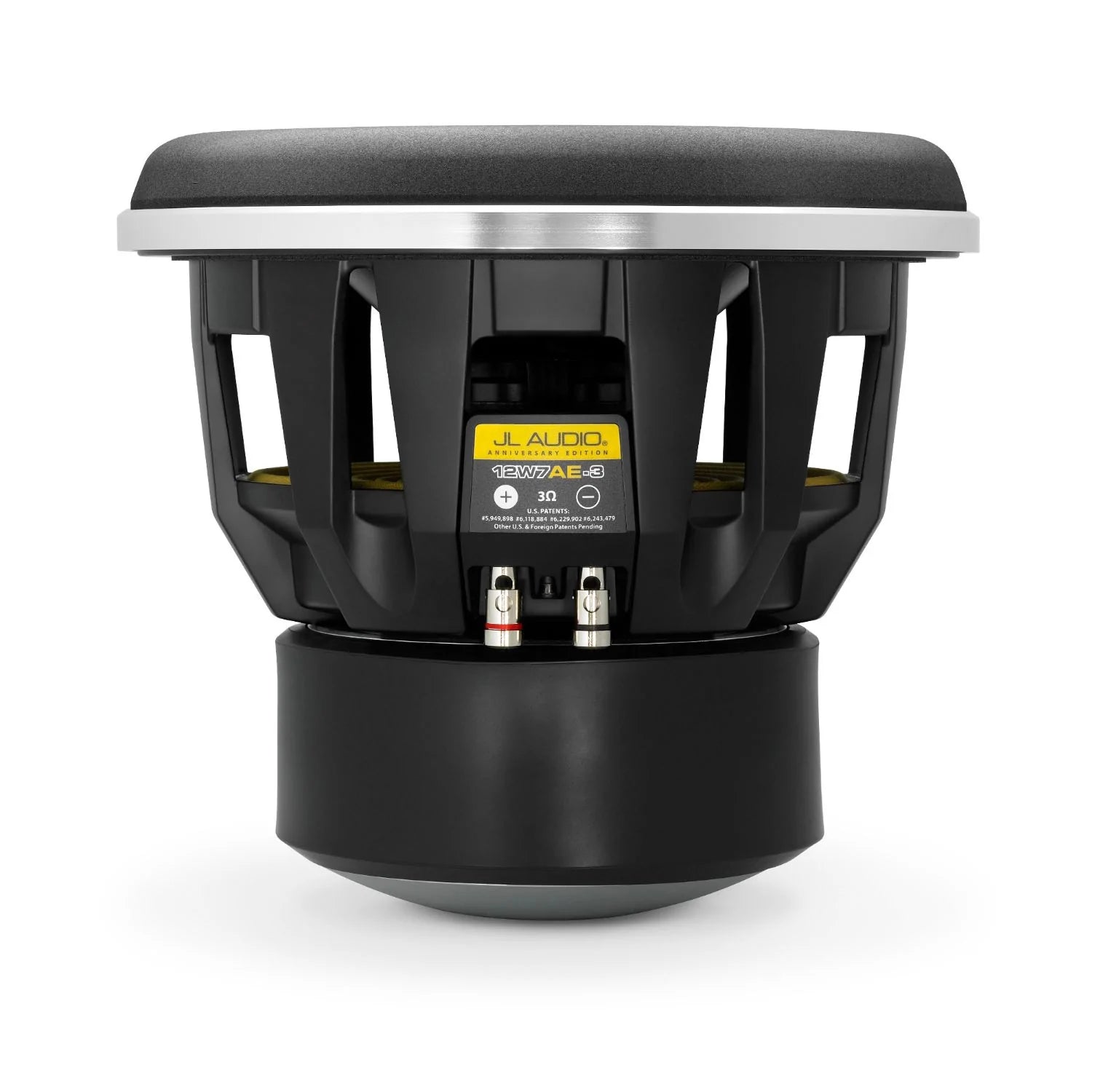

• Anniversary Edition Terminal Label

GENERAL SPECIFICATIONS:

• Continuous Power Handling (RMS) : 1000 W
• Recommended Amplifier Power (RMS) : 400 - 1000 W
• Nominal Impedance (Znom) : 3 Ω

PHYSICAL SPECIFICATIONS:

• Nominal Diameter : 12.0 in / 300 mm
• Overall Diameter (A) : 12.5 in / 318 mm
• Mounting Hole Diameter (B) : 10.5 in / 267 mm
• Bolt Hole Circle Diameter (C) : 11.27 in / 286 mm
• Motor Outer Diameter (D) : 7.5 in / 191 mm
• Mounting Depth (E) : 9.5 in / 241 mm
• Driver Displacement : 0.14 cu ft / 4.0 L
• Net Weight : 45 lb / 20.4 kg

PARAMETERS:

• Free Air Resonance (Fs) : 27.2 Hz
• Electrical “Q” (Qes) : 0.514
• Mechanical “Q” (Qms) : 7.807
• Total Speaker “Q” (Qts) : 0.482
• Equivalent Compliance (Vas) : 2.33 cu ft / 66.0 L
• One-Way Linear Excursion (Xmax)* : 1.15 in / 29 mm
• Reference Efficiency (no) : 0.25%
• Efficiency (1 W / 1 m)** : 86.2 dB SPL
• Effective Piston Area (Sd) : 84 sq in / 0.0542 sq m
• DC Resistance (Re) : 2.47 Ω

* Xmax specifications are derived via one-way voice coil overhang method with no correction factors applied.
** Efficiency (1 W / 1 m) is not an accurate indicator of a subwoofer’s output capability and should not be used as a comparison to other subwoofers to determine which one is “louder”.

SEALED ENCLOSURE SPECIFICATIONS:

• Wall Thickness : 0.75 in / 19 mm
• Front Baffle Thickness : 1.0 in / 25 mm
• Volume (net int.) : 1.375 cu ft / 38.94 L
• External Width (W) : 15 in / 381 mm
• External Height (H) : 15 in / 381 mm
• External Depth (D) : 16.125 in / 410 mm
• F3 : 40.4 Hz
• Fc : 44.7 Hz
• Qtc : 0.791

PORTED ENCLOSURE SPECIFICATIONS:

• Wall Thickness : 0.75 in / 19 mm
• Front Baffle Thickness : 1.0 in / 25 mm
• Volume (net int.) : 1.75 cu ft / 49.6 L
• External Width (W) : 22.75 in / 578 mm
• External Height (H) : 15 in / 381 mm
• External Depth (D) : 15.875 in / 403 mm
• Internal Slot Port Width (SW) : 1.875 in / 48 mm
• Internal Slot Port Height (SH) : 13.5 in / 343 mm
• Internal Slot Port Length (SL) : 24.75 in / 629 mm
• Port Extension Length (EL) : 7.9375 in / 202 mm
• Tuning Frequency (Fb) : 36.7 Hz
• F3 : 32.8 Hz

In-Store Purchase only

SKU # 92115
