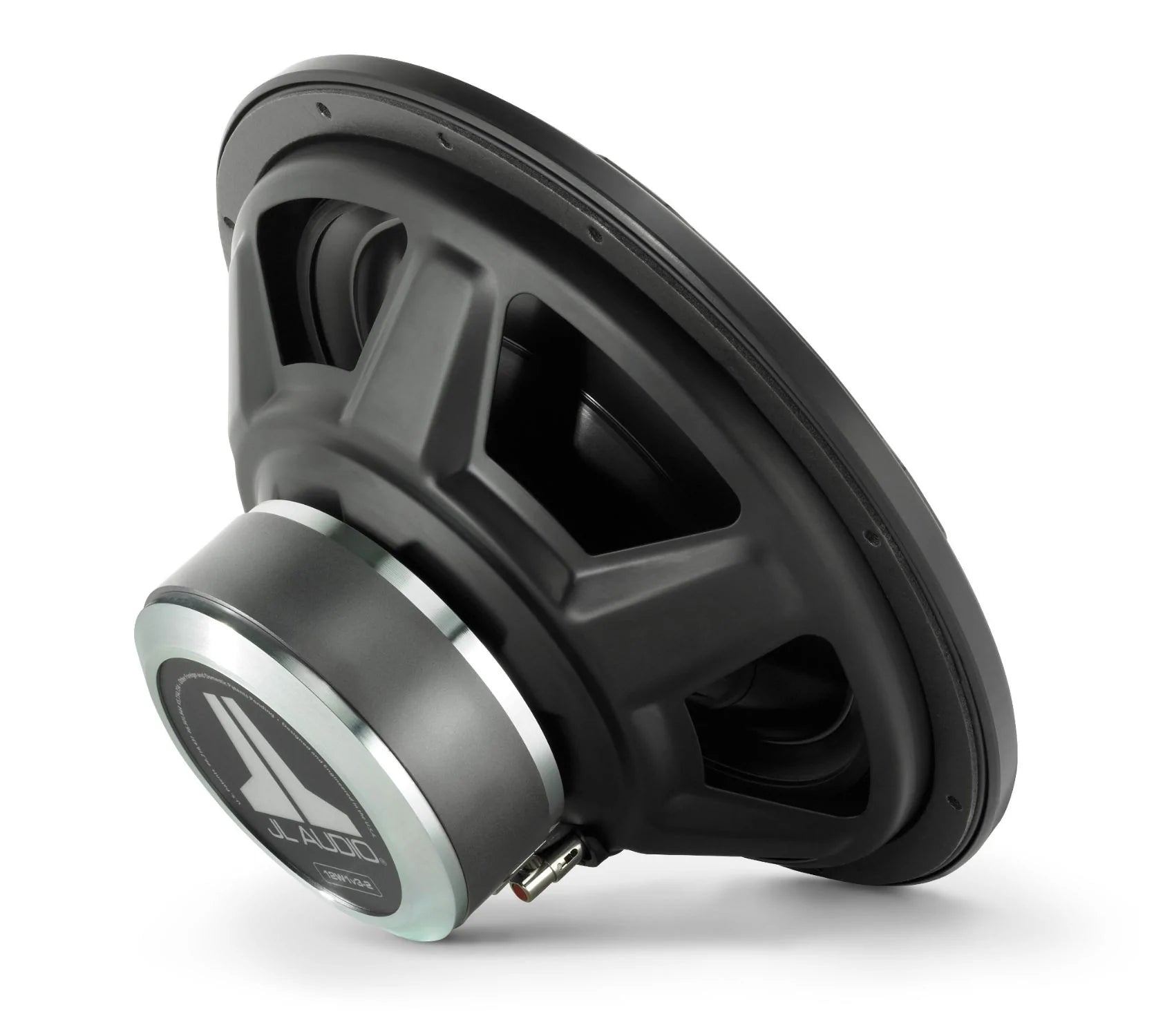

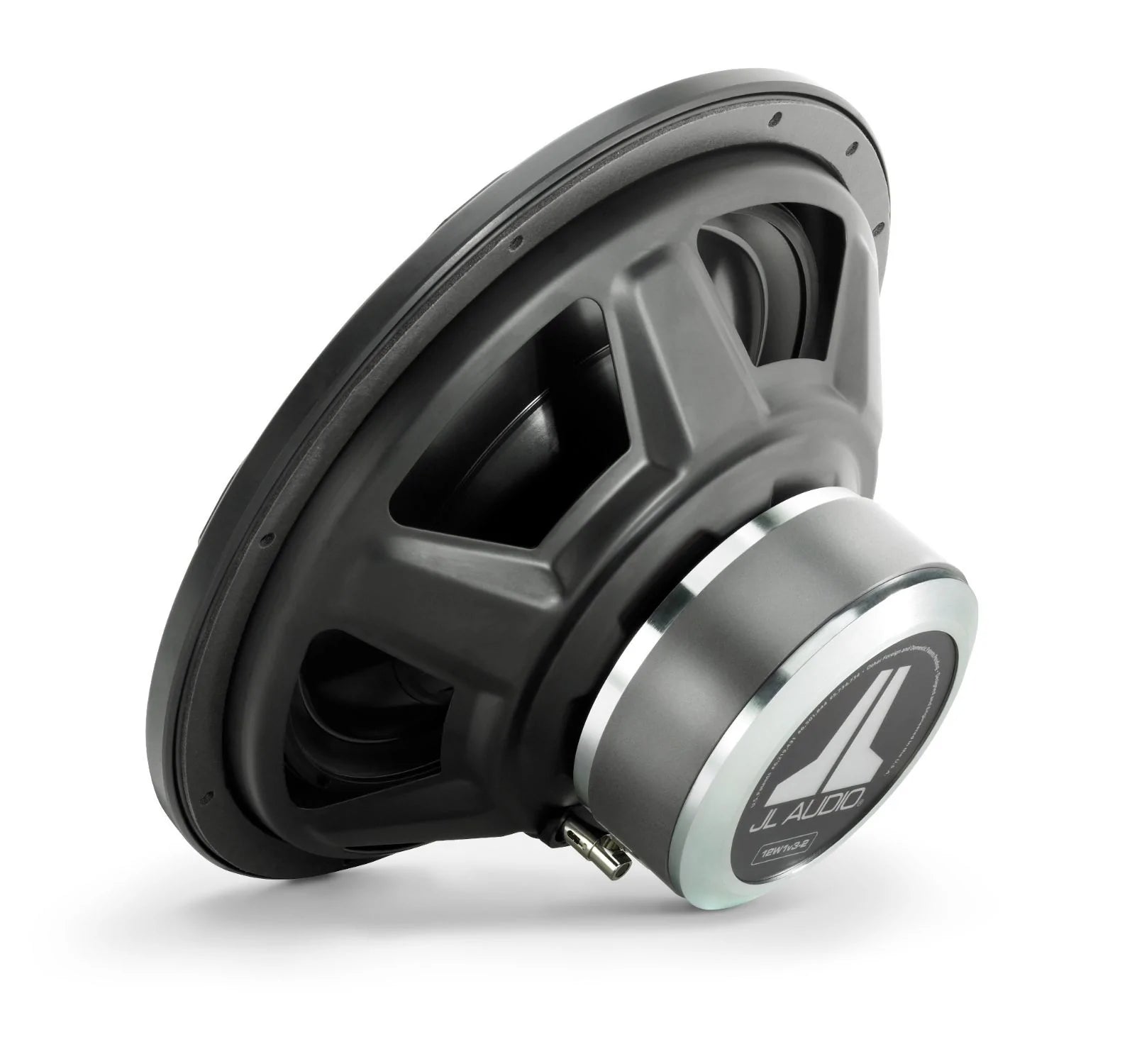

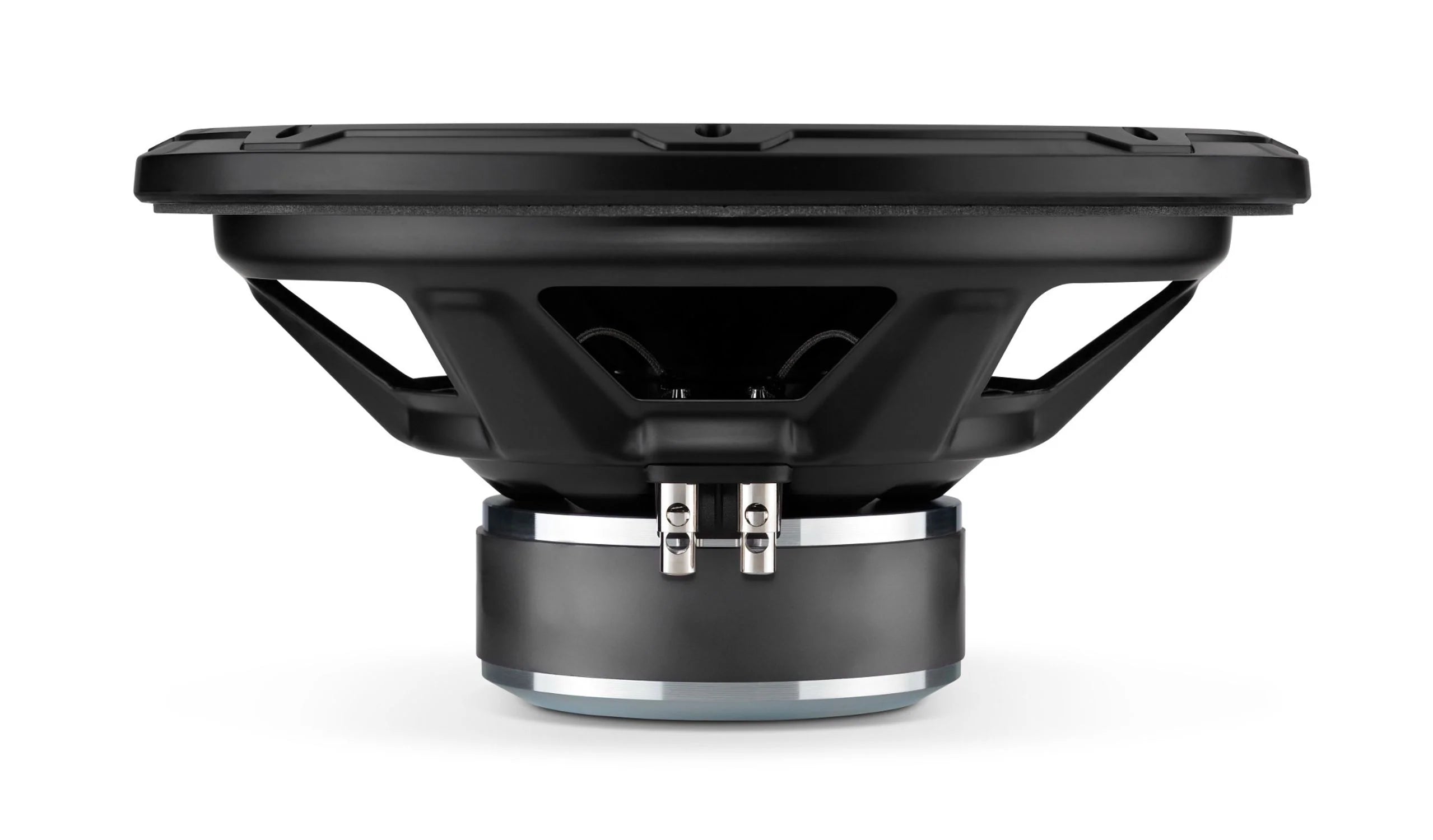

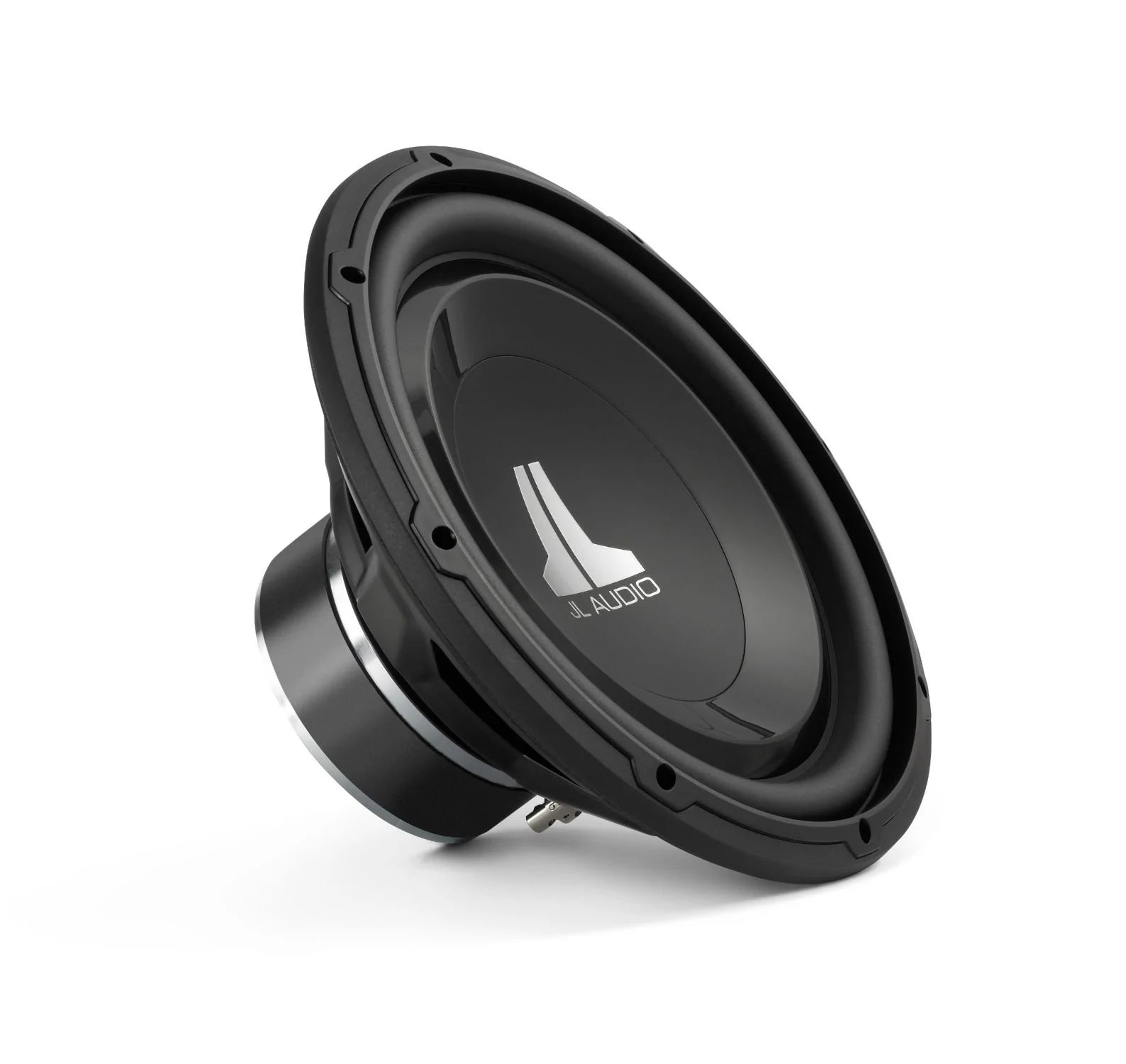

JL AUDIO 12W1v3-4

JL AUDIO

(12W1V3-4) 12-INCH SUBWOOFER DRIVER (300W, 4 OHM)

OVERVIEW:

• The 12W1v3 is a lightweight 12-inch driver with excellent performance capabilities at moderate power levels. It features moderate mounting depth with no pole-vent, so the rear of the motor structure can be placed directly against an enclosure boundary. Excellent excursion capability and linearity allow it to reproduce sub-bass with shocking extension and quality. Several of JL Audio's proprietary technologies enhance its performance and reliability.
• The 12W1v3-4 is best used with amplifier power in the 75W - 300W range and is optimized to operate in a compact 1.10 cu. ft. (31.5 l) sealed enclosure. Detailed enclosure recommendations can be found in the "Specifications" tab.

GENERAL SPECIFICATIONS:

• Continuous Power Handling (RMS) : 300 W
• Recommended Amplifier Power (RMS) : 75 - 300 W
• Nominal Impedance (Znom) : 4 Ω

PHYSICAL SPECIFICATIONS:

• Nominal Diameter : 12.0 in / 300 mm
• Overall Diameter (A) : 12.5 in / 318 mm
• Mounting Hole Diameter (B) : 11.0625 in / 281 mm
• Bolt Hole Circle Diameter (C) : 11.7 in / 297 mm
• Motor Outer Diameter (D) : 5.25 in / 133 mm
• Mounting Depth (E) : 5.41 in / 137 mm
• Driver Displacement : 0.052 cu ft / 1.47 L
• Net Weight : 12.2 lb / 5.5 kg

PARAMETERS:

• Free Air Resonance (Fs) : 26.21 Hz
• Electrical “Q” (Qes) : 0.535
• Mechanical “Q” (Qms) : 8.2
• Total Speaker “Q” (Qts) : 0.502
• Equivalent Compliance (Vas) : 2.706 cu ft / 76.63 L
• One-Way Linear Excursion (Xmax)* : 0.45 in / 11 mm
• Reference Efficiency (no) : 0.25%
• Efficiency (1 W / 1 m)** : 86.1 dB SPL
• Effective Piston Area (Sd) : 81.426 sq in / 0.0525 sq m
• DC Resistance (Re) : 3.915 Ω

* Xmax specifications are derived via one-way voice coil overhang method with no correction factors applied.
** Efficiency (1 W / 1 m) is not an accurate indicator of a subwoofer’s output capability and should not be used as a comparison to other subwoofers to determine which one is “louder”.

SEALED ENCLOSURE SPECIFICATIONS:

• Wall Thickness : 0.75 in / 19 mm
• Front Baffle Thickness : 0.75 in / 19 mm
• Volume (net int.) : 1.10 cu ft / 31.5 L
• External Width (W) : 16 in / 406 mm
• External Height (H) : 16 in / 406 mm
• External Depth (D) : 11 in / 279 mm
• F3 : 39.63 Hz
• FC : 48.75 Hz
• Qtc : 0.9338

PORTED ENCLOSURE SPECIFICATIONS:

• Wall Thickness : 0.75 in / 19 mm
• Front Baffle Thickness : 0.75 in / 19 mm
• Volume (net int.) : 1.6 cu ft / 45.3 L
• External Width (W) : 25 in / 635 mm
• External Height (H) : 15.5 in / 394 mm
• External Depth (D) : 13 in / 330 mm
• Internal Slot Port Width (SW) : 1.5 in / 38 mm
• Internal Slot Port Height (SH) : 14 in / 356 mm
• Internal Slot Port Length (SL) : 30.75 in / 781 mm
• Port Extension Length (EL) : 17 in / 432 mm
• Tuning Frequency (Fb) : 31.79 Hz
• F3 : 31.41 Hz

In-Store Purchase only

SKU # 92083
