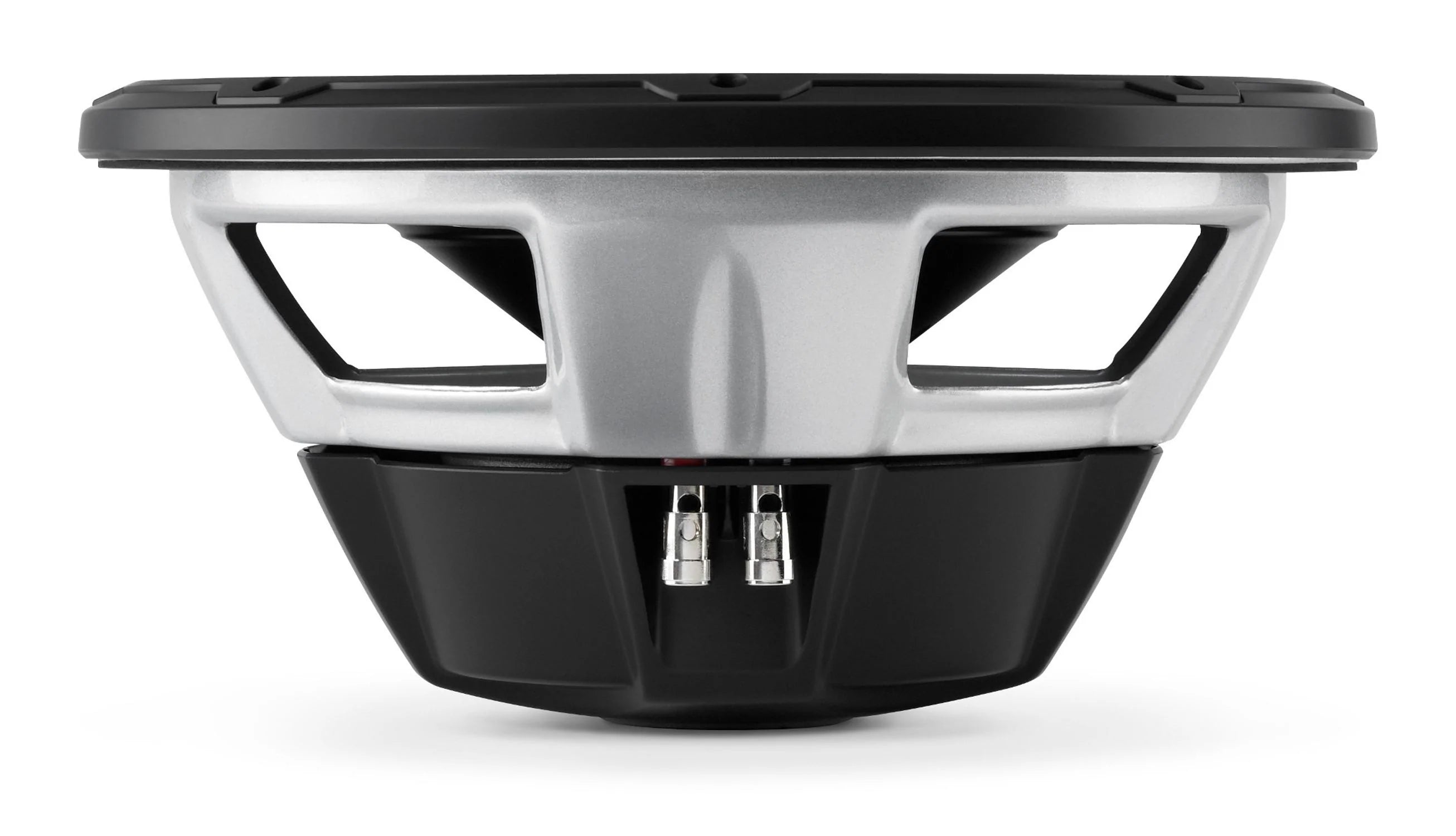

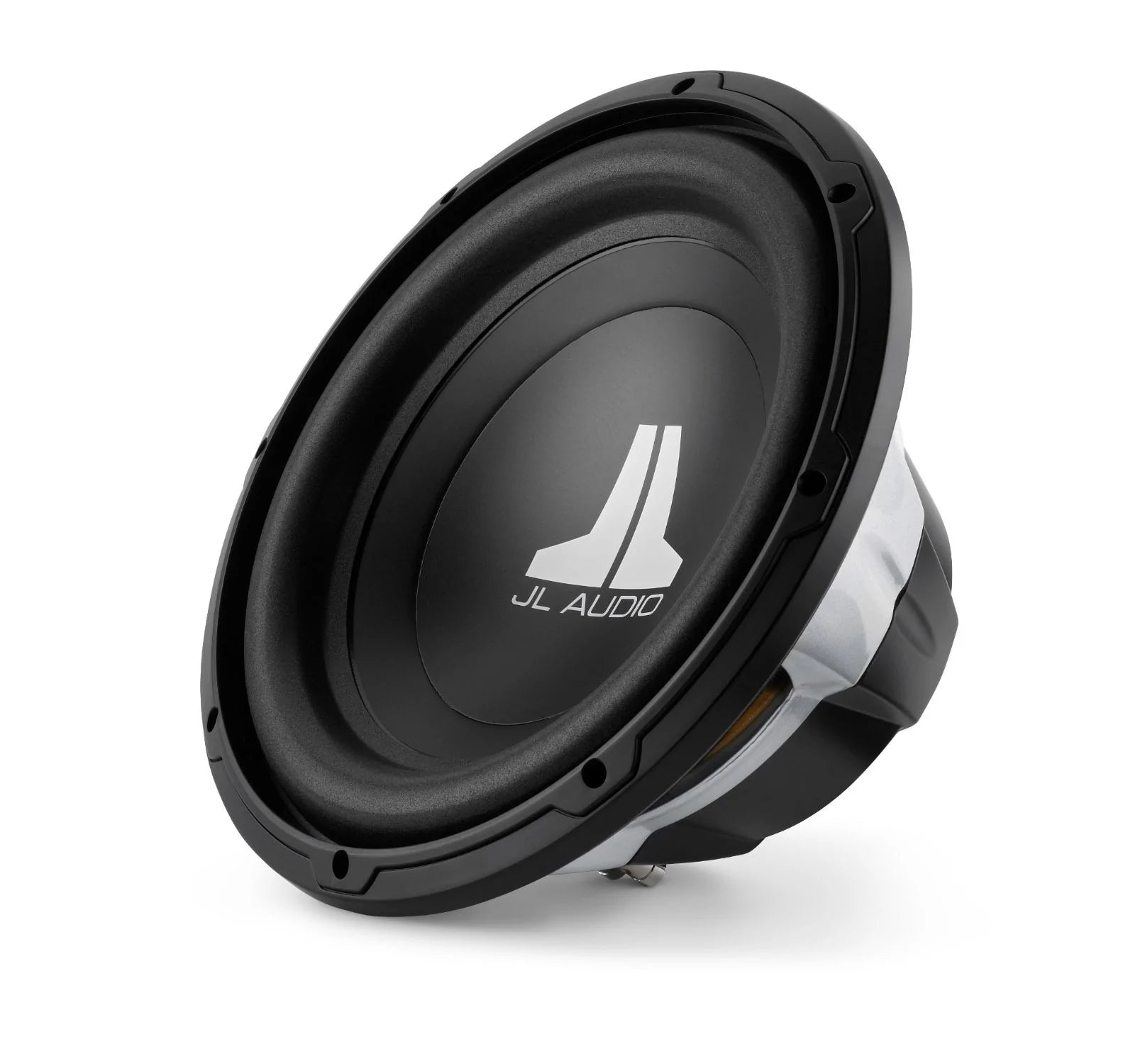

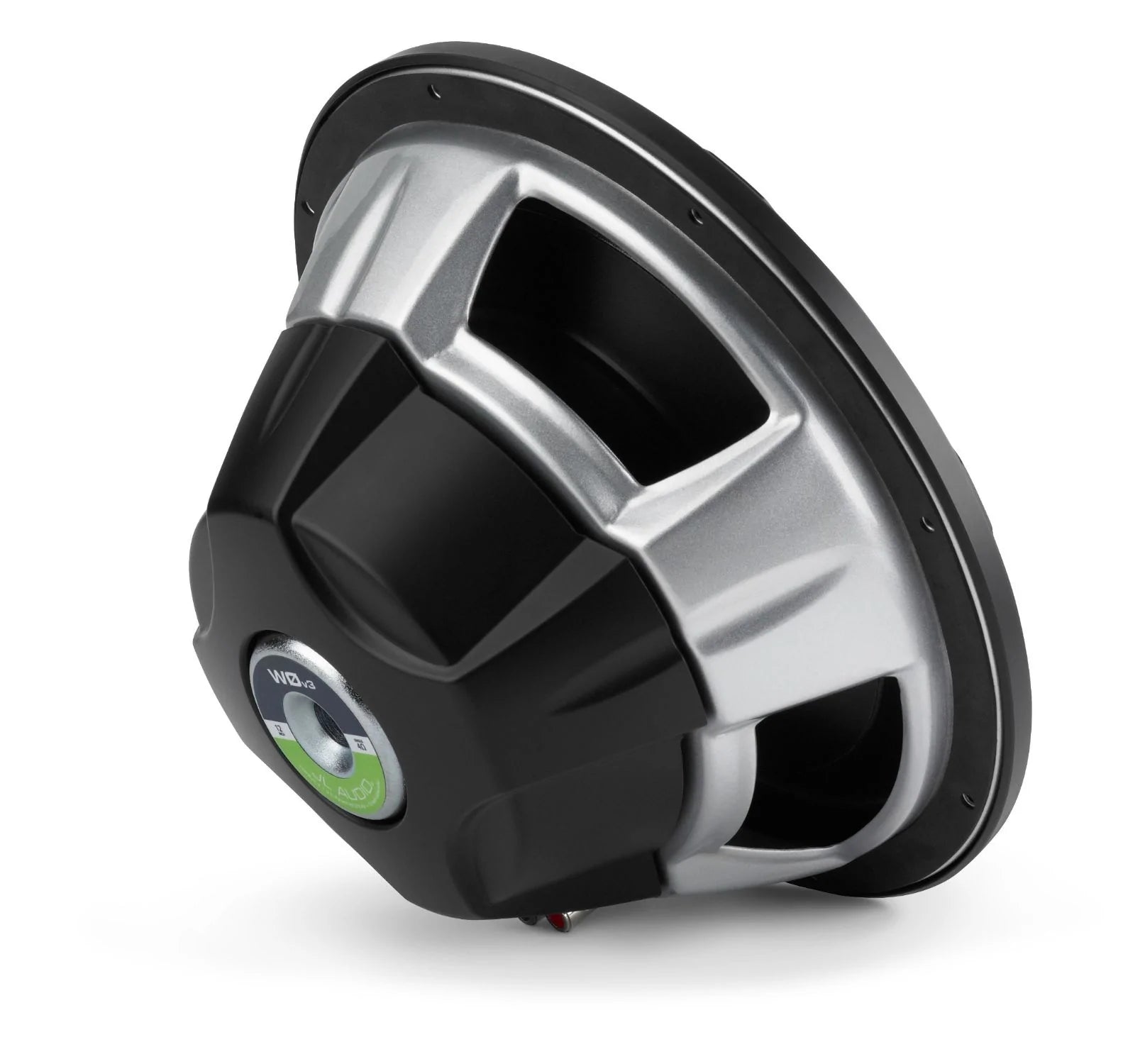

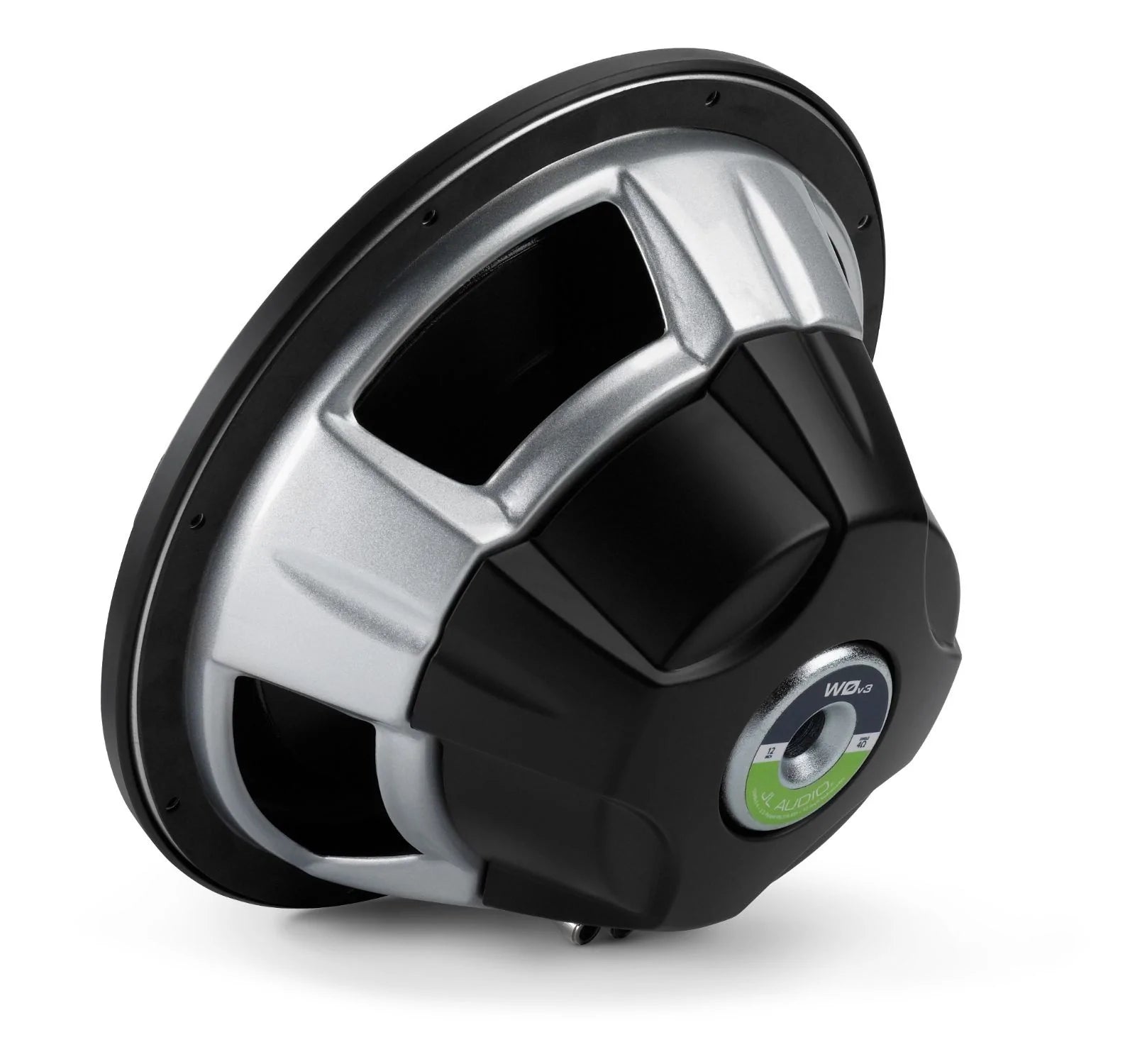

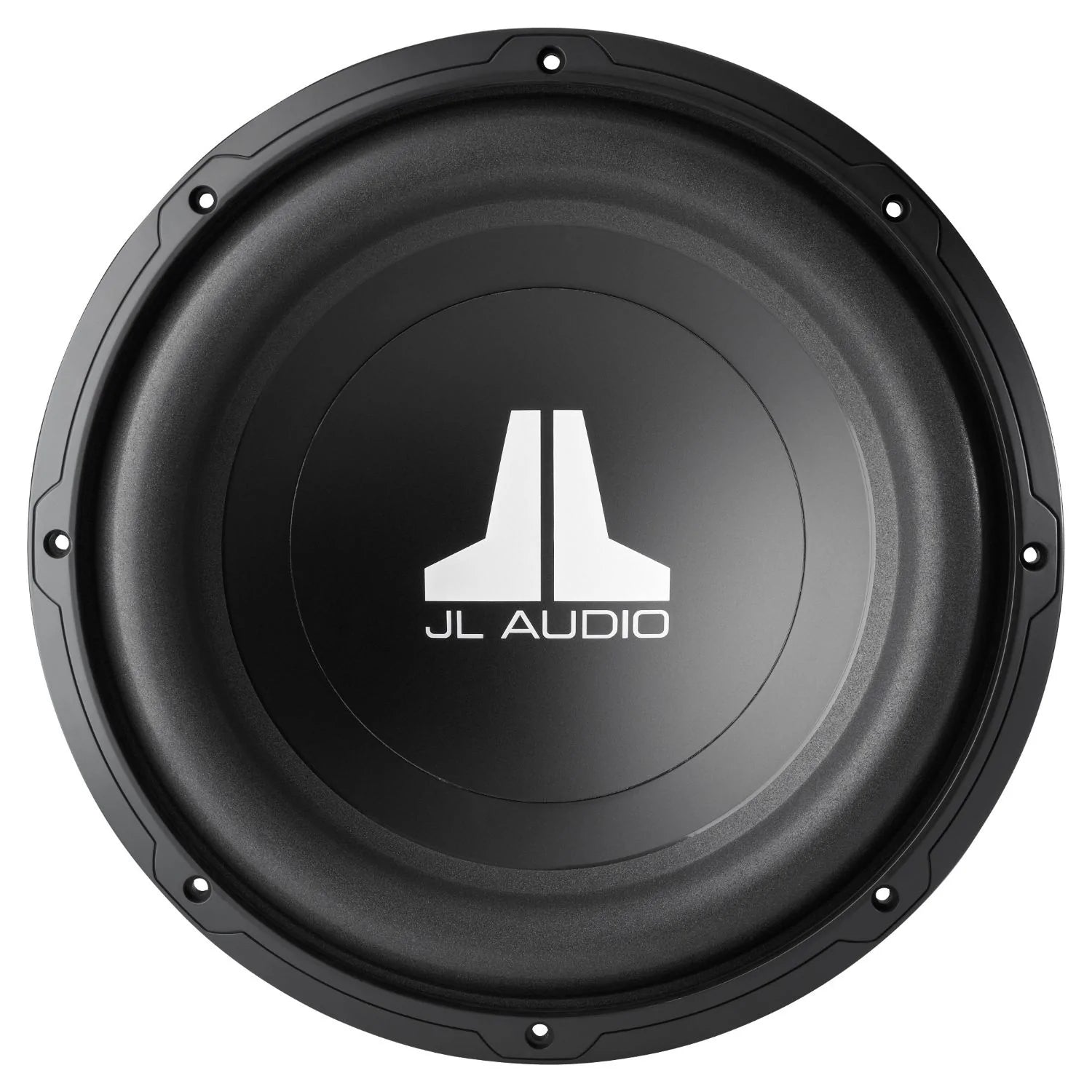

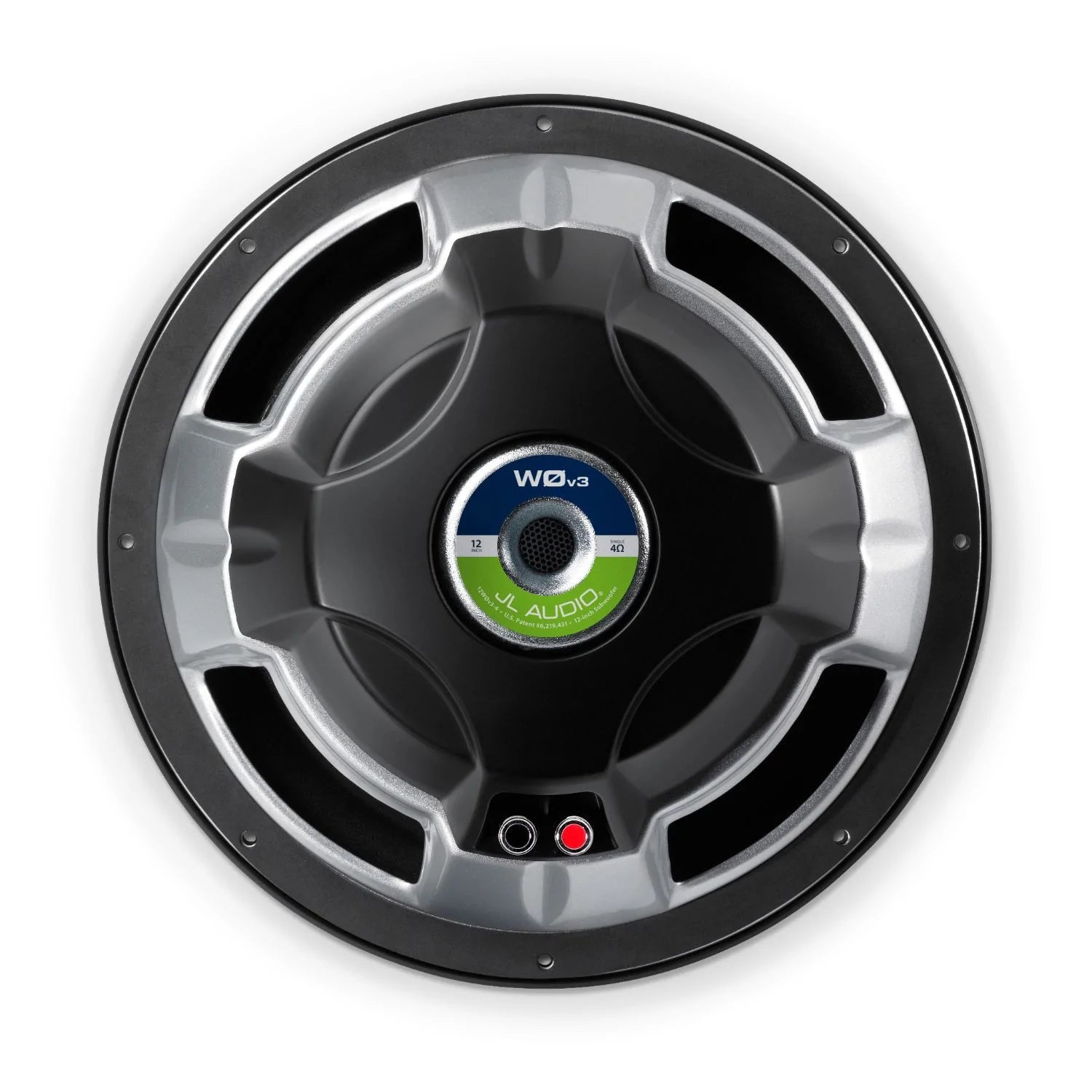

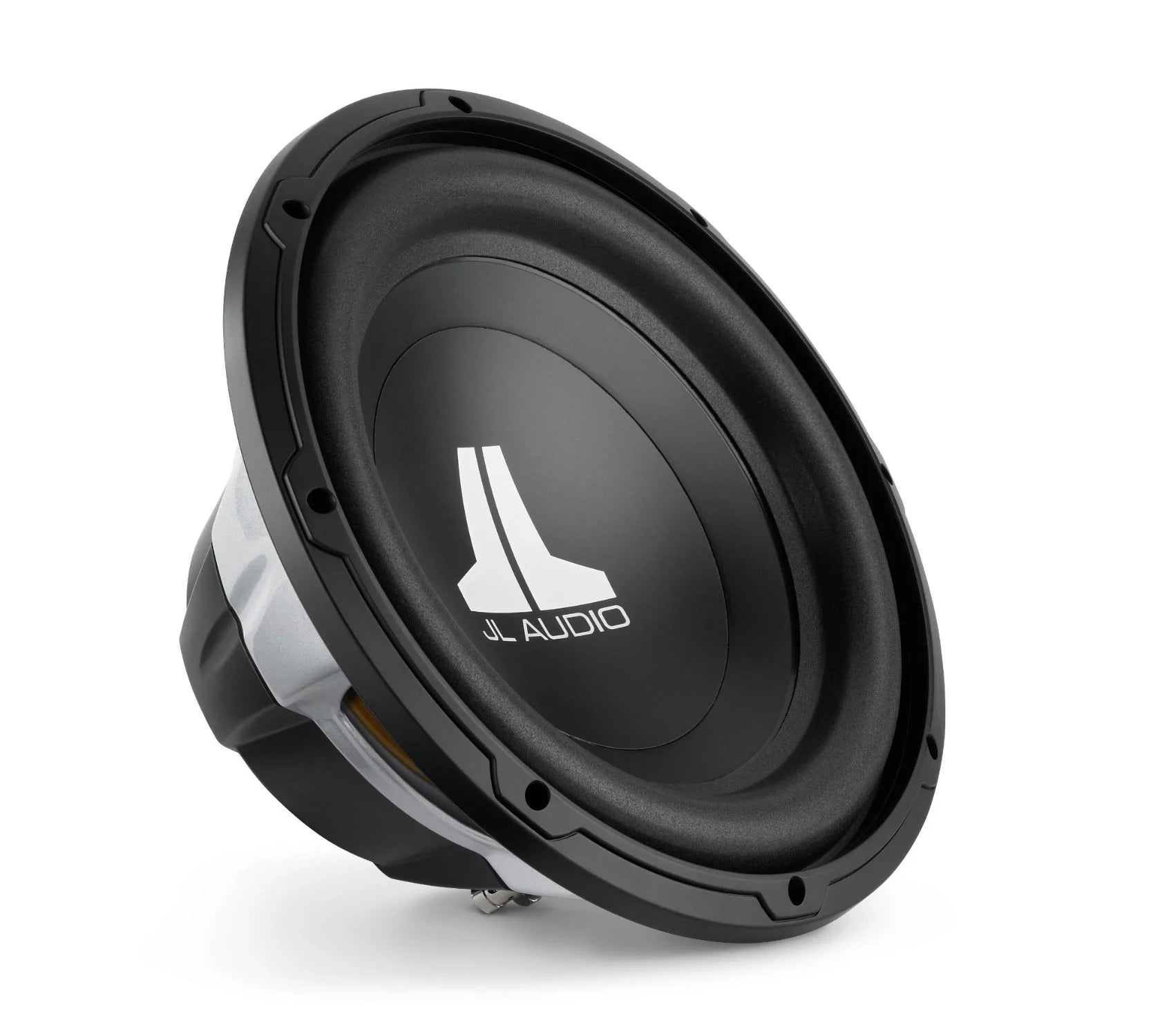

JL AUDIO 12W0v3-4

JL AUDIO

(12W0V3-4) 12-INCH SUBWOOFER DRIVER (300W, 4 OHM)

OVERVIEW:

• The 12W0v3 is a rugged performer with excellent efficiency, excursion capability and linearity. Its overall performance envelope that puts it right at the top of its price class. It features a beefy 2 in. diameter voice coil and our patented Elevated Frame Cooling design for enhanced power handling and reliability.
• The 12W0v3 is best used with amplifier power in the 75W - 300W range and is optimized to operate in a moderately sized 1.375 cu. ft. (38.9 l) sealed enclosure, or a 1.75 cu. ft. (49.6 l) ported enclosure. Detailed enclosure recommendations can be found in the "Specifications" tab.

GENERAL SPECIFICATIONS:

• Continuous Power Handling (RMS) : 300 W
• Recommended Amplifier Power (RMS) : 75 - 300 W
• Nominal Impedance (Znom) : 4 Ω

PHYSICAL SPECIFICATIONS:

• Nominal Diameter : 12.0 in / 300 mm
• Overall Diameter (A) : 12.5 in / 318 mm
• Mounting Hole Diameter (B) : 11.0625 in / 281 mm
• Bolt Hole Circle Diameter (C) : 11.7 in / 297 mm
• Motor Outer Diameter (D) : 5.05 in / 128 mm
• Mounting Depth (E) : 5.40 in / 137 mm
• Driver Displacement : 0.048 cu ft / 1.36 L
• Net Weight : 8.11 lb / 3.68 kg

PARAMETERS:

• Free Air Resonance (Fs) : 28.43 Hz
• Electrical “Q” (Qes) : 0.715
• Mechanical “Q” (Qms) : 10.709
• Total Speaker “Q” (Qts) : 0.67
• Equivalent Compliance (Vas) : 2.844 cu ft / 80.54 L
• One-Way Linear Excursion (Xmax)* : 0.45 in / 11.4 mm
• Reference Efficiency (no) : 0.22%
• Efficiency (1 W / 1 m)** : 85.64 dB SPL
• Effective Piston Area (Sd) : 74.509 sq in / 0.0481 sq m
• DC Resistance (Re) : 4.280 Ω

* Xmax specifications are derived via one-way voice coil overhang method with no correction factors applied.
** Efficiency (1 W / 1 m) is not an accurate indicator of a subwoofer’s output capability and should not be used as a comparison to other subwoofers to determine which one is “louder”.

SEALED ENCLOSURE SPECIFICATIONS:

• Wall Thickness : 0.75 in / 19 mm
• Front Baffle Thickness : 0.75 in / 19 mm
• Volume (net int.) : 1.375 cu ft / 38.94 L
• External Width (W) : 16 in / 406 mm
• External Height (H) : 19 in / 483 mm
• External Depth (D) : 11.75 in / 298 mm
• F3 : 36.0 Hz
• FC : 47.91 Hz
• Qtc : 1.179

PORTED ENCLOSURE SPECIFICATIONS:

• Wall Thickness : 0.75 in / 19 mm
• Front Baffle Thickness : 0.75 in / 19 mm
• Volume (net int.) : 1.75 cu ft / 49.6 L
• External Width (W) : 17.5 in / 445 mm
• External Height (H) : 14.75 in / 375 mm
• External Depth (D) : 16.25 in / 413 mm
• Internal Port Diameter (ID) : 3 in / 76 mm
• Port Length (L) : 14 in / 356 mm
• Tuning Frequency (Fb) : 26 Hz
• F3 : 30.8 Hz

In-Store Purchase only

SKU # 92166
