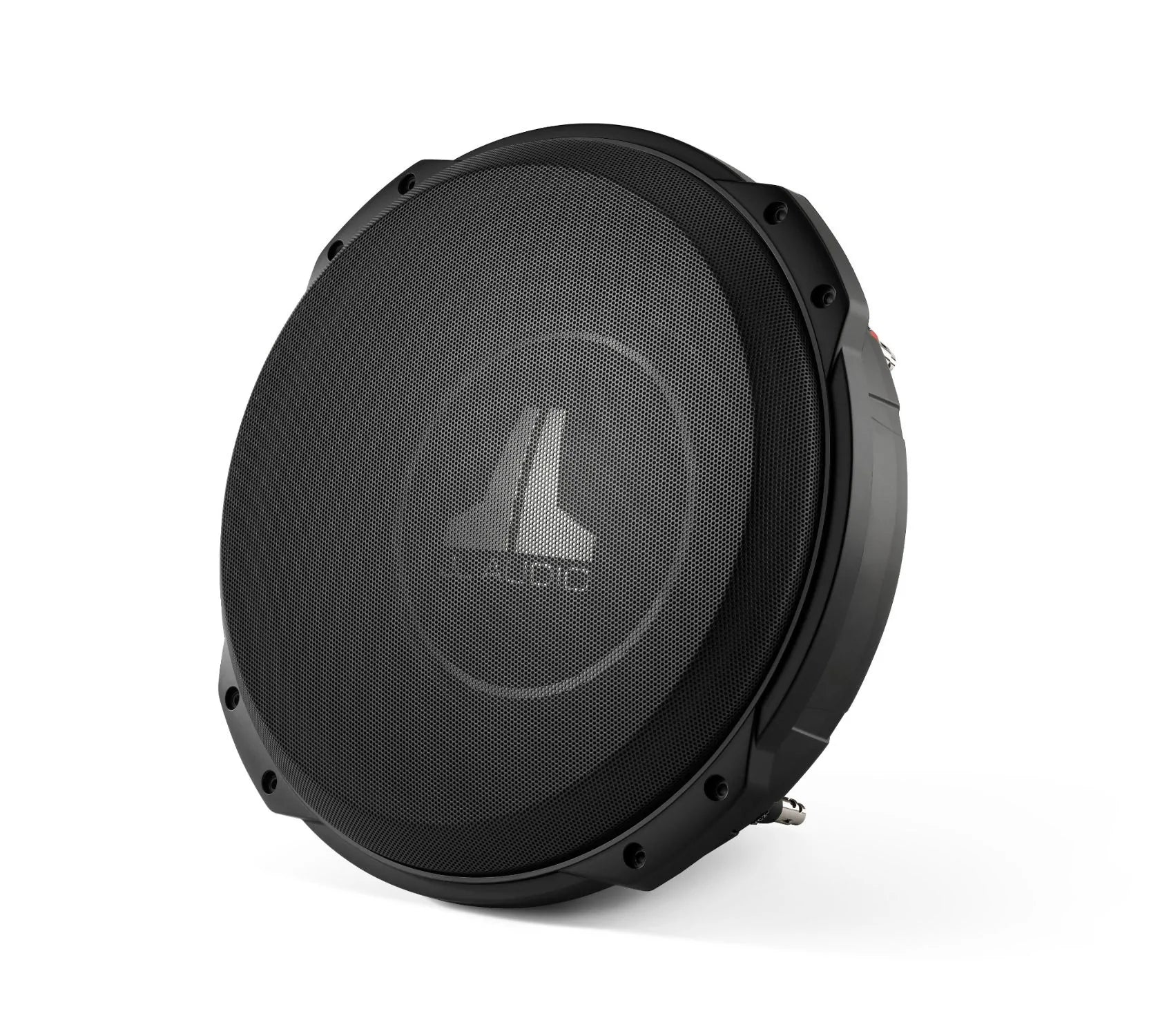

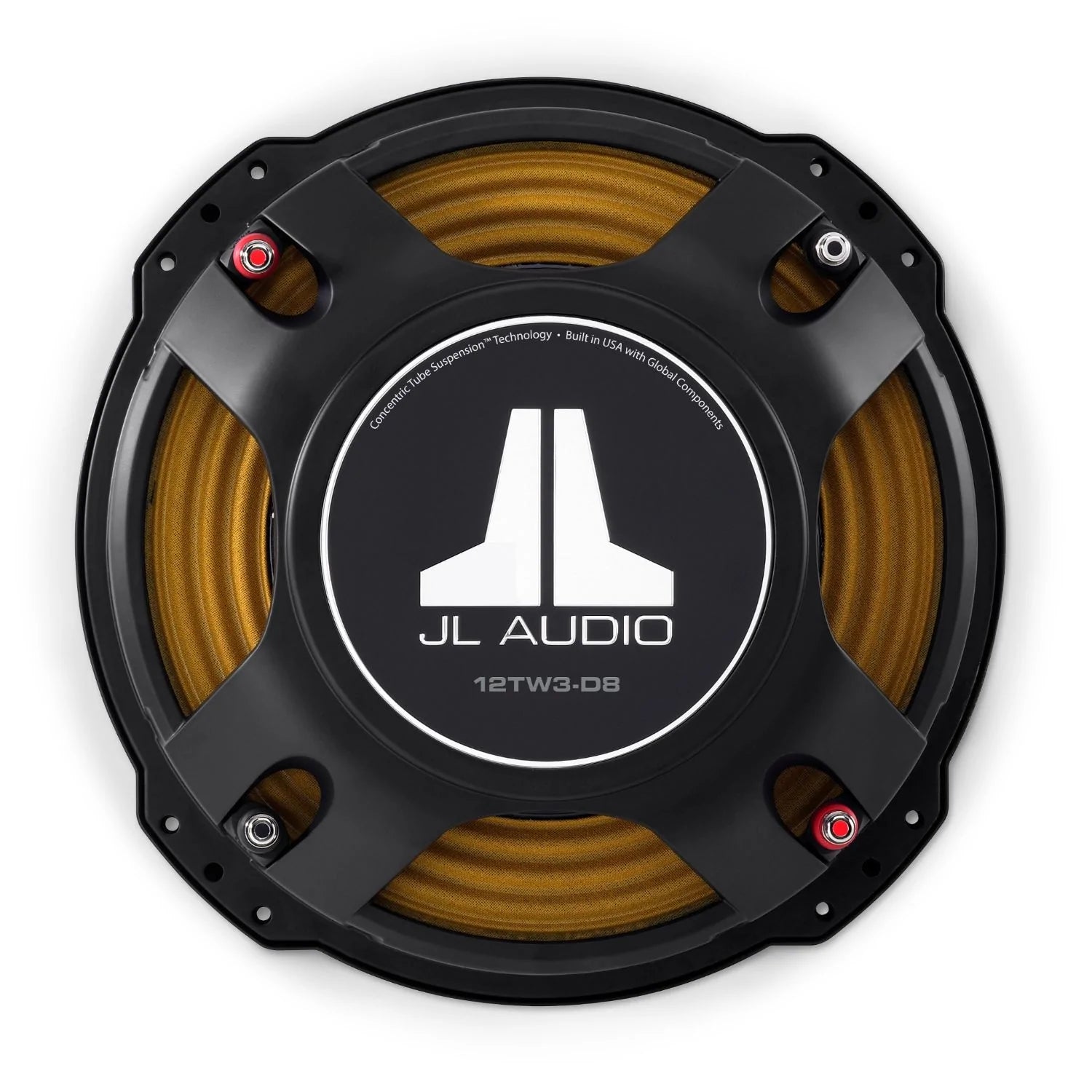

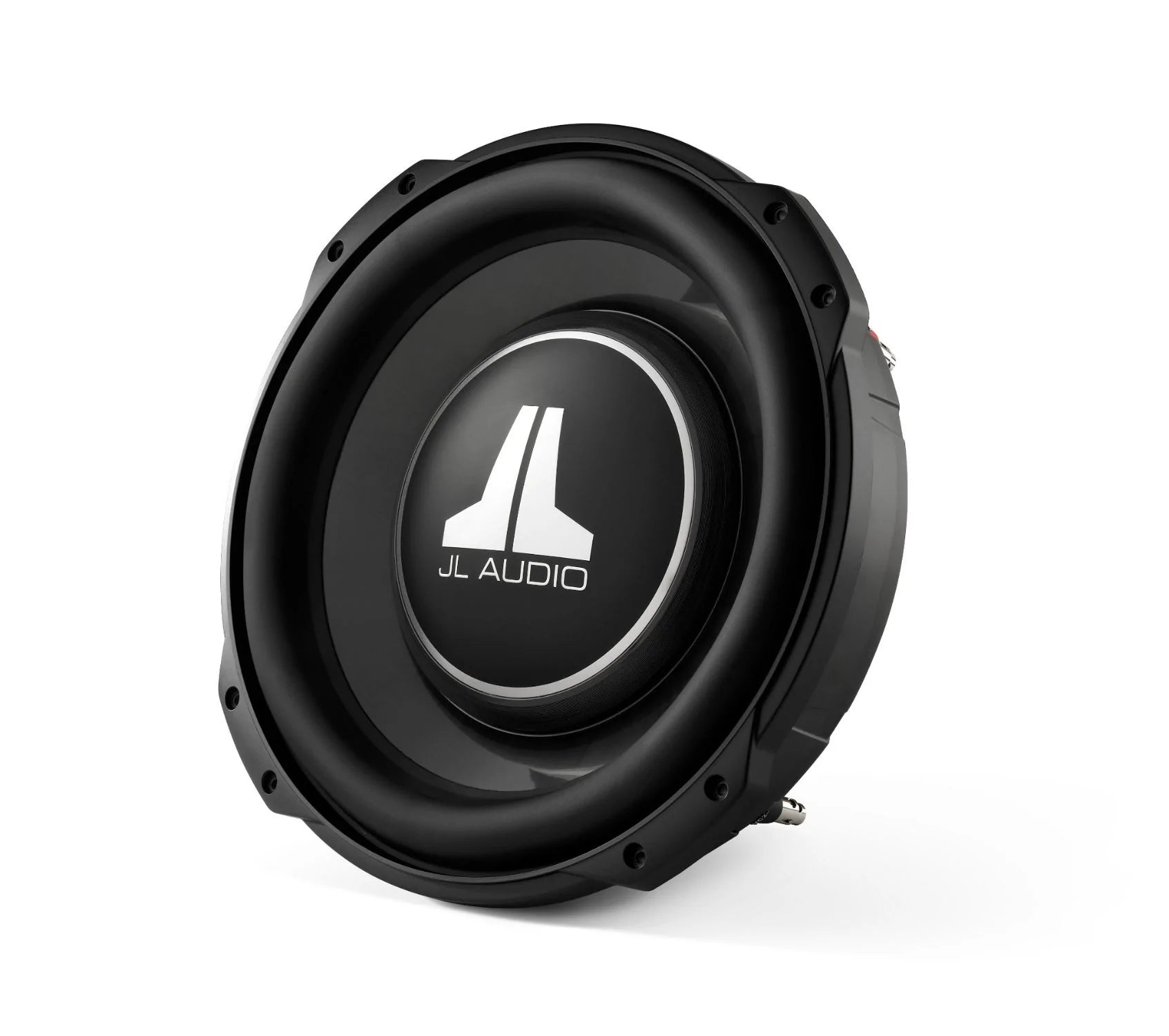

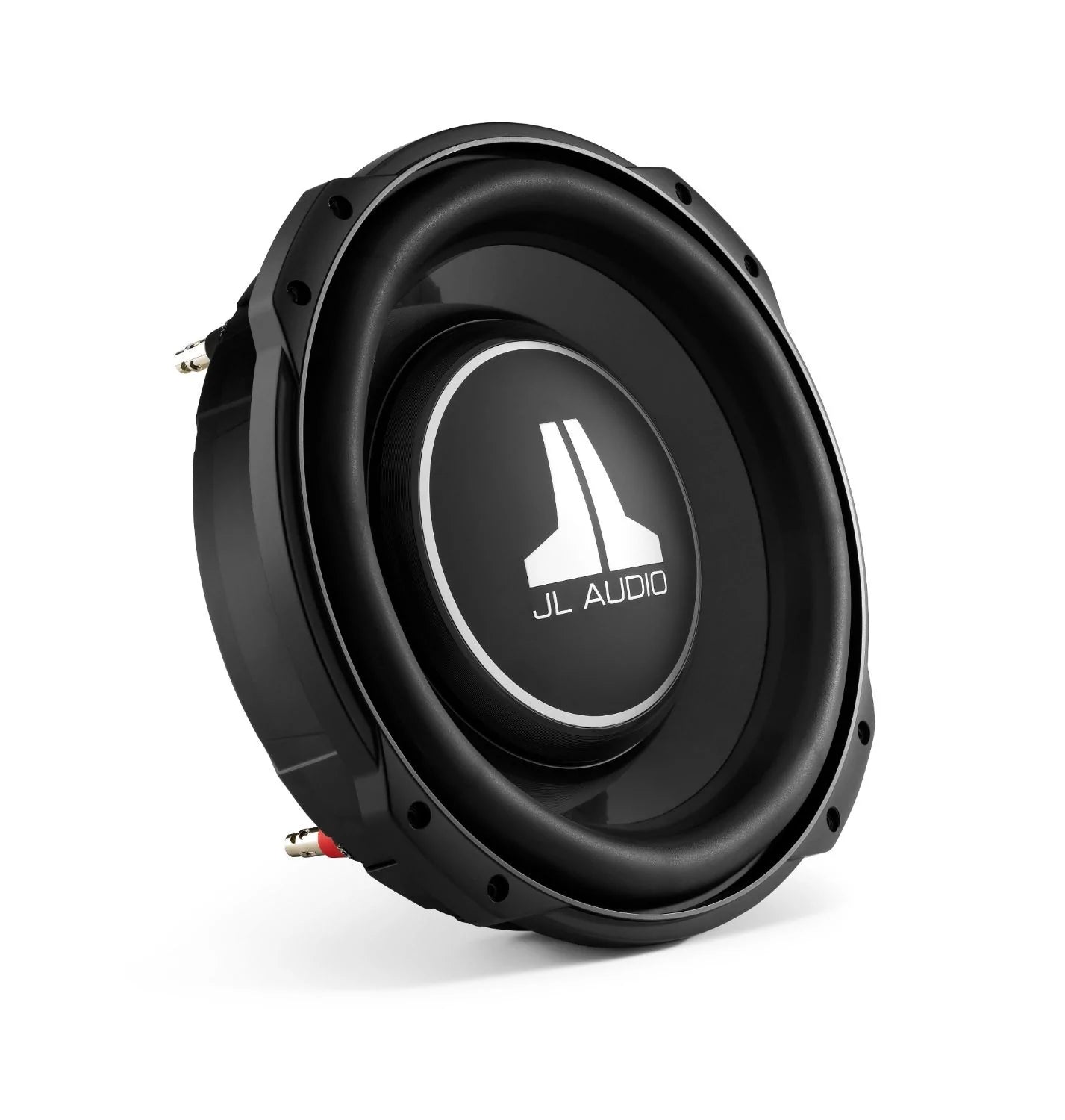

(12TW3-D8) 12-INCH THIN-LINE SUBWOOFER DRIVER (400W, DUAL 8 OHM VOICE COILS)

OVERVIEW:

• Building on the core technology of our TW5 thin-line subwoofers, the TW3’s deliver a powerful combination of shallow mounting depth and excursion capability. In fact, they are capable of greater excursion than the W3v3’s.

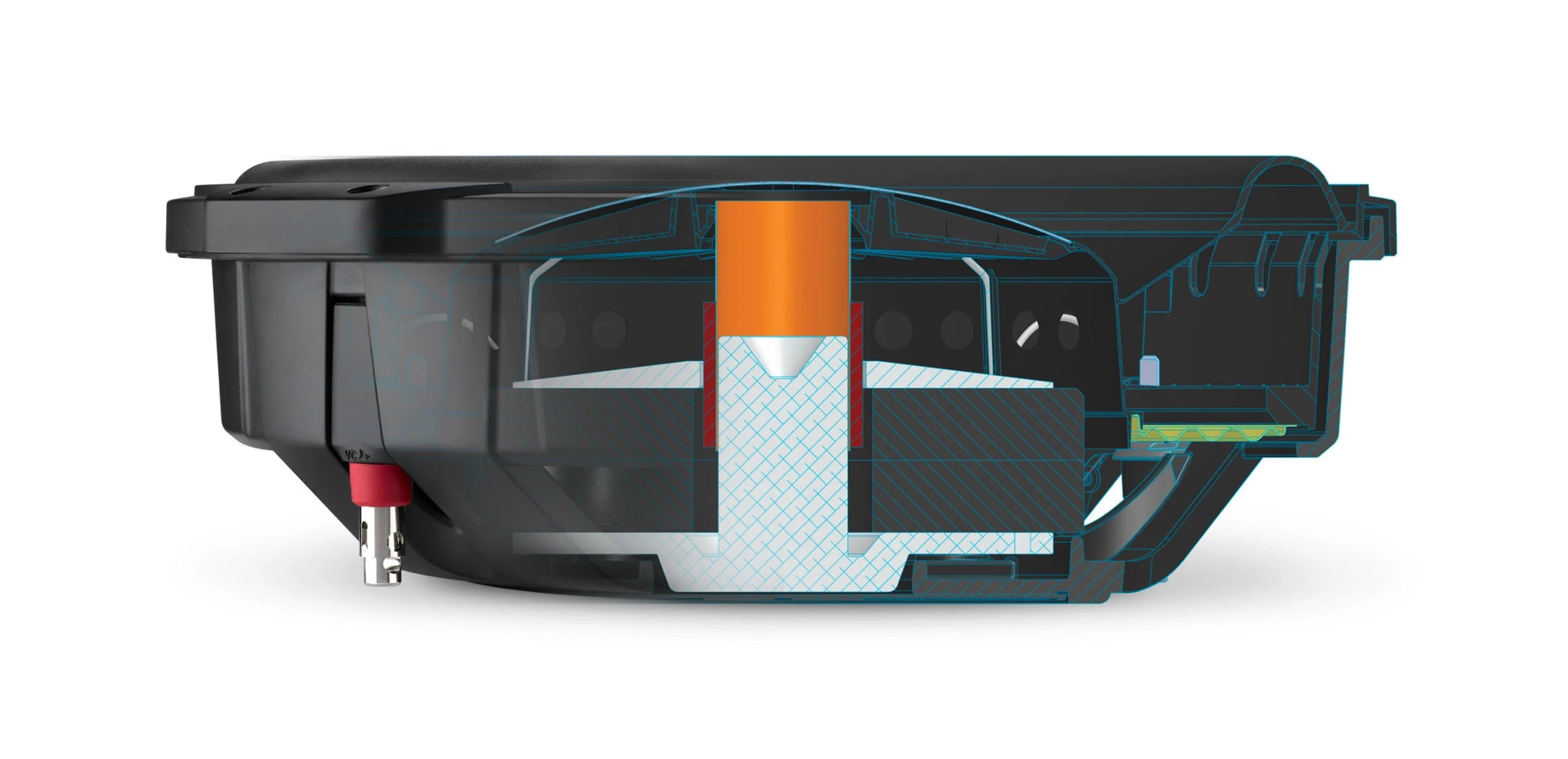

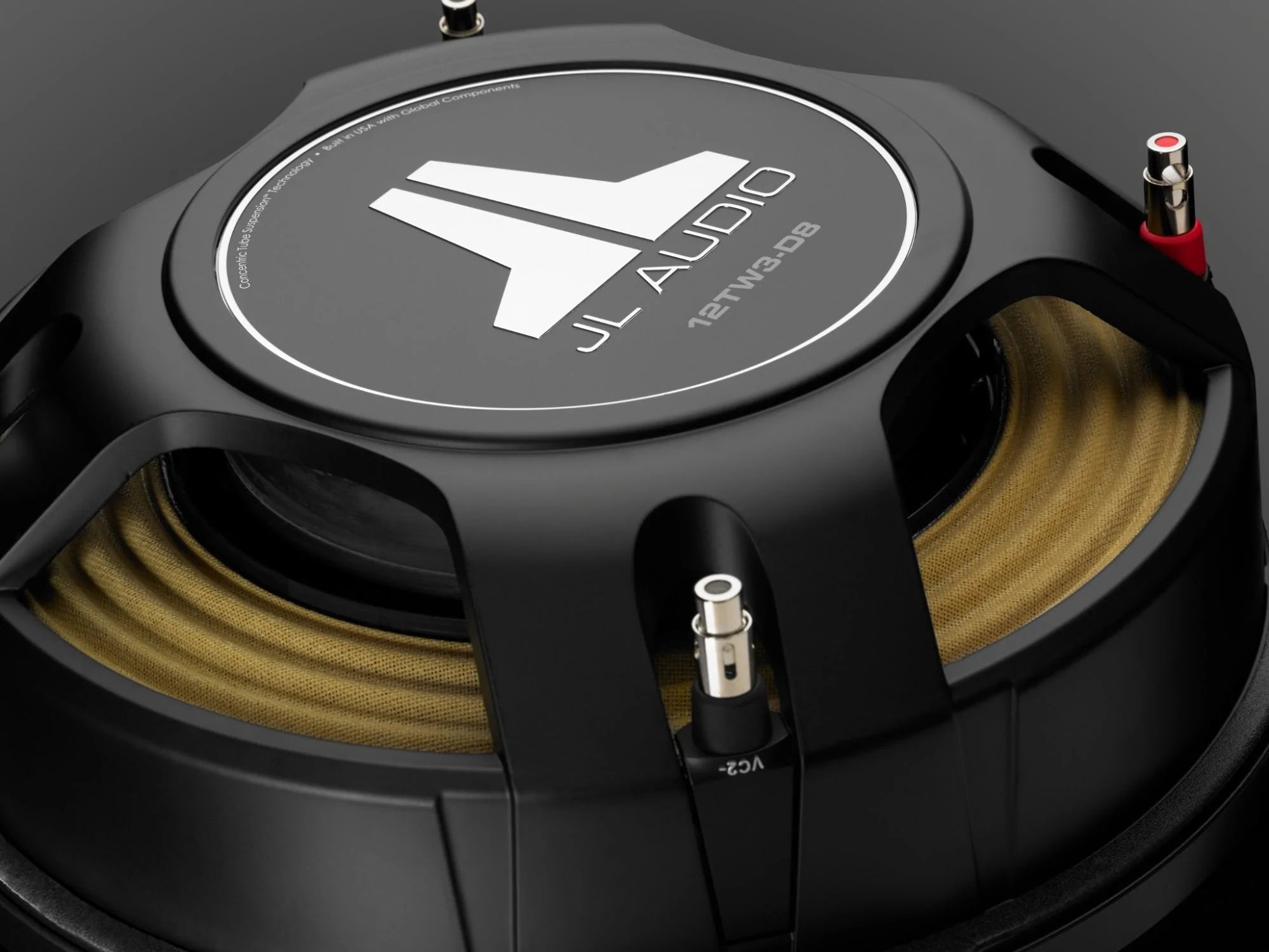

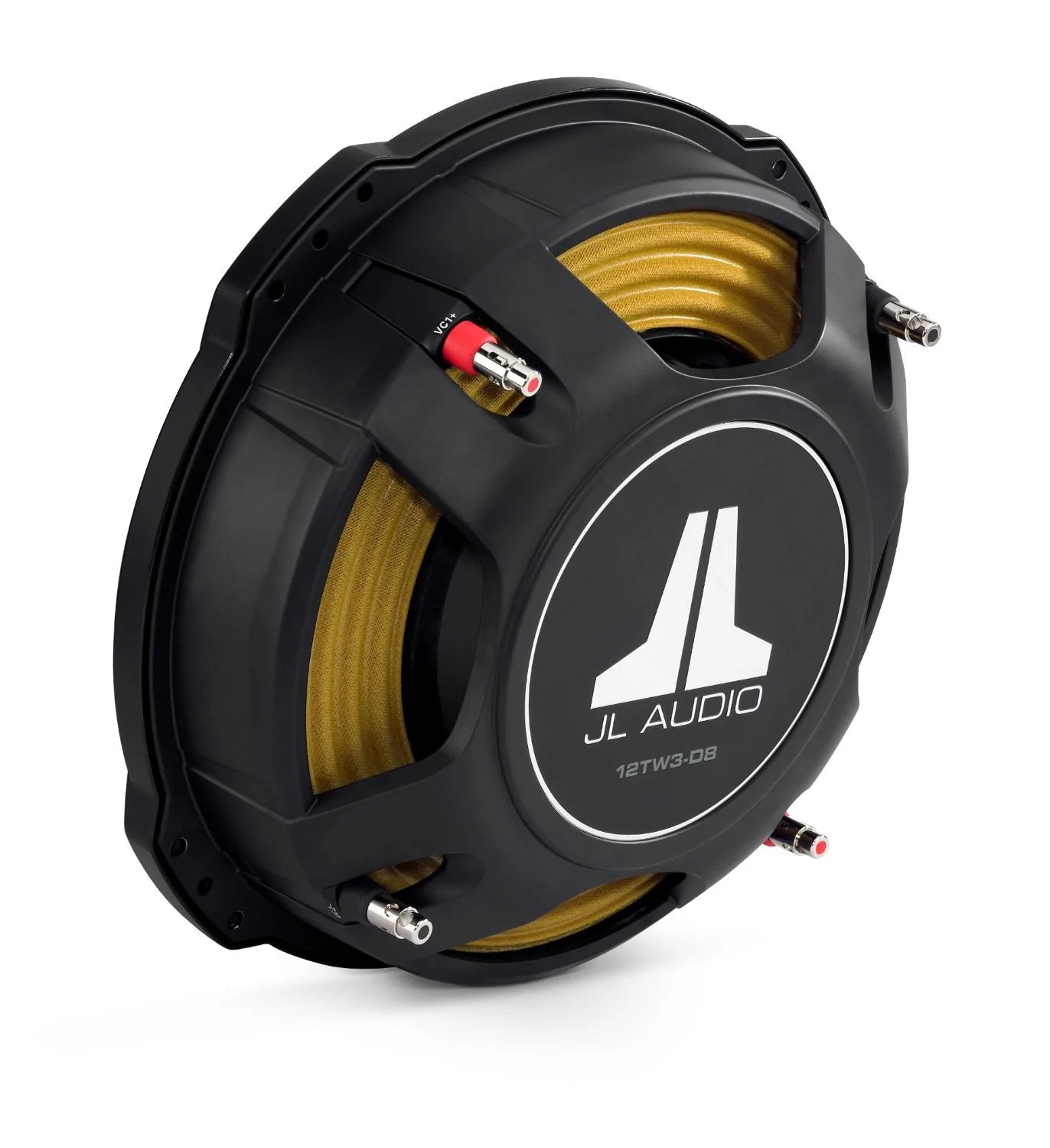

• To allow this remarkable feat to be achieved, JL Audio’s patented thin-line woofer technology compresses the architecture of the TW3’s using a “concentric tube” structure built into the injection-molded cone body. This structure supports the voice coil and a full annular spider, while permitting the placement of the large motor structure further forward in the speaker than with conventional designs.

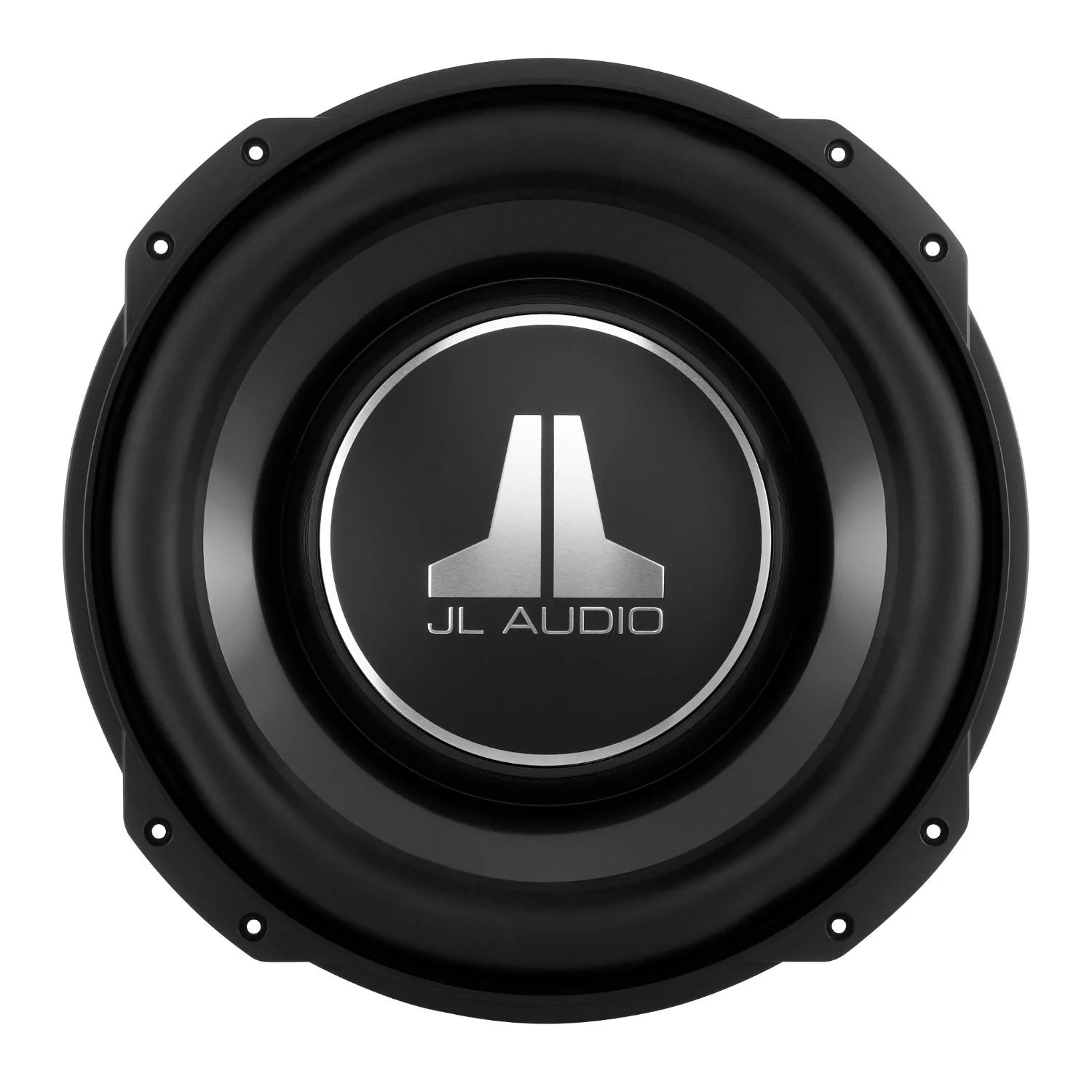

• TW3’s are optimized for small enclosures and offer our tab-ear mounting design to maximize cone area within their mounting footprints. We know you’re going to love working with these amazing Subwoofers.
• Deep, powerful and accurate JL Audio bass is now possible in more applications than ever.

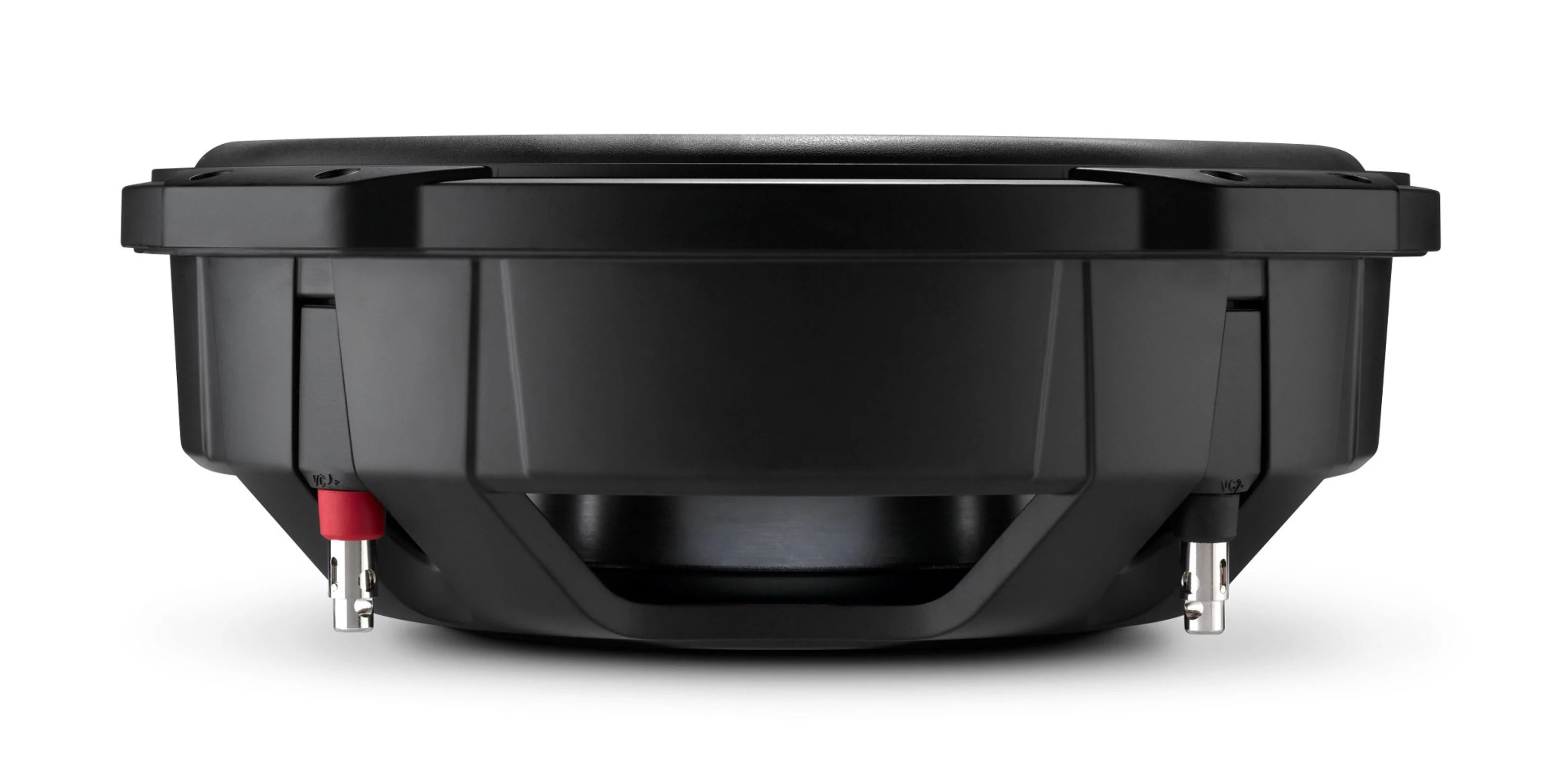

• Very shallow mounting depth (3.25 / 3.50 Inches)
• No pole vent: permits mounting close to rear wall of enclosure.
• Very small sealed enclosure volume requirements
• Very long linear excursion capability (0.60 In / 15.2 mm, one-way)
• DMA-optimized motor designs
• “concentric tube” architecture
• Patented “floating cone attach method” technology
• Cast alloy frame
• Injection molded, mica-filled polypropylene cone
• Rubber surround
• Aluminum-alloy dust cap and rear cap with JL Audio logo
• Precision-built in USA at JL Audio’s Miramar, Florida factory with global components

GENERAL SPECIFICATIONS:

• Continuous Power Handling (RMS) : 400 W
• Recommended Amplifier Power (RMS) : 200 - 400 W
• Nominal Impedance (Znom) : Dual 8 Ω

PHYSICAL SPECIFICATIONS:

• Nominal Diameter : 12 in / 300 mm
• Overall Diameter (A) : A1: 13.2 in / 335 mm, A2: 12.5 in / 318 mm
• Mounting Hole Diameter (B) : 11.625 in / 295 mm
• Bolt Hole Circle Diameter (C) : 12.5 in / 318 mm
• Motor Outer Diameter (D) : 6.125 in / 156 mm
• Mounting Depth (E) : 3.5 in / 89 mm
• Driver Displacement : 0.029 cu ft / 0.82 L
• Net Weight : 14.9 lb / 6.8 kg

PARAMETERS:

• Free Air Resonance (Fs) : 32.660 Hz
• Electrical “Q” (Qes) : 0.715
• Mechanical “Q” (Qms) : 10.071
• Total Speaker “Q” (Qts) : 0.668
• Equivalent Compliance (Vas) : 1.205 cu ft / 34.12 L
• One-Way Linear Excursion (Xmax)* : 0.6 in / 15.2 mm
• Reference Efficiency (no) :-
• Efficiency (1 W / 1 m)** : 84.23 dB SPL
• Effective Piston Area (Sd) : 83.517 sq in / 0.0539 sq m
• DC Resistance (Re) : 14.800 Ω

* Xmax specifications are derived via one-way voice coil overhang method with no correction factors applied.
** For parallel-wired voice coils, divide "Re" by 4. All other specifications remain the same.
*** Re (DC resistance) is measured with the voice coils in series, for parallel-wired specification divide Re by 4. All other specifications remain the same.

SEALED ENCLOSURE SPECIFICATIONS:

• Wall Thickness : 0.75 in / 19 mm
• Front Baffle Thickness : 0.75 in / 19 mm
• Volume (net int.) : 1.00 cu ft / 28.3 L
• External Width (W) : 25 in / 635 mm
• External Height (H) : 16.625 in / 422 mm
• External Depth (D) : 6.5 in / 165 mm
• F3 : 38.27 Hz
• FC : 48.50 Hz
• Qtc : 0.9919

PORTED ENCLOSURE SPECIFICATIONS:

• Wall Thickness : 0.75 in / 19 mm
• Front Baffle Thickness : 0.75 in / 19 mm
• Volume (net int.) : 1.3 cu ft / 36.8 L
• External Width (W) : 34 in / 864 mm
• External Height (H) : 17 in / 432 mm
• External Depth (D) : 6.75 in / 171 mm
• Internal Slot Port Width (SW) : 5.25 in / 133 mm
• Internal Slot Port Height (SH) : 2.375 in / 60 mm
• Internal Slot Port Length (SL) : 24 in / 610 mm
• Port Extension Length (EL) : 22.0625 in / 560 mm
• Tuning Frequency (Fb) : 29.79 Hz
• F3 : 32 Hz
