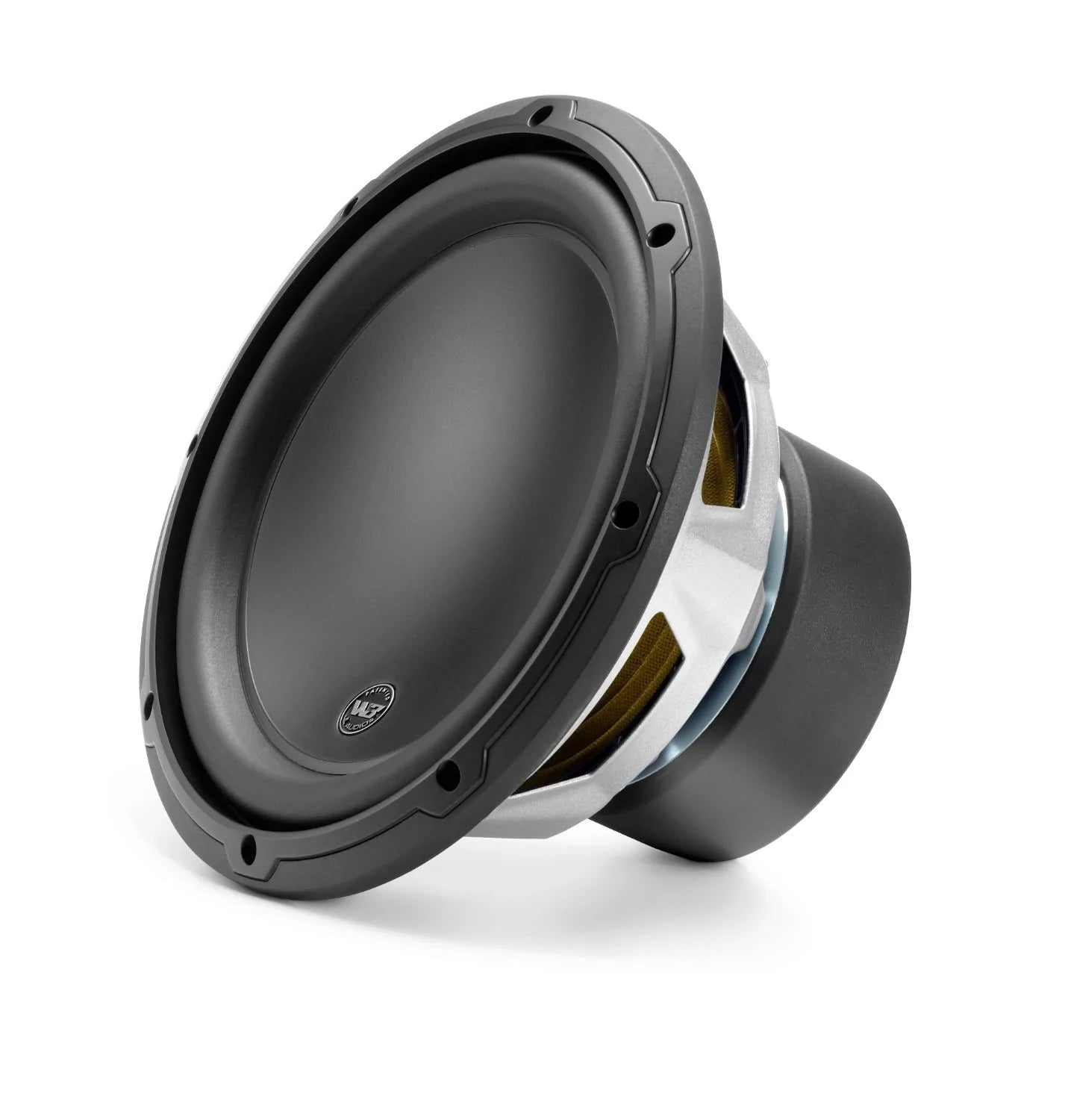

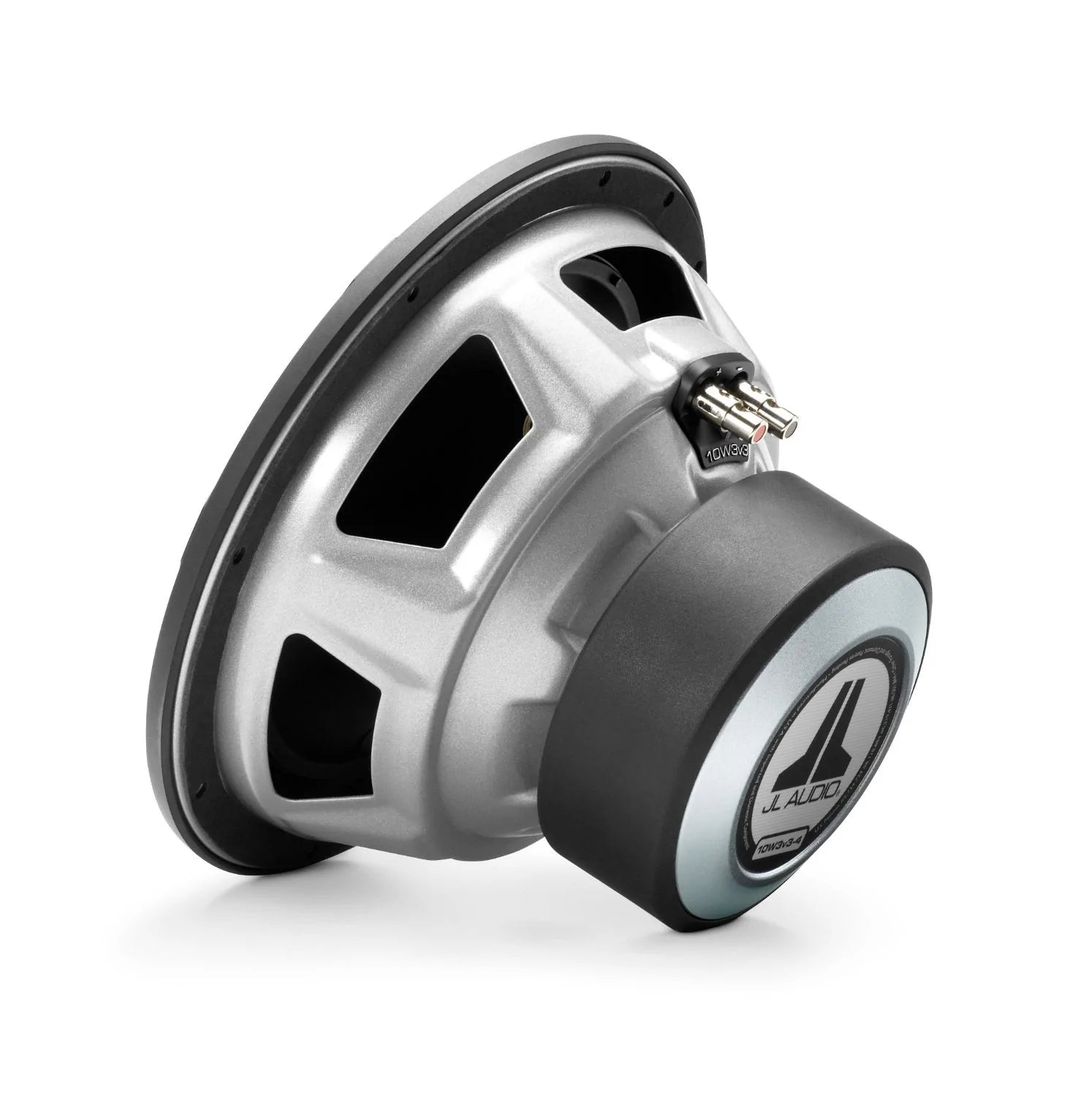

JL AUDIO 10W3v3-2

JL AUDIO

(10W3V3-2) 10-INCH SUBWOOFER DRIVER (500W, 2 OHM)

OVERVIEW:

• This acclaimed Subwoofer strikes an outstanding balance in power handling, enclosure requirements and excursion to deliver excellent results in medium power applications. Several exclusive JL Audio technologies and proprietary assembly techniques are applied to the 10W3v3 to enhance linearity and reliability.
• The 10W3v3-4 is best used with amplifier power in the 150W - 500W range and is optimized to operate in a compact 0.625 cu. ft. (17.7 l) sealed enclosure, or a 1.125 cu. ft. (31.9 l) ported enclosure. Detailed enclosure recommendations can be found in the "Specifications" tab.

GENERAL SPECIFICATIONS:

• Continuous Power Handling (RMS) : 500 W
• Recommended Amplifier Power (RMS) : 150 - 500 W
• Nominal Impedance (Znom) : 4 Ω

PHYSICAL SPECIFICATIONS:

• Nominal Diameter : 10.0 in / 250 mm
• Overall Diameter (A) : 10.0 in / 250 mm
• Mounting Hole Diameter (B) : 9.0625 in / 230 mm
• Bolt Hole Circle Diameter (C) : 9.7 in / 246.5 mm
• Motor Outer Diameter (D) : 5.25 in / 133 mm
• Mounting Depth (E) : 5.93 in / 151 mm
• Driver Displacement : 0.049 cu ft / 1.39 L
• Net Weight : 12.25 lb / 5.56 kg

PARAMETERS:

• Free Air Resonance (Fs) : 31.49 Hz
• Electrical “Q” (Qes) : 0.523
• Mechanical “Q” (Qms) : 7.017
• Total Speaker “Q” (Qts) : 0.485
• Equivalent Compliance (Vas) : 1.138 cu ft / 32.23 liters
• One-Way Linear Excursion (Xmax)* : 0.550 in / 14.0 mm
• Reference Efficiency (no) : 0.19%
• Efficiency (1 W / 1 m)** : 84.87 dB SPL
• Effective Piston Area (Sd) : 53.475 sq in / 0.0345 sq m
• DC Resistance (Re) : 3.567 Ω

* Xmax specifications are derived via one-way voice coil overhang method with no correction factors applied.
** Efficiency (1 W / 1 m) is not an accurate indicator of a subwoofer’s output capability and should not be used as a comparison to other subwoofers to determine which one is “louder”.

SEALED ENCLOSURE SPECIFICATIONS:

• Wall Thickness : 0.75 in / 19 mm
• Front Baffle Thickness : 0.75 in / 19 mm
• Volume (net int.) : 0.625 cu ft / 17.7 L
• External Width (W) : 17.875 in / 454 mm
• External Height (H) : 11 in / 279 mm
• External Depth (D) : 9 in / 229 mm
• F3 : 46.9 Hz
• FC : 52.9 Hz
• Qtc : 0.818

PORTED ENCLOSURE SPECIFICATIONS:

• Wall Thickness : 0.75 in / 19 mm
• Front Baffle Thickness : 0.75 in / 19 mm
• Volume (net int.) : 1.125 cu ft / 31.9 L
• External Width (W) : 23 in / 584 mm
• External Height (H) : 12 in / 305 mm
• External Depth (D) : 13 in / 330 mm
• Internal Slot Port Width (SW) : 1.25 in / 32 mm
• Internal Slot Port Height (SH) : 10.5 in / 267 mm
• Internal Slot Port Length (SL) : 28.625 in / 727 mm
• Port Extension Length (EL) : 31.8 Hz
• Tuning Frequency (Fb) : 31.8 Hz
• F3 : 31.7 Hz

In-Store Purchase only

SKU # 92150
