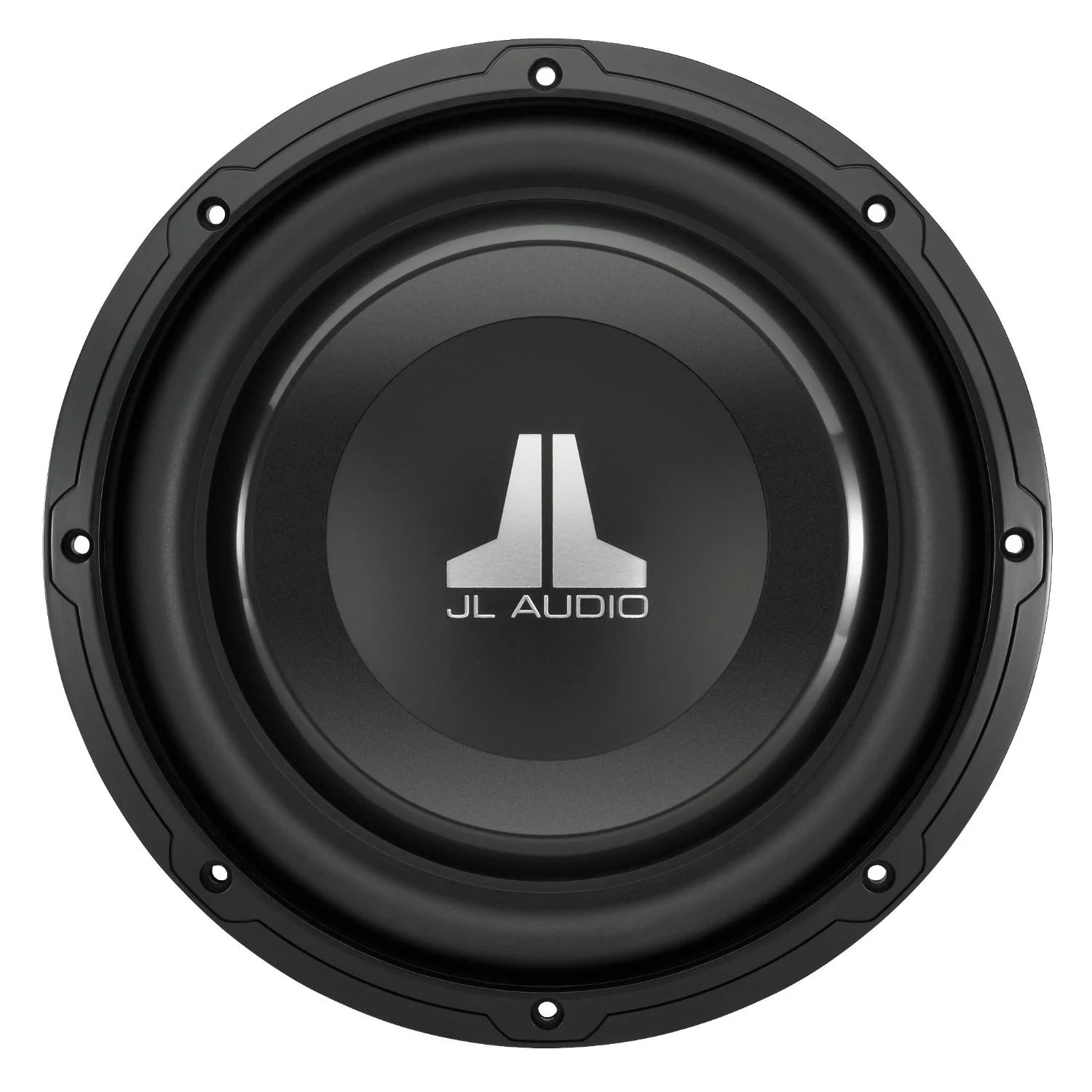

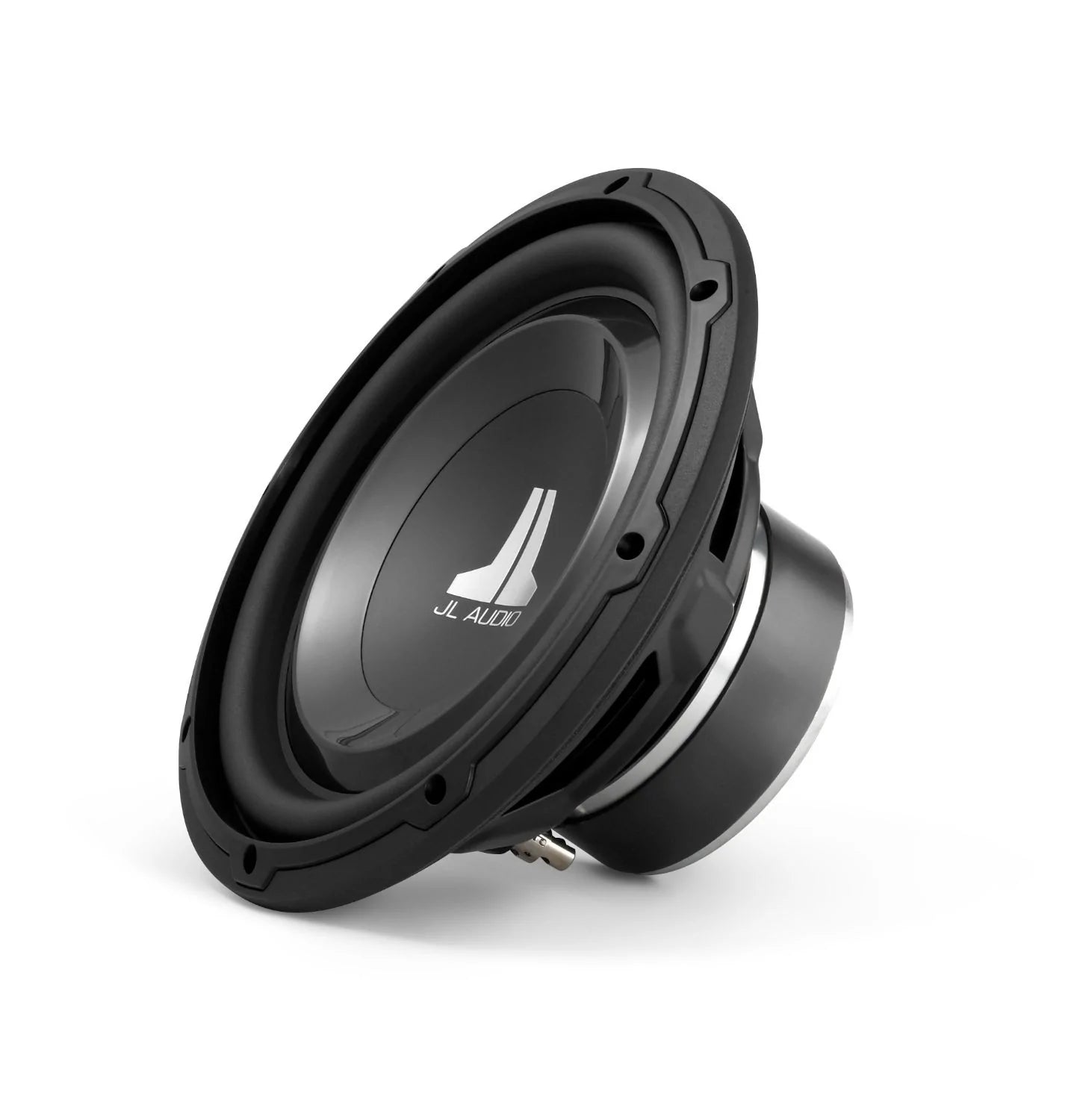

JL AUDIO 10W1v3-4

JL AUDIO

(10W1V3-4) 10-INCH SUBWOOFER DRIVER (300W, 4 OHM)

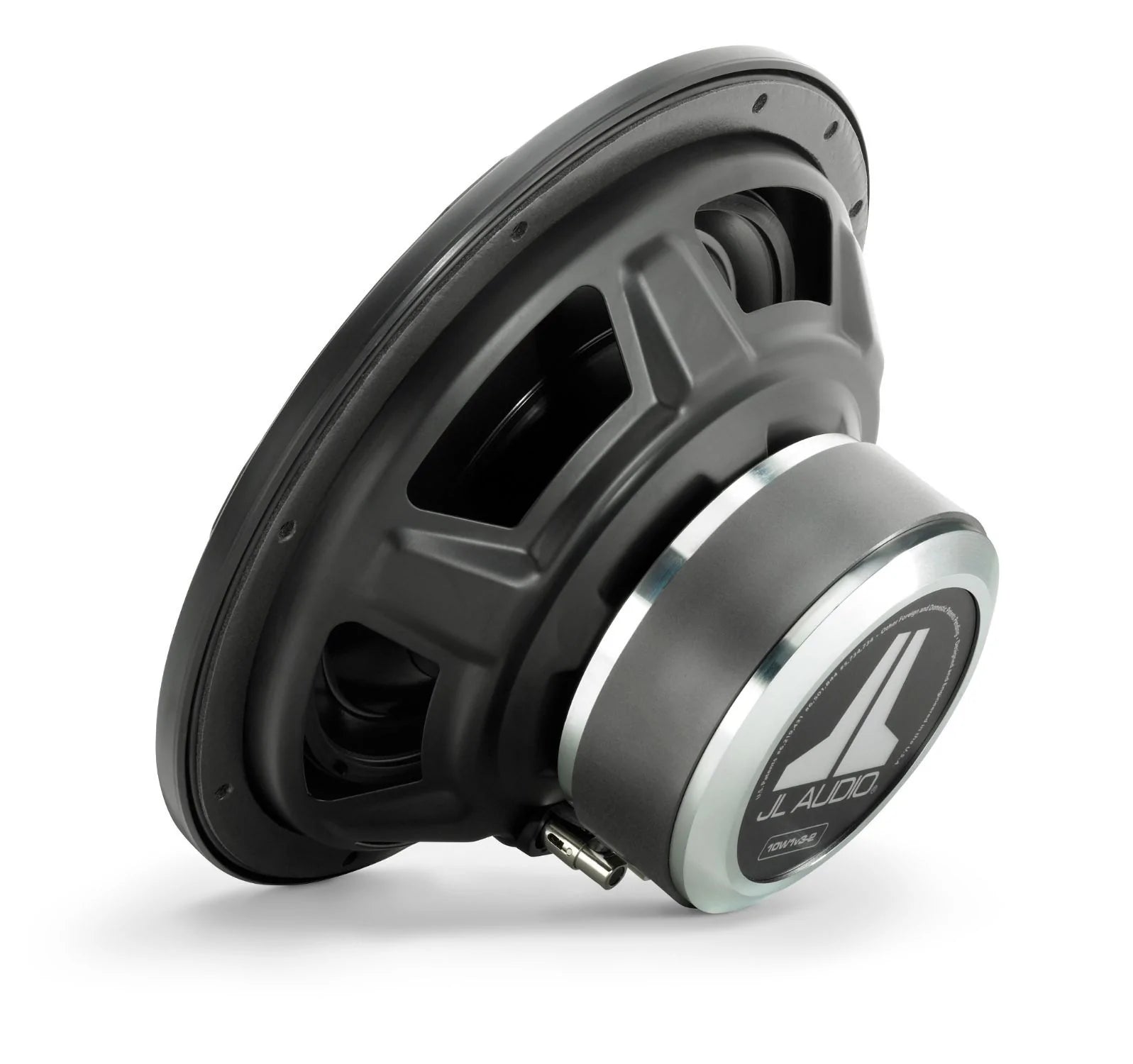

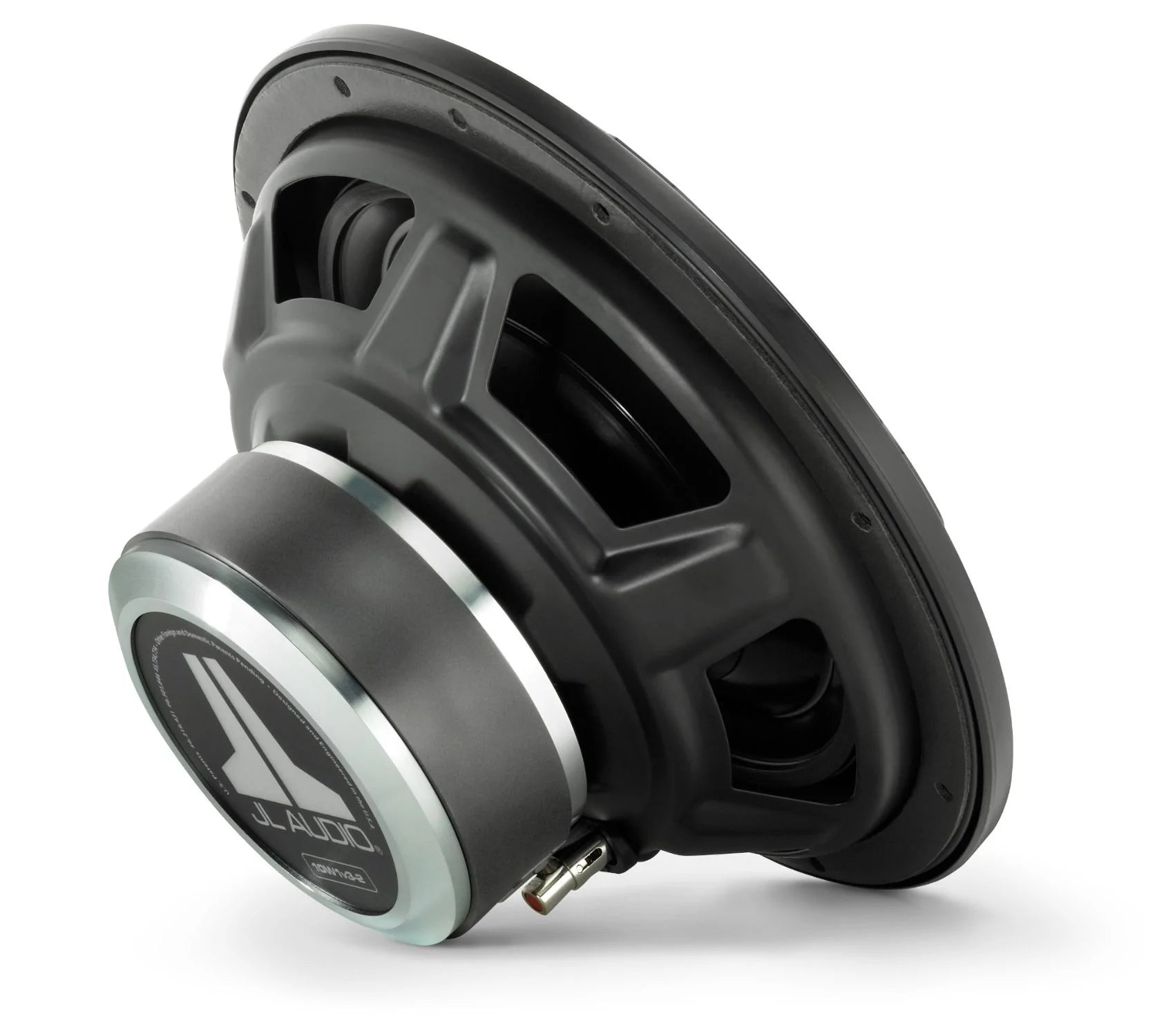

The 10W1v3 is an outstanding choice when space is very tight and amplifier power is moderate. It features shallow mounting depth (4.6 in. / 117 mm) and a compact motor structure, allowing it to comfortably fit in a lot of spaces where a typical 10-inch driver will not. Lacking a pole vent, the rear of the motor structure can be placed directly against an enclosure boundary.  Excellent excursion capability and linearity allow it to reproduce sub-bass with shocking extension and quality. Several of JL Audio's proprietary technologies enhance its performance and reliability.

The 10W1v3-4 is best used with amplifier power in the 75W - 300W range and is optimized to operate in a compact 0.55 cu. ft. (15.57 l) sealed enclosure. Detailed enclosure recommendations can be found in the "Specifications" tab.

GENERAL SPECIFICATIONS:

• Continuous Power Handling (RMS) : 300 W
• Recommended Amplifier Power (RMS) : 75 - 300 W
• Nominal Impedance (Znom) : 4 Ω

PHYSICAL SPECIFICATIONS:

• Nominal Diameter : 10.0 in / 250 mm
• Overall Diameter (A) : 10.5 in / 267 mm
• Mounting Hole Diameter (B) : 9.0625 in / 230 mm
• Bolt Hole Circle Diameter (C) : 9.7 in / 246 mm
• Motor Outer Diameter (D) : 4.92 in / 125 mm
• Mounting Depth (E) : 4.6 in / 117 mm
• Driver Displacement : 0.037 cu ft / 1.05 L
• Net Weight : 9.9 lb / 4.5 kg

PARAMETERS:

• Free Air Resonance (Fs) : 26.15 Hz
• Electrical “Q” (Qes) : 0.475
• Mechanical “Q” (Qms) : 7.243
• Total Speaker “Q” (Qts) : 0.446
• Equivalent Compliance (Vas) : 1.533 cu ft / 43.41 L
• One-Way Linear Excursion (Xmax)* : 0.45 in / 11 mm
• Reference Efficiency (no) : 0.16%
• Efficiency (1 W / 1 m)** : 84.2 dB SPL
• Effective Piston Area (Sd) : 53.584 sq in / 0.0346 sq m
• DC Resistance (Re) : 3.902 Ω

* Xmax specifications are derived via one-way voice coil overhang method with no correction factors applied.
** Efficiency (1 W / 1 m) is not an accurate indicator of a subwoofer’s output capability and should not be used as a comparison to other subwoofers to determine which one is “louder”.

SEALED ENCLOSURE SPECIFICATIONS:

• Wall Thickness : 0.75 in / 19 mm
• Front Baffle Thickness : 0.75 in / 19 m
• Volume (net int.) : 0.55 cu ft / 15.57 L
• External Width (W) : 16.5 in / 419 mm
• External Height (H) : 13.5 in / 343 mm
• External Depth (D) : 7 in / 178 mm
• F3 : 42.1 Hz
• FC : 50.9 Hz
• Qtc : 0.868

PORTED ENCLOSURE SPECIFICATIONS:

• Wall Thickness : 0.75 in / 19 mm
• Front Baffle Thickness : 0.75 in / 19 mm
• Volume (net int.) : 0.9 cu ft / 25.5 L
• External Width (W) : 17.0 in / 432 mm
• External Height (H) : 11.5 in / 292 mm
• External Depth (D) : 15.25 in / 387 mm
• Internal Slot Port Width (SW) : 1.125 in / 28.6 mm
• Internal Slot Port Height (SH) : 10.0 in / 254 mm
• Internal Slot Port Length (SL) : 30.1875 in / 767 mm
• Port Extension Length (EL) : 12.50 in / 318 mm
• Tuning Frequency (Fb) : 32.17 Hz
• F3 : 31.92 Hz

In-Store Purchase only

SKU # 92081
