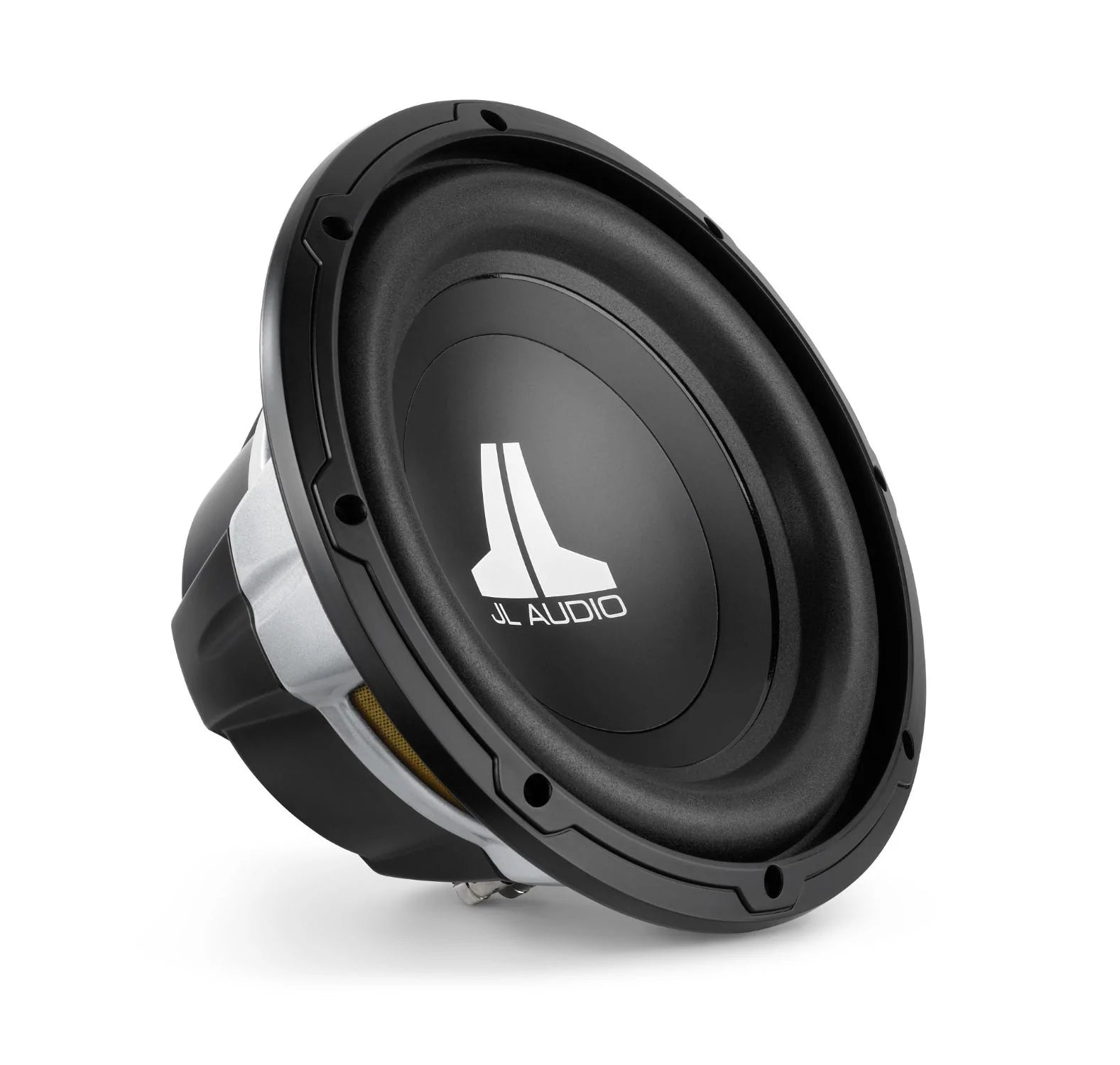

JL AUDIO 10W0v3-4

JL AUDIO

(10W0V3-4) 10-INCH SUBWOOFER DRIVER (300W, 4 OHM)

OVERVIEW:

• The 10W0v3 is a rugged performer with excellent excursion capability and linearity and an overall performance envelope that puts it right at the top of its price class. It features a beefy 2 in. diameter voice coil and our patented Elevated Frame Cooling design for enhanced power handling and reliability.
• The 10W0v3 is best used with amplifier power in the 75W - 300W range and is optimized to operate in a compact 0.65 cu. ft. (18.4 l) sealed enclosure, or a 1.125 cu. ft. (31.9 l) ported enclosure. Detailed enclosure recommendations can be found in the "Specifications" tab.

GENERAL SPECIFICATIONS:

• Continuous Power Handling (RMS) : 300 W
• Recommended Amplifier Power (RMS) : 75 - 300 W
• Nominal Impedance (Znom) : 4 Ω

PHYSICAL SPECIFICATIONS:

• Nominal Diameter : 10.0 in / 250 mm
• Overall Diameter (A) : 10.52 in / 267 mm
• Mounting Hole Diameter (B) : 9.0625 in / 230 mm
• Bolt Hole Circle Diameter (C) : 9.7 in / 246.5 mm
• Motor Outer Diameter (D) : 5.05 in / 128 mm
• Mounting Depth (E) : 4.90 in / 124 mm
• Driver Displacement : 0.034 cu ft / 0.96 L
• Net Weight : 7.50 lb / 3.40 kg

PARAMETERS:

• Free Air Resonance (Fs) : 32.09 Hz
• Electrical “Q” (Qes) : 0.64
• Mechanical “Q” (Qms) : 10.752
• Total Speaker “Q” (Qts) : 0.604
• Equivalent Compliance (Vas) : 1.095 cu ft / 31.01 L
• One-Way Linear Excursion (Xmax)* : 0.45 in / 11.4 mm
• Reference Efficiency (no) : 0.15%
• Efficiency (1 W / 1 m)** : 84.07 dB SPL
• Effective Piston Area (Sd) : 48.909 sq in / 0.0316 sq m
• DC Resistance (Re) : 4.280 Ω

* Xmax specifications are derived via one-way voice coil overhang method with no correction factors applied.
** Efficiency (1 W / 1 m) is not an accurate indicator of a subwoofer’s output capability and should not be used as a comparison to other subwoofers to determine which one is “louder”.

SEALED ENCLOSURE SPECIFICATIONS:

• Wall Thickness : 0.75 in / 19 mm
• Front Baffle Thickness : 0.75 in / 19 mm
• Volume (net int.) : 0.65 cu ft / 18.41 L
• External Width (W) : 18 in / 457 mm
• External Height (H) : 11 in / 279 mm
• External Depth (D) : 9 in / 229 mm
• F3 : 42.4 Hz
• FC : 53.23 Hz
• Qtc : 1.002

PORTED ENCLOSURE SPECIFICATIONS:

• Wall Thickness : 0.75 in / 19 mm
• Front Baffle Thickness : 0.75 in / 19 mm
• Volume (net int.) : 1.125 cu ft / 31.86 L
• External Width (W) : 23 in / 584 mm
• External Height (H) : 12 in / 305 mm
• External Depth (D) : 13.625 in / 346 mm
• Internal Slot Port Width (SW) : 1.25 in / 32 mm
• Internal Slot Port Height (SH) : 10.5 in / 267 mm
• Internal Slot Port Length (SL) : 32 in / 813 mm
• Port Extension Length (EL) : 18.25 in / 464 mm
• Tuning Frequency (Fb) : 30 Hz
• F3 : 29.6 Hz
